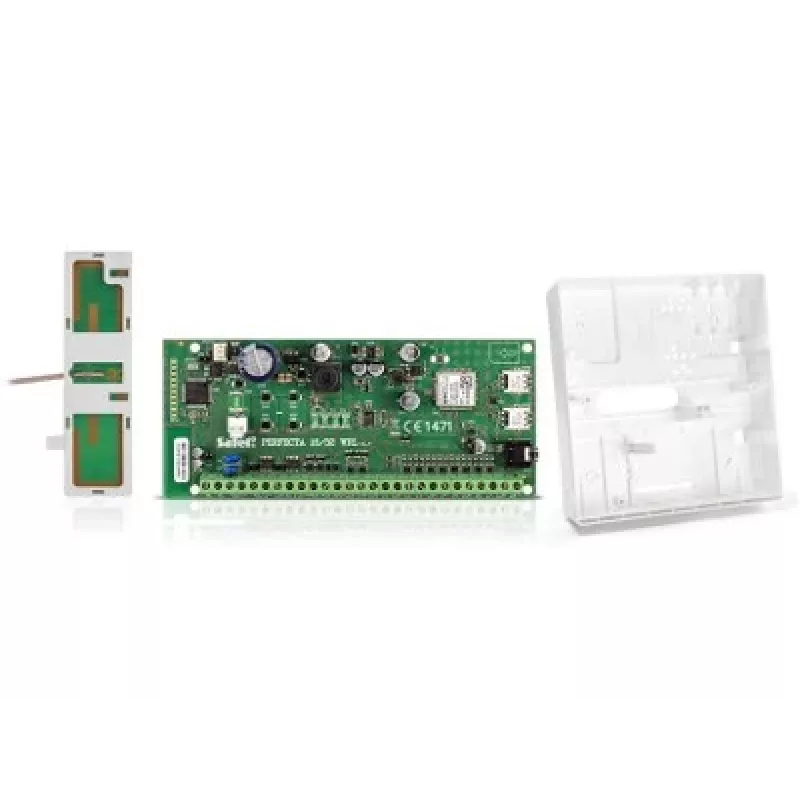

SATEL PERFECTA 32 SET-A Conjunto de central de alarme (placa principal, antena, caixa)

The SATEL PERFECTA 32 SET-A is an alarm control panel set consisting of a mainboard, antenna and housing. It is designed for protecting small and medium-sized premises such as apartments, houses, offices and small businesses, and complies with EN 50131 Grade 2. The system supports wired and wireless expansion, voice messaging and mobile app control.

Key features

• EN 50131 Grade 2 compliant
• 8 to 32 programmable wired inputs: configuration options NO, NC, EOL, 2EOL/NO, 2EOL/NC
• Supports roller shutter and vibration detectors
• 8 to 16 programmable wired outputs
• 2 power outputs on the mainboard
• Built-in GSM/GPRS module with 2 SIM slots (SMS, monitoring to station, mobile app, PUSH notifications)
• Built-in voice module (voice message playback for telephone notification)
• Built-in acoustic alarm verification (listening to sounds)
• System division into 2 zones: 3 armed modes per zone
• Input can be assigned to two zones
• Control by user or timers
• 15 users
• Control via Satel 433MHz remote controls (requires purchase and connection of INT-RX-S expander)

Specifications

• Brand: Satel
• Model: PERFECTA 32 SET-A
• Voice messages: 16
• Low-current programmable outputs load capacity: 25 / 12 V DC mA
• Event log: 3584
• Zones: 2
• Timers: 8
• Electronics board dimensions: 160 x 68 mm
• Operating temperature range: -10…+55 °C
• Supply voltage (±15%): 18 V AC, 50-60 Hz
• Standby current consumption: 150 mA
• Maximum current consumption: 180 mA
• Weight: 105 g
• Maximum humidity: 93±3%
• Battery standby current consumption: 100 mA
• Battery failure reporting voltage (±10%): 11.5 V
• Battery cut-off voltage (±10%): 10.5 V
• Environmental class according to EN50130-5: II
• Maximum battery current consumption: 160 mA
• Programmable wired inputs: 8
• Maximum number of programmable inputs: 32
• Programmable wired outputs: 4
• Maximum number of programmable outputs: 12
• Power outputs: 2
• Communication buses: 1
• Keypads: up to 4
• Security grade according to EN 50131: Grade 2
• AUX output load capacity: 500 mA / 12 V DC
• Recommended transformer: 40 VA
• Users: 15
• KPD output load capacity: 500 mA / 12 V DC
• High-current programmable outputs load capacity: 1000 / 12 V DC mA
• Output voltage range: 10.5 V…14 V DC
• Battery charging current: 500 mA
• Power supply output voltage: 12 V DC ±15%
• Telephone numbers for notification: 8
• Power supply output current: 2 A
