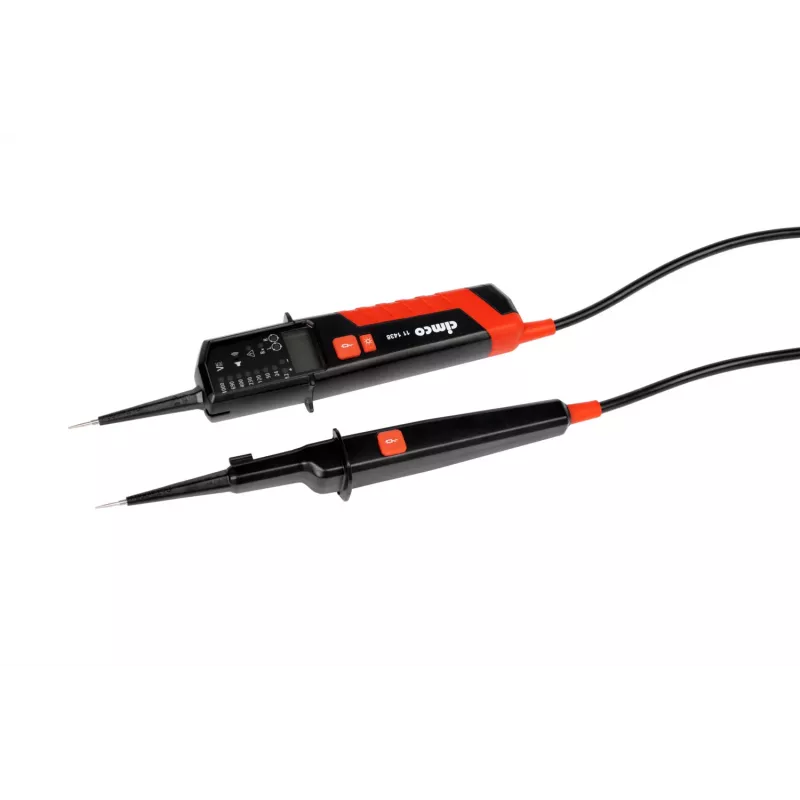

CIMCO 111438 Verificador de tensão bipolar CAT IV 600 V / CAT III 1000 V com indicador LED/LCD, teste de continuidade, sequência de fases, medição de resistência e frequência, IP64

Electrical work demands precise voltage verification without compromising safety. The CIMCO 111438 two-pole voltage tester delivers reliable AC/DC voltage detection from 6 to 1000 V, with CAT IV 600 V and CAT III 1000 V safety ratings for use on building installations and industrial circuits. Its dual display combines clear LED level indicators with an LCD for exact readings of voltage, resistance, and frequency.

Who is it for

Electricians, maintenance technicians, and field service professionals who need a robust, all-in-one tester for troubleshooting and verifying electrical systems in residential, commercial, and industrial environments.

Main features

• Two-pole voltage testing from 6 to 1000 V AC/DC
• LED level indication plus LCD for precise values
• Continuity test with optical and acoustic signal
• Resistance measurement up to 1999 Ω
• Frequency measurement up to 400 Hz
• Phase rotation test for three-phase systems
• Single-pole phase test for quick checks
• Integrated flashlight for dark work areas
• Vibration alarm for noisy environments
• Data hold function to freeze readings
• Self-test function to verify proper operation
• IP64 dust and splash protection
• Powered by 2 AAA batteries

Specifications

• Voltage range: 6 - 1000 V AC/DC
• Safety category: CAT IV 600 V / CAT III 1000 V
• Display: LED and LCD
• Continuity test: Yes (optical and acoustic)
• Resistance range: 0 - 1999 Ω
• Frequency range: 0 - 400 Hz
• Phase rotation test: Yes (two-pole)
• Single-pole phase test: Yes
• Ingress protection: IP64
• Power supply: 2x AAA batteries
• Flashlight: Yes
• Vibration alarm: Yes
• Data hold: Yes
• Standard compliance: EN 61243-3:2014

Tips

Always perform a self-test before and after each use to ensure the tester is functioning correctly. For phase rotation tests, connect both probes to the phases and follow the indicator to determine rotation direction. Replace batteries when the low battery indicator appears to maintain accuracy.
