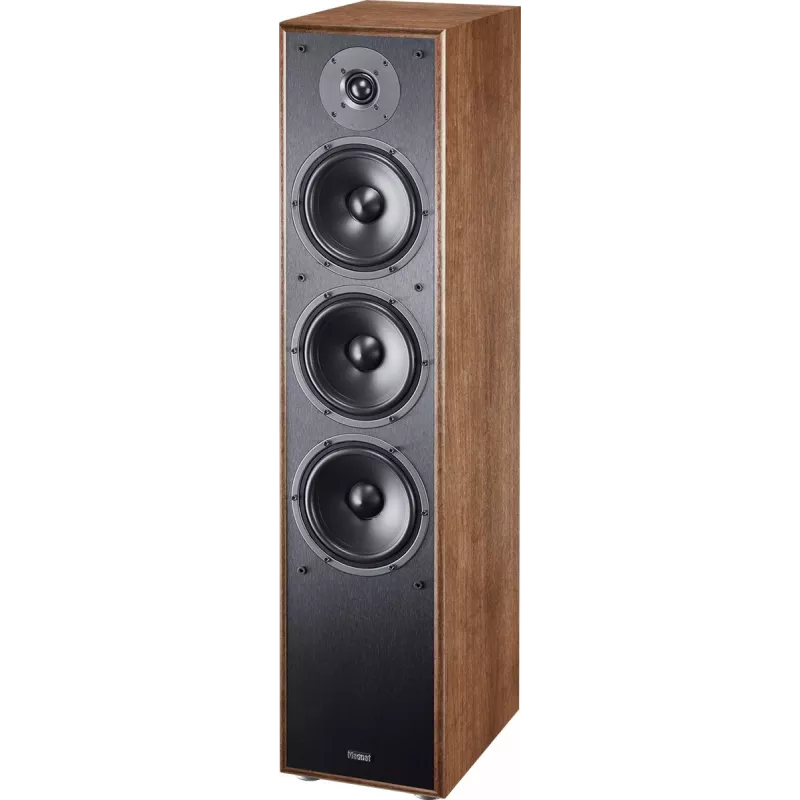

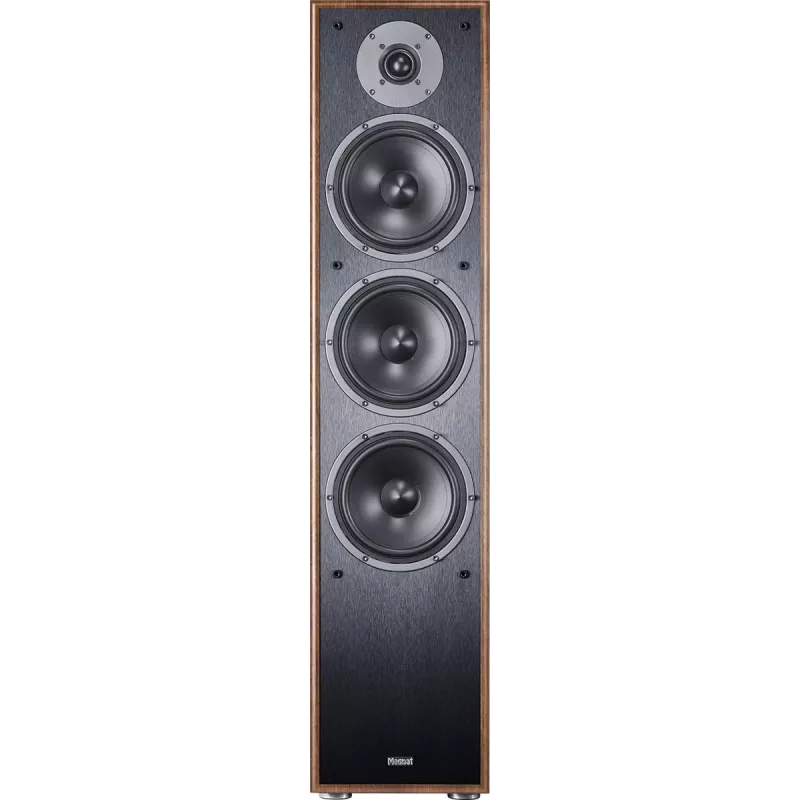

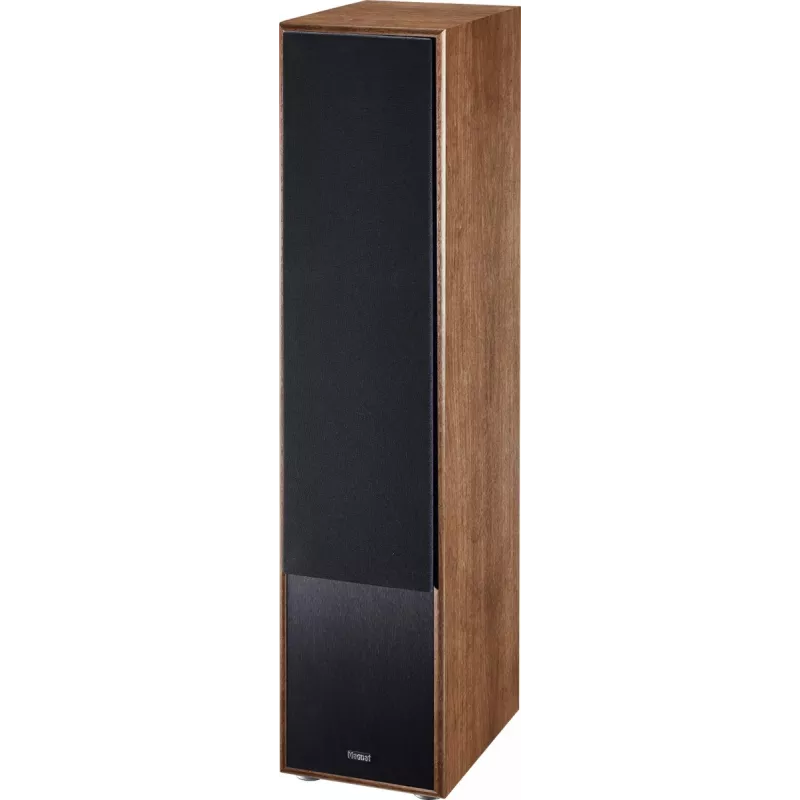

Coluna de 3 vias Magnat Monitor S70 190 W

3-way bass reflex floorstanding speaker designed for hi-fi systems and home cinema use. The speaker features a newly developed 28 mm fabric-composite dome tweeter, multiple drivers and bass-reflex loading to deliver balanced frequency response from deep bass to clear treble. Available in Black and Walnut finishes and built on an MDF cabinet for stable acoustic performance.

Advantages

The speaker provides versatile use as a dedicated hi-fi loudspeaker or as a front-channel speaker in a home theater. Gold-plated, encapsulated connection terminals ensure reliable signal transfer and corrosion resistance. The radiation-optimised front panel and powerful ferrite drive of the tweeter improve dynamic response and dispersion for detailed high frequencies.

Key specifications

• Configuration: 3-way bass reflex floorstanding speaker
• Power handling: 190 W (3-way)
• Drivers: 4 drivers
• Frequency response: 19 - 38,000 Hz
• Impedance: 8 Ω
• Tweeter: 28 mm fabric-composite dome with ferrite drive
• Terminals: Encapsulated, gold-plated connection terminals
• Cabinet material: MDF
• Finishes: Black, Walnut

How to use

Place the floorstanding speaker on a stable surface or use spikes/feet as appropriate for your floor type. Connect the speaker to an amplifier or receiver using quality speaker cables, observing correct polarity at the gold-plated terminals. Position the speakers as front left and right channels or integrate them into a stereo setup; allow several hours of playback at moderate volume for the drivers to settle.

Recommendations

For best results use a properly matched amplifier within the speaker's power rating and an appropriate room layout to optimise imaging and bass response. Maintain clear ventilation around the cabinet and avoid placing the speaker directly against walls to reduce unwanted reflections.
