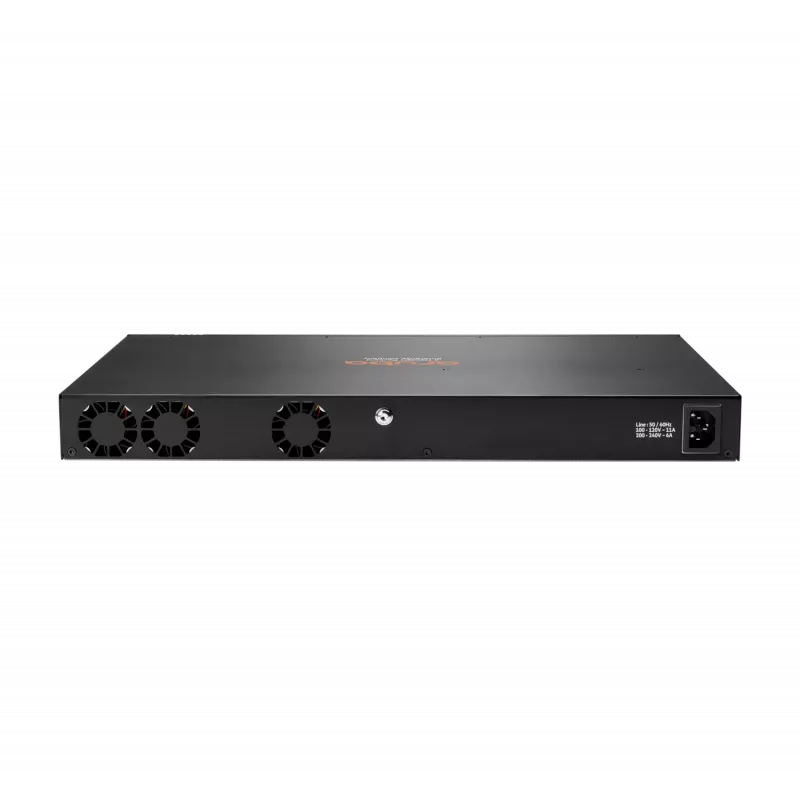

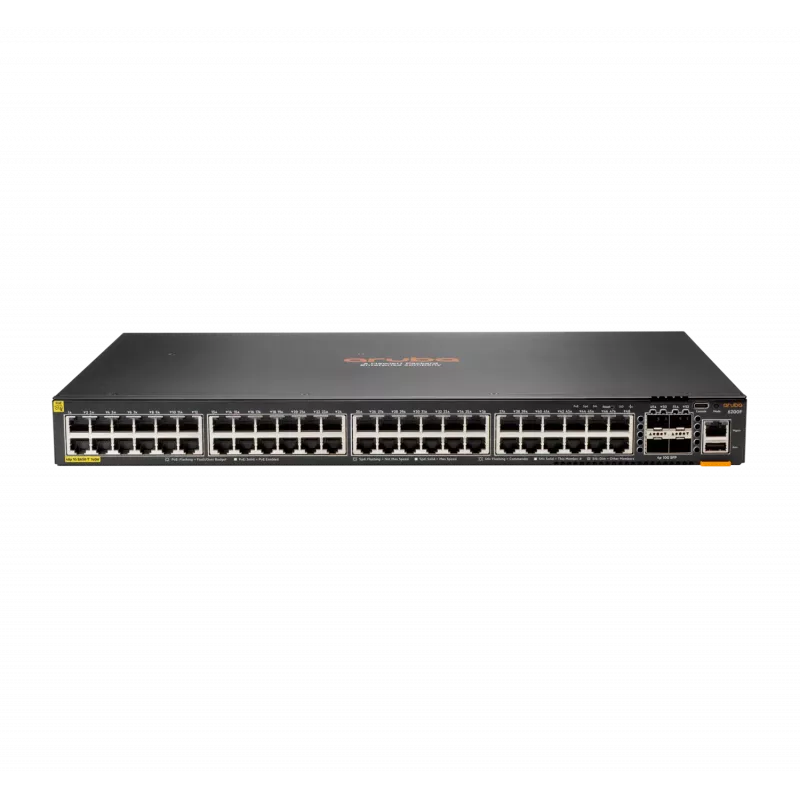

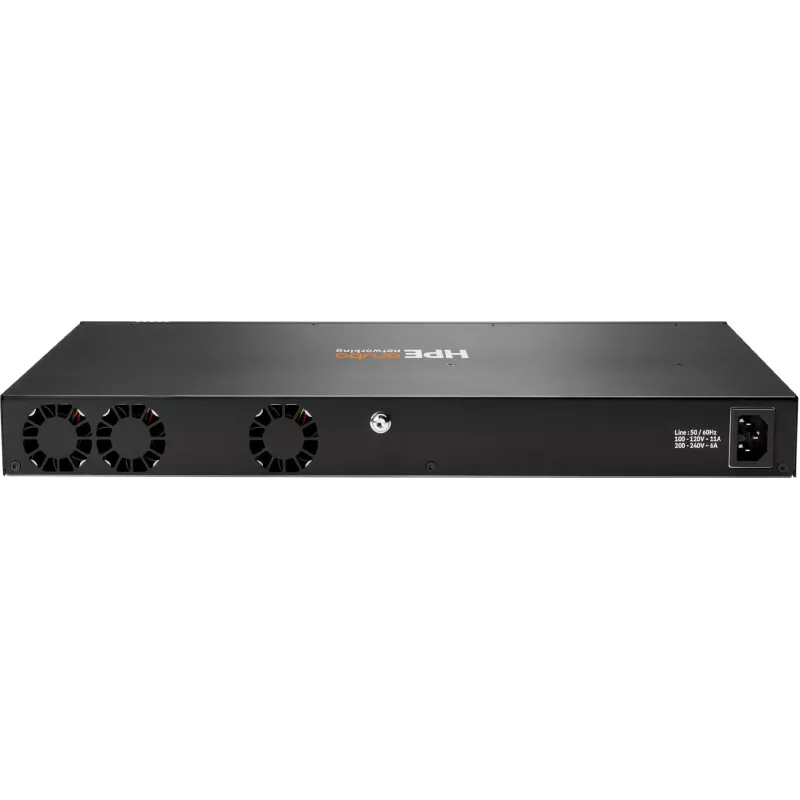

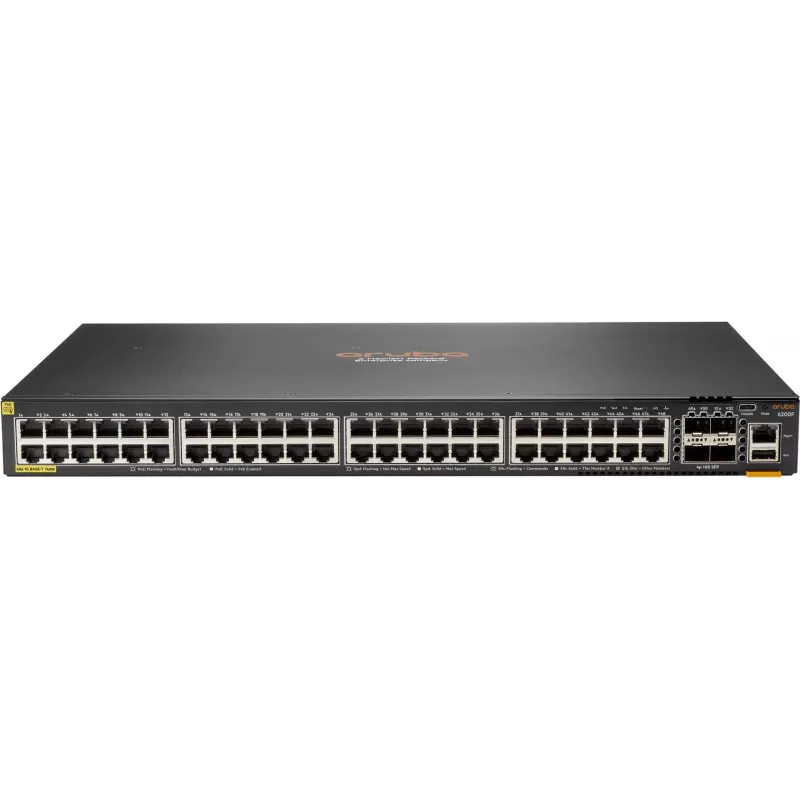

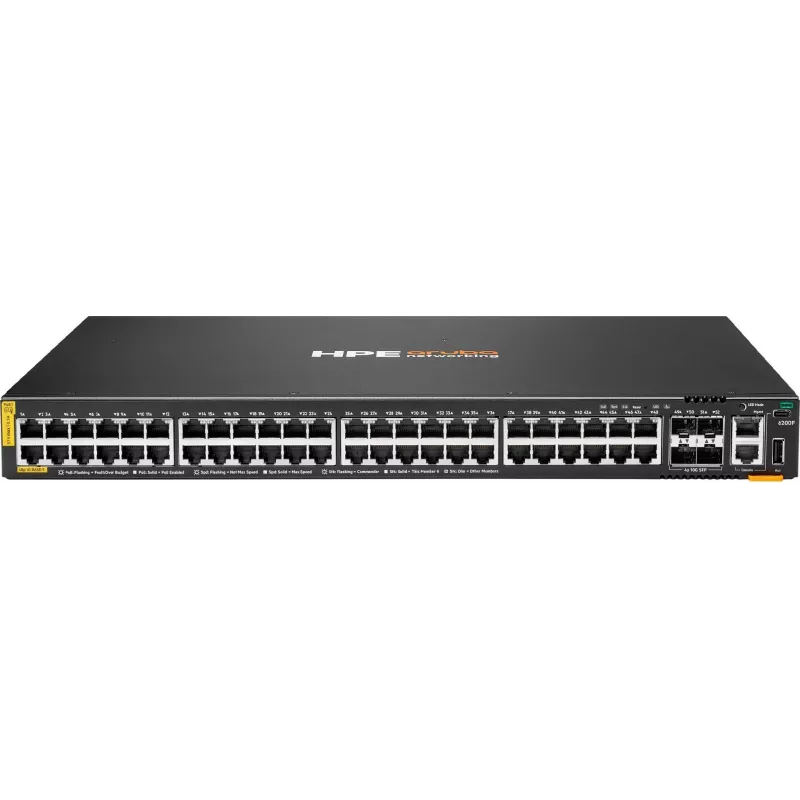

Comutador HPE Aruba Networking 6200F 48G CL4 4SFP+ 740W

The HPE Aruba Networking 6200F 48G CL4 4SFP+ 740W Switch (JL728B) is a high-performance, enterprise-grade access switch designed for modern networks. With 48 Gigabit Ethernet PoE+ ports and 4 SFP+ uplinks, it delivers reliable connectivity and power for devices such as IP cameras, wireless access points, and VoIP phones. The switch supports a PoE power budget of 740W, enabling deployment of high-power devices without additional cabling.

Advantages

This switch offers advanced Layer 2 and Layer 3 features, including static routing, RIP, OSPF, and BGP, making it suitable for complex network topologies. Its dual-core ARM processor and 8 GB of RAM ensure smooth performance even under heavy traffic. The 176 Gbps switching capacity and 130.9 Mpps forwarding rate provide wire-speed throughput for demanding applications. Additionally, the switch supports Aruba Central for cloud-based management, simplifying network operations.

Suitable for

• Enterprise campus networks requiring high-density Gigabit Ethernet and PoE+
• Deployments with high-power devices such as PTZ cameras and 802.11ac/ax access points
• Organizations needing robust security features like ACLs, DHCP snooping, and 802.1X
• Networks requiring Layer 3 routing capabilities for segmentation and scalability

Key specifications

• 48x 10/100/1000BASE-T RJ-45 PoE+ ports (Class 4, 740W budget)
• 4x 1/10GbE SFP+ uplink ports
• Switching capacity: 176 Gbps
• Forwarding rate: 130.9 Mpps
• Processor: Dual Core ARM Cortex A9 @ 1.016 GHz
• Memory: 8 GB DDR4 RAM, 16 GB eMMC Flash
• VLAN support: Up to 2048 VLANs
• Jumbo frame support: Up to 9198 bytes
• Form factor: 1U rack-mountable
• Power supply: Internal fixed, max consumption 890W
• Noise level: 46.5 dB typical
• Management: Web GUI, CLI, SNMP, Aruba Central

Recommendations

For optimal performance, pair this switch with Aruba Central for centralized management and monitoring. Ensure adequate power supply and ventilation in the rack to handle the 890W maximum power draw. Use SFP+ modules for uplink connections to achieve 10 Gbps speeds.
