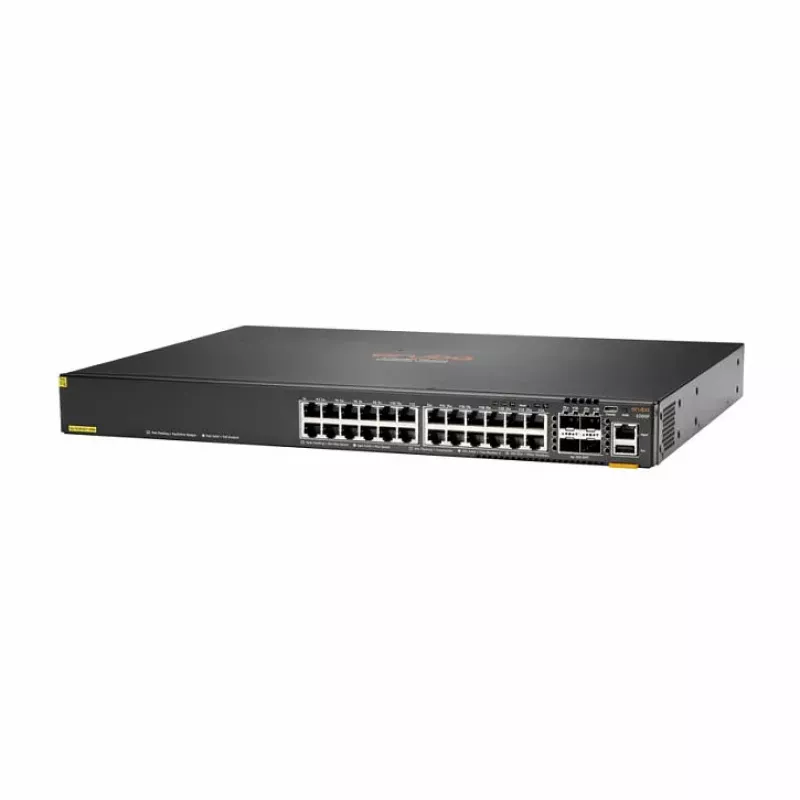

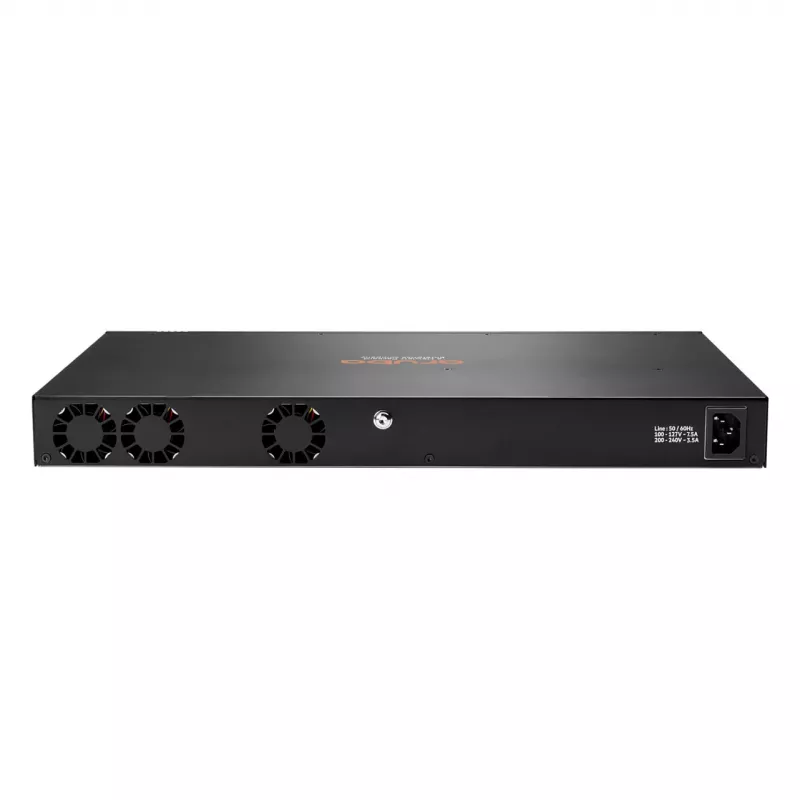

Comutador HPE Aruba Networking CX 6200F 24G Classe 4 PoE 4SFP 370W

The HPE Aruba Networking CX 6200F 24G Class 4 PoE 4SFP 370W Switch is a high-performance managed Layer 3 Ethernet switch designed for enterprise edge and small-to-medium business networks. It provides 24 Gigabit Ethernet PoE+ ports and 4 SFP uplink ports, delivering reliable connectivity and power to devices such as IP phones, wireless access points, and security cameras. With a PoE power budget of 370W, it supports IEEE 802.3at PoE+ for efficient power delivery. The switch offers advanced features like virtual stacking (VSF) for up to 8 members, robust security, and comprehensive management options.

Advantages

This switch combines high port density with PoE+ capability, simplifying network infrastructure by reducing the need for separate power sources. Its Layer 3 routing capabilities (static, OSPF, BGP, RIP) enable efficient traffic management and scalability. The virtual stacking feature allows multiple switches to be managed as a single unit, enhancing flexibility and reducing operational complexity. With a switching capacity of 128 Gbps and low latency, it ensures smooth data flow for demanding applications.

Suitable for

• Enterprise edge networks requiring PoE+ for IoT devices
• Small-to-medium businesses needing a cost-effective managed switch
• Deployments requiring virtual stacking for simplified management
• Networks with high-bandwidth requirements and Layer 3 routing

Key specifications

• 24 x 10/100/1000Base-T PoE+ ports
• 4 x 1G SFP uplink ports
• PoE power budget: 370W
• Switching capacity: 128 Gbps
• Forwarding rate: 95.2 Mpps
• Virtual stacking (VSF): up to 8 members
• MAC address table: 32,768 entries
• Jumbo frame support: up to 9198 bytes
• DRAM: 4 GB, Flash: 16 GB
• Routing protocols: Static, OSPF, BGP, RIP
• Form factor: 1U rack-mountable
• Power consumption (max): 450W
• Operating temperature: 0 to 45°C

Recommendations

For optimal performance, use this switch with HPE Aruba Networking access points and controllers. Ensure adequate ventilation and power supply for the 370W PoE budget. Consider using SFP modules for uplink connections to achieve maximum throughput.
