Comutador KVM ATEN CL1308N montagem em rack preto PS/2 USB VGA

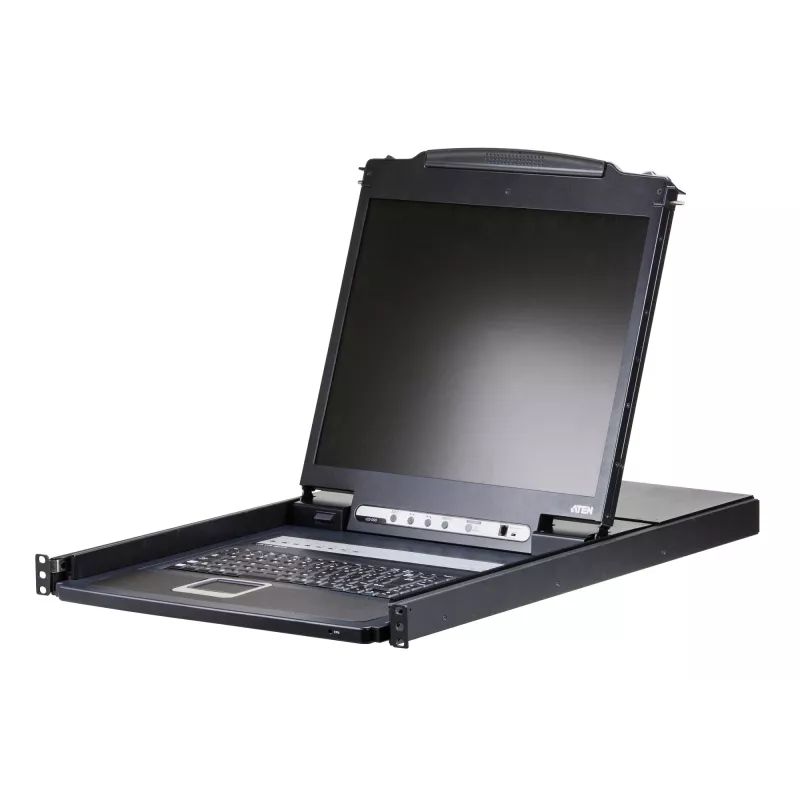

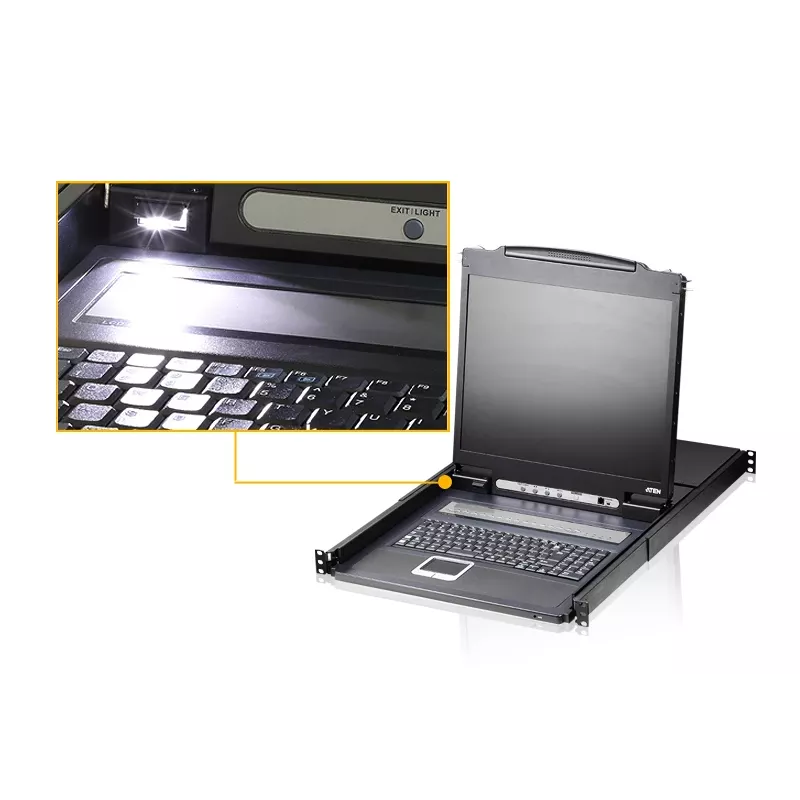

The ATEN CL1308N is a 1U rack-mountable KVM switch that integrates a 19" LED-backlit LCD, full keyboard and touchpad into a sliding console for efficient server-room use. It supports both PS/2 and USB keyboard/mouse connections and allows control of up to 8 computers from a single console; cascading up to 8 additional switches increases control capacity to 128 computers. The unit is constructed from metal and plastic and supports a maximum LCD resolution of 1280 x 1024 with analog video resolutions up to 1920 x 1200.

Advantages

The CL1308N reduces rack space and simplifies cabling by combining monitor, keyboard and touchpad in a single 1U sliding housing. It supports mixed PS/2 and USB peripherals, offers cascade expandability for large installations, and provides multiple switching methods including front-panel buttons, keyboard hotkeys and a multilingual on-screen display. The direct keyboard interception design removes the need for additional software configuration, enabling quick setup and immediate access to connected systems.

Suitable for

• Small to medium server rooms where rack space is limited
• Network and system administrators managing multiple servers from a single console
• Environments requiring both PS/2 and USB peripheral support
• Installations that may need to expand control to many servers via cascading

Key specifications

• Model: ATEN CL1308N (MPN: CL1308N-US, EAN: 5715063528068)
• Form factor: 1U rack-mountable sliding KVM console
• Integrated display: 19" LED-backlit LCD; native resolution 1280 x 1024
• Maximum analog video support: up to 1920 x 1200
• Ports supported: PS/2 and USB keyboard/mouse
• Control capacity: 8 computers per switch; up to 128 when cascaded
• Materials: metal and plastic

How to use

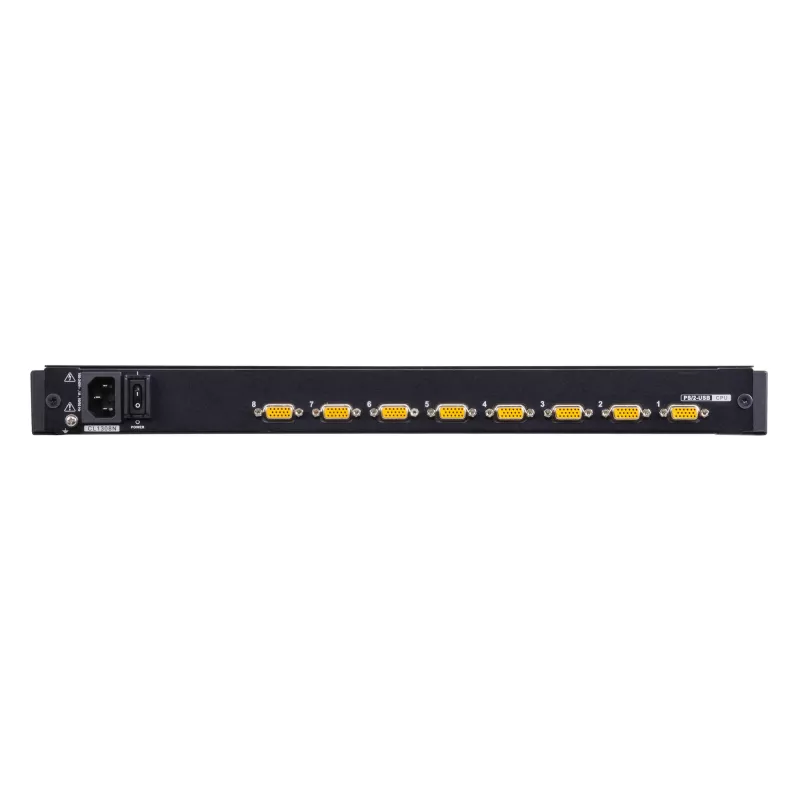

Install the CL1308N into a 1U rack space using the appropriate rack-mount kit if required, then connect each server to the unit with the provided KVM cables, matching VID/KB/MS ports to the corresponding server ports. Power on the console and connected systems; no additional software is needed because the KVM intercepts keyboard input directly. Switch between connected computers using the front-panel push buttons, keyboard hotkey combinations, or the multilingual on-screen display (OSD).

Recommendations

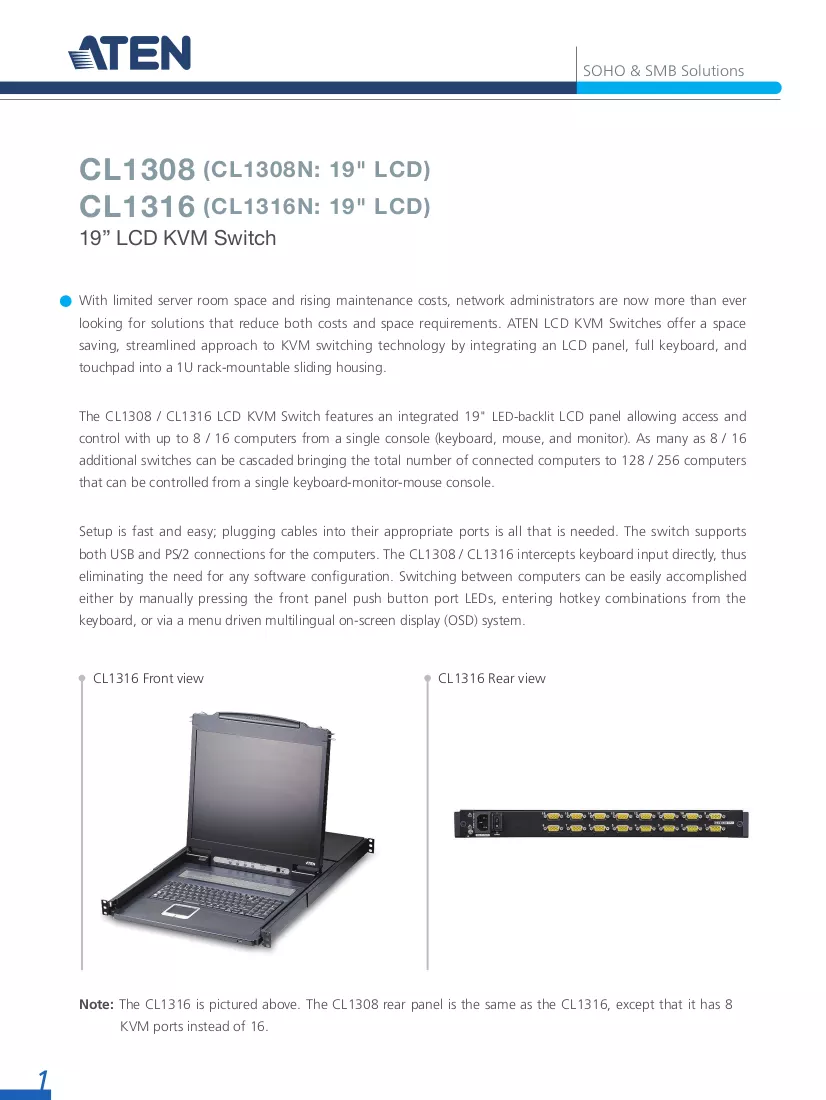

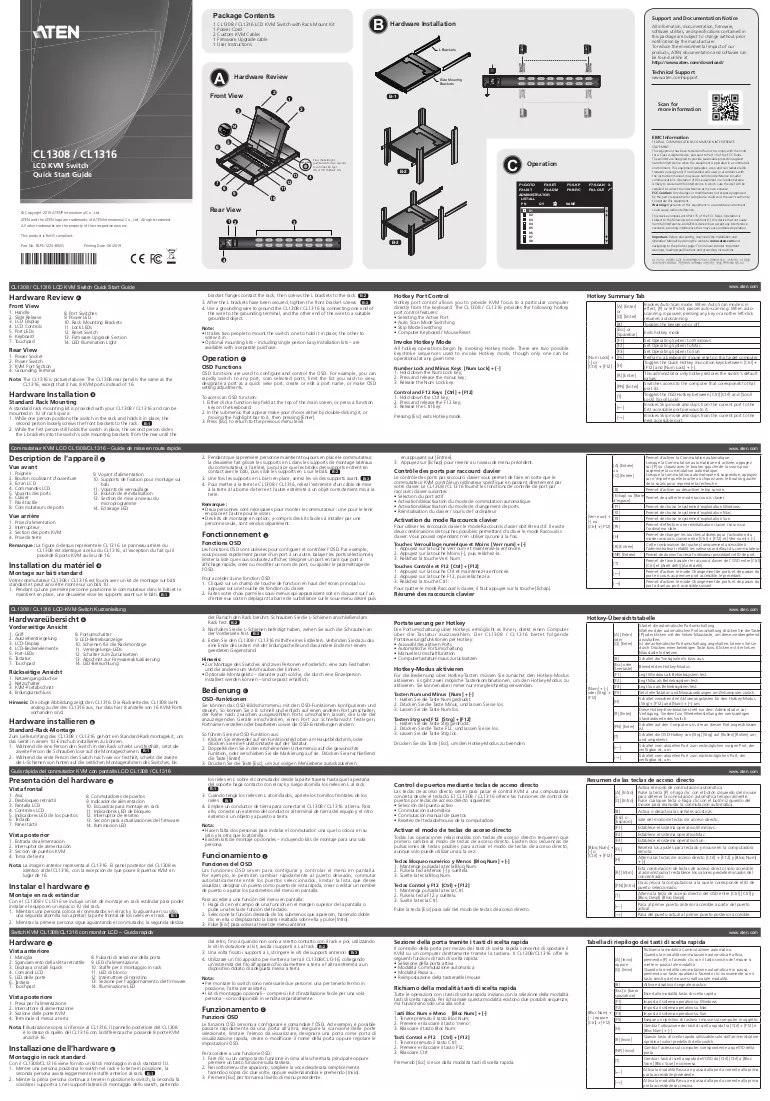

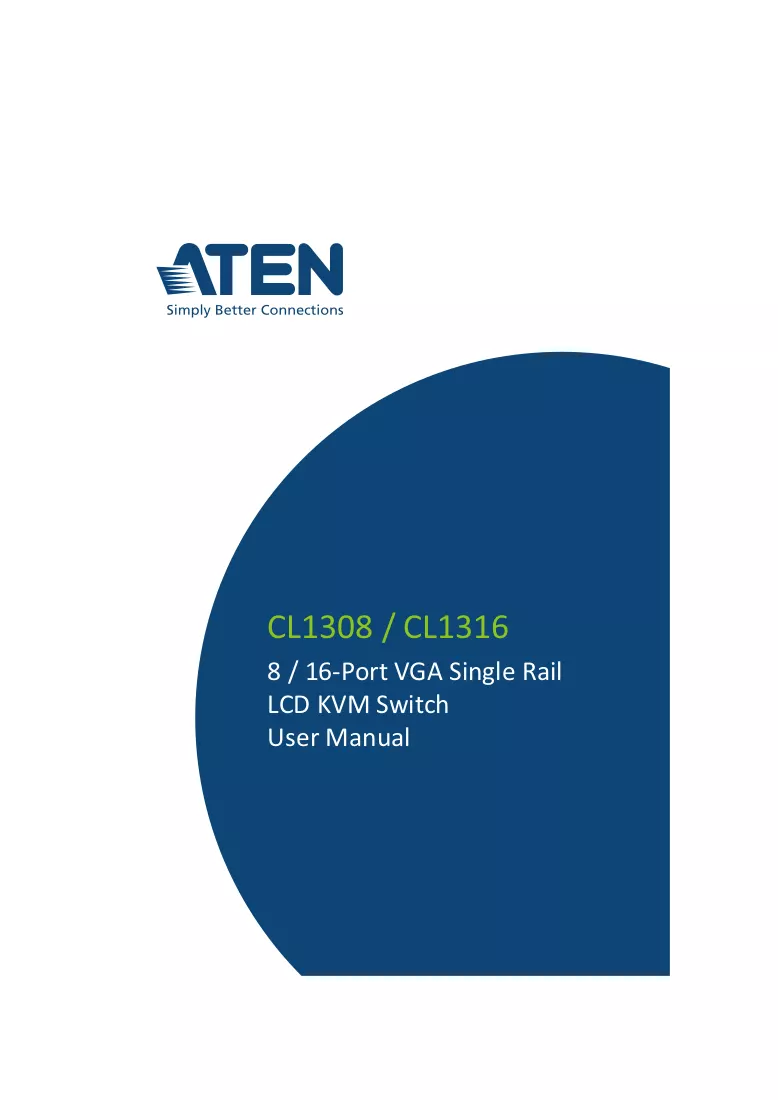

For reliable operation, use certified KVM cables and proper grounding for the rack. If you plan to cascade multiple switches, plan cable routing and port mapping in advance and verify compatibility of PS/2 and USB devices. Optional rack-mount kits are available for secure installation; consult ATEN documentation for compatible accessories.
