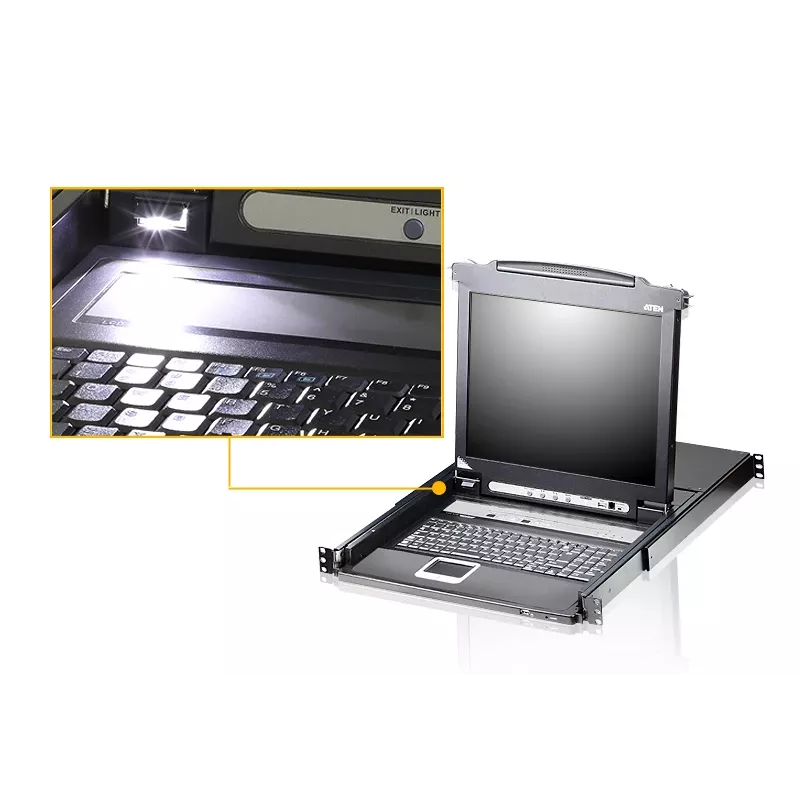

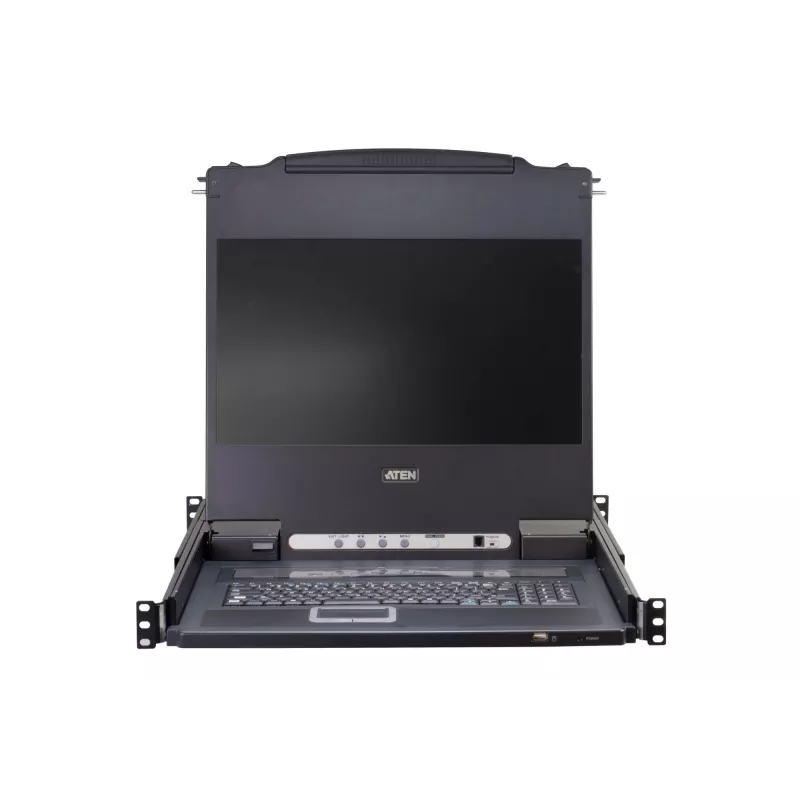

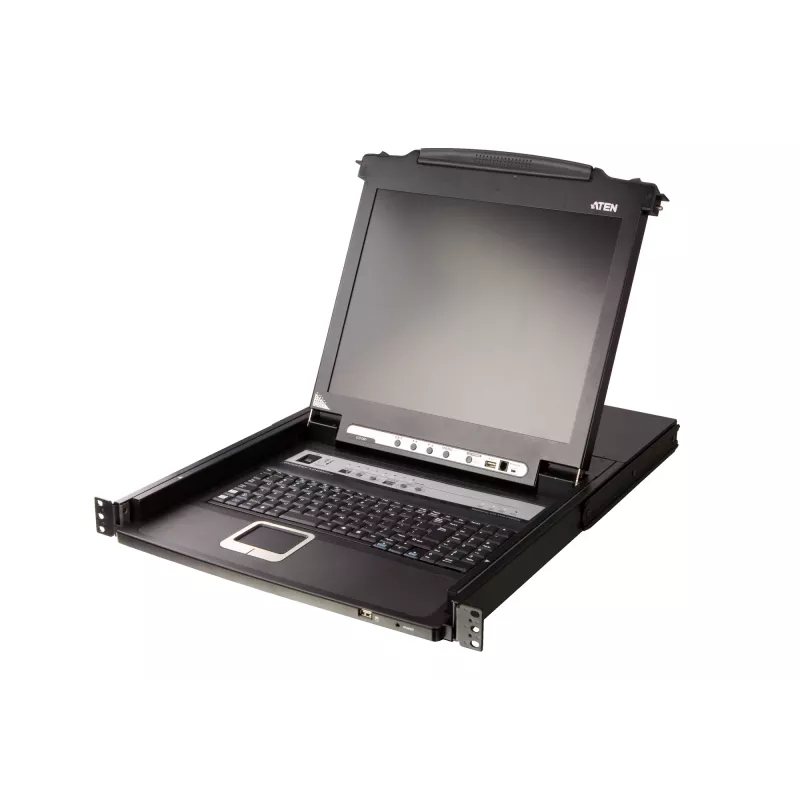

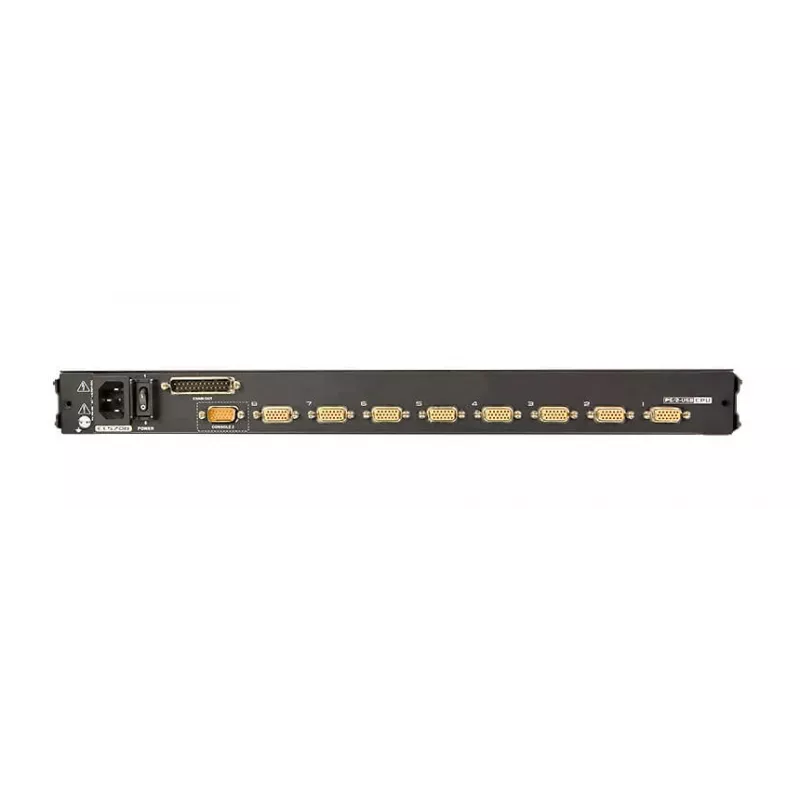

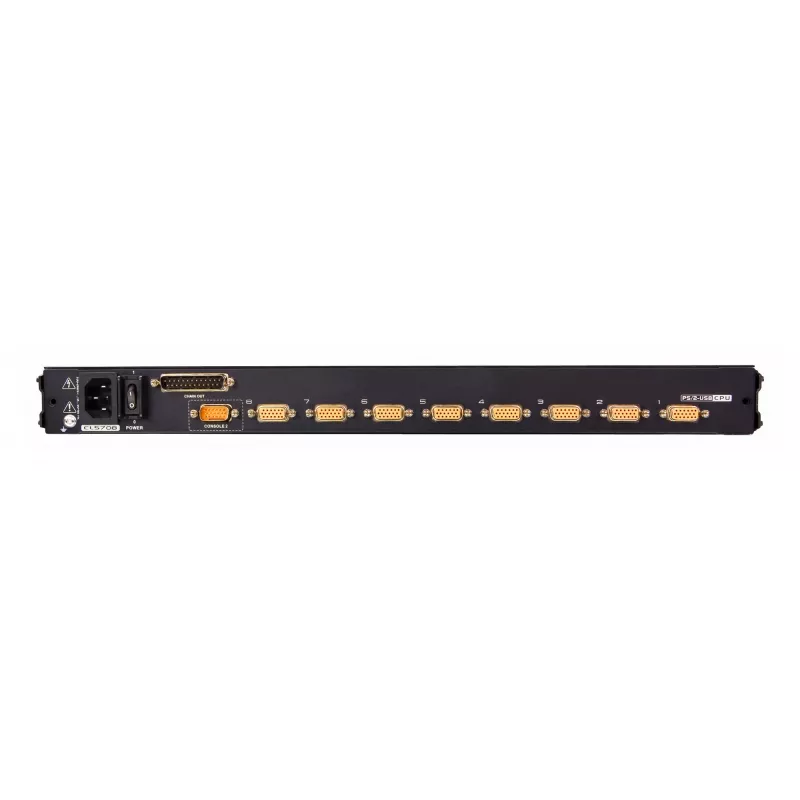

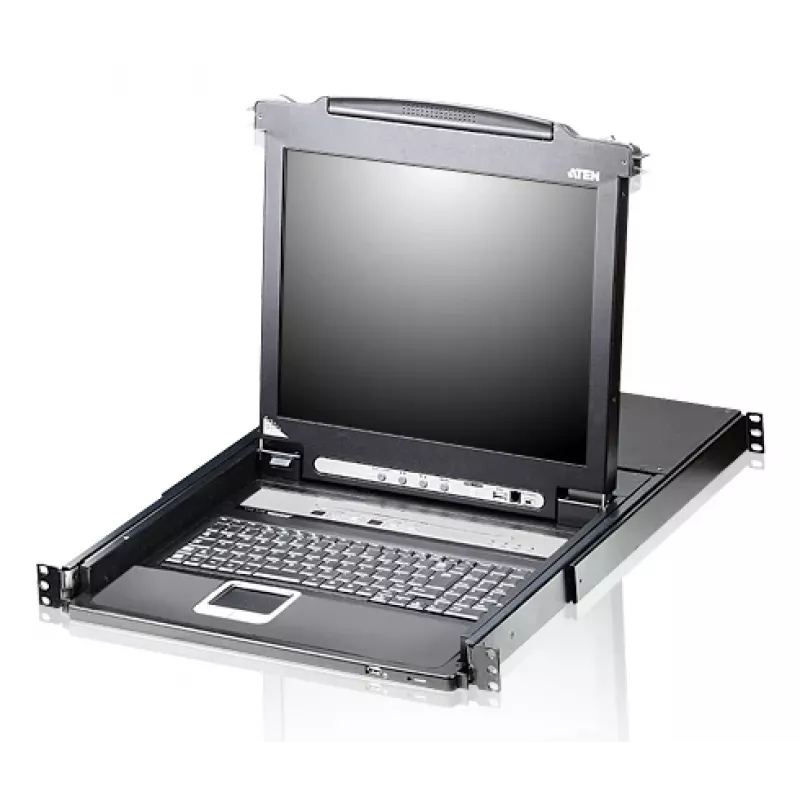

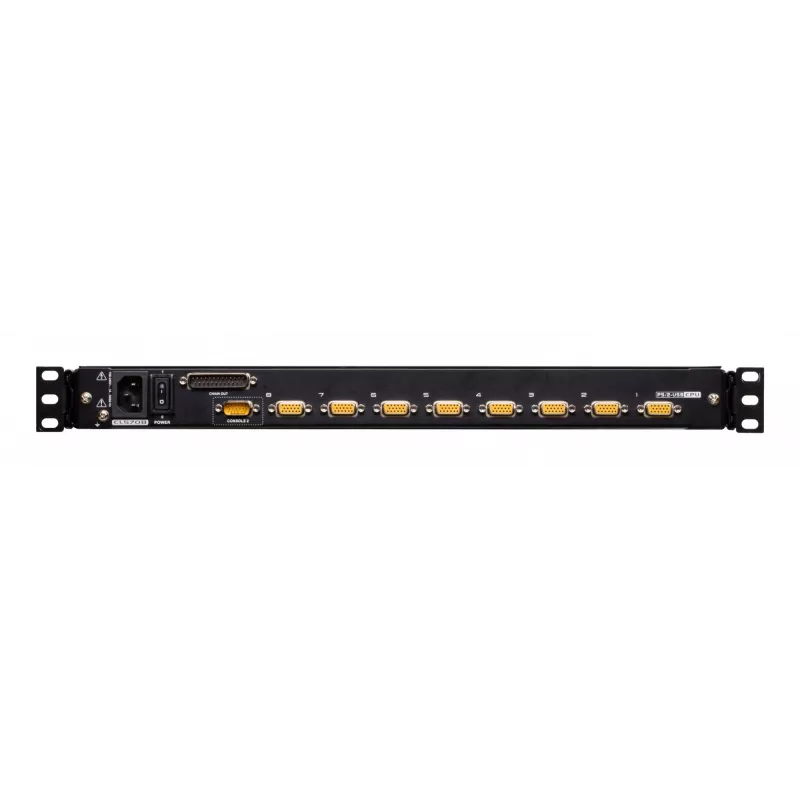

Comutador KVM ATEN CL5708M montagem em rack preto 1U LCD 17 polegadas CL5708M-CH

The ATEN CL5708M is a 1U rack-mountable KVM switch with an integrated 17" LED-backlit LCD, keyboard, and touchpad in a sliding housing. It enables a single PS/2 or USB KVM console to access and control multiple computers, supporting up to 8 ports in the base unit and the ability to cascade additional switches to manage far larger installations. The unit is constructed from metal and plastic and is intended for use in server racks and network closets where space efficiency is required.

Advantages

The CL5708M combines a compact 1U form factor with an integrated monitor and input devices, saving rack space and simplifying console access. It supports high video resolutions for clear display output and offers a modular design that allows the KVM module to be detached from the switch section for easier maintenance. The device also supports optional biometric fingerprint authentication for enhanced access control.

Suitable for

• Data center and server room racks where multiple servers are managed from a single console
• Network closets and IT cabinets requiring a space-saving operator station
• Environments that need secure access control to consoles and connected servers

When it may not be suitable

This KVM switch is designed for rack-mounted server environments and may be unnecessary for small desktop setups or for users who only need to control one or two computers. It requires rack space (1U) and AC power, so it may not be suitable for locations without standard rack infrastructure or consistent mains power.

Key specifications

• Form factor: 1U rack-mountable sliding console with integrated 17" LED-backlit LCD
• Console interface: PS/2 and USB KVM compatibility
• Maximum controlled computers: 8 ports in base unit; supports cascading to control many more
• Maximum video resolution supported: up to 1920 x 1200
• Construction: metal and plastic housing
• Power: AC input with wide voltage range

How to use

Install the CL5708M into a 19" equipment rack using compatible rack-mount kit hardware. Connect the KVM console ports (keyboard, video, and mouse) to the integrated console, then connect server ports to the switch using appropriate KVM cables. Power the unit from AC mains. Use the local control methods or optional biometric authentication to switch between connected computers. For larger installations, cascade additional compatible KVM switches to expand the number of controllable systems from the same console.

What to consider before purchase

• Available rack space (unit occupies 1U)
• Number of servers to be managed and whether cascading will be needed
• Required console interfaces (PS/2 or USB) and cable compatibility
• Desired maximum video resolution for monitors attached to servers
• Whether optional biometric access control or specific rack-mount kits are required

Recommendations

Place the CL5708M in a properly ventilated rack position, use certified KVM cabling for reliable video and input signals, and plan cascade topology in advance if you expect to manage many servers. Keep firmware updated and use the detachable KVM module feature for maintenance without removing the full unit from the rack.
