Conector de cabo EFB Elektronik 34601.1 D-Sub 9 pinos preto

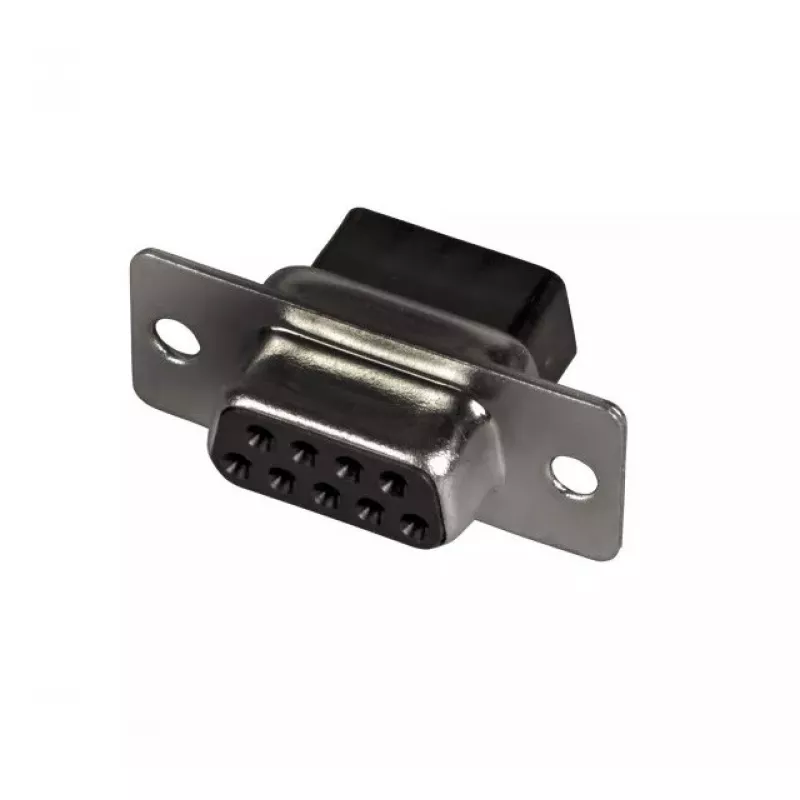

The EFB Elektronik 34601.1 Dsub 9-pin wire connector in black is a female 9-pin connector designed for establishing reliable serial and peripheral connections in electronic equipment. Supplied as a single unit, this compact connector provides a standard D-subminiature interface compatible with equipment that accepts 9-pin female D-sub connectors. Its molded housing and contact arrangement are intended for practical installation where a secure, space-efficient connector is required.

Advantages

This 9-pin female Dsub connector offers a standardized interface for RS-232 and similar serial connections, ensuring compatibility with a wide range of devices. The black molded housing provides mechanical protection and a tidy appearance while supporting straightforward wiring and assembly. Supplied as a single piece, it is suitable for repair, replacement or custom cable assemblies where a reliable D-sub connection is needed.

Suitable for

• Serial communication interfaces (RS-232) and legacy equipment
• Custom cable assemblies and panel-mounted connectors
• Repair or replacement of 9-pin D-sub connections in industrial and consumer electronics
• Prototyping and small-batch production of devices requiring a female D-sub port

Key specifications

• Connector type: D-subminiature, 9 pins, female
• Color: black
• Quantity: single unit
• Housing: molded plastic for mechanical protection
• Contact configuration: standard 9-contact arrangement for serial signals

How to use

Prepare the cable or panel cutout for the Dsub 9-pin connector and ensure correct pin mapping to match the mating device. Strip and terminate wires according to the connector's contact arrangement, then insert and secure the wires following the manufacturer's recommended method for the specific connector variant. Mount the connector in the panel or cable assembly, make the mechanical fastenings, and verify continuity and signal integrity with a multimeter or appropriate test equipment before regular operation.

Recommendations

For reliable long-term performance, avoid exposing the connector to prolonged moisture or corrosive environments and ensure mating connectors are aligned before applying force. Verify pin assignments when replacing or modifying existing connections to prevent signal misrouting. Use strain relief and proper fastening to reduce mechanical stress on the contacts.
