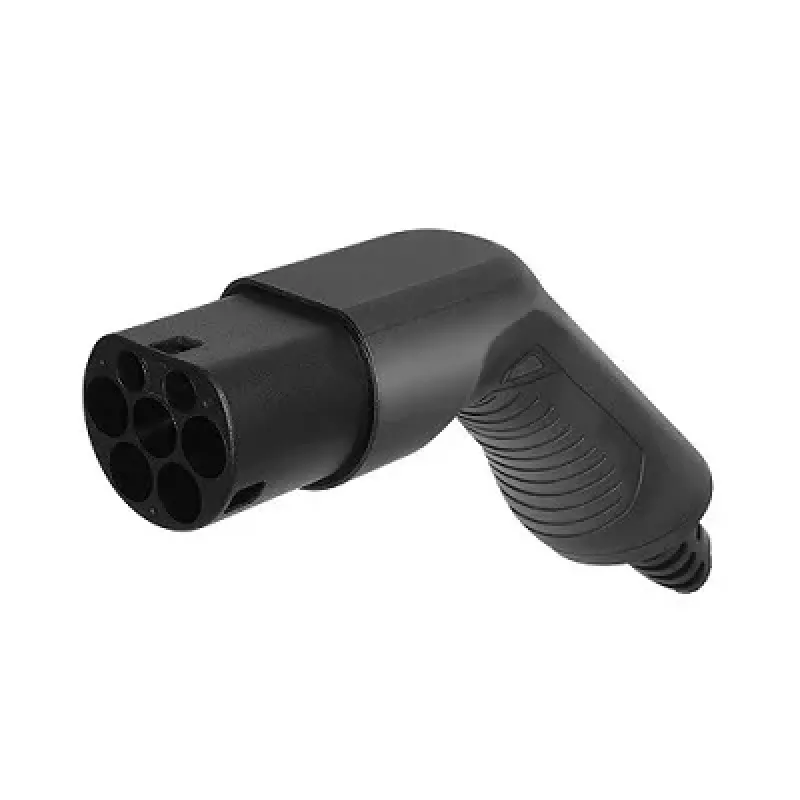

Conector macho de carregamento EV HISMART Type 2, 32A, monofásico, 7,4kW

The HISMART Type 2 Male EV Charging Connector (Model EV200061) is a high-quality, IEC 62196-2 compliant plug designed for electric vehicle charging cable assemblies and repairs. With a robust 32A current rating and single-phase configuration, it delivers up to 7.4kW of power at 230V AC. This connector features 7 pins (L1, N, PE, CP, PP, L2, L3) and is built with a durable thermoplastic housing and silver-plated copper alloy contacts for reliable performance and long service life.

Advantages

Engineered for durability and safety, this connector offers IP54 ingress protection when mated, ensuring resistance to dust and water splashes. It supports over 10,000 mating cycles and operates in temperatures from -30°C to +50°C. The UL94 V-0 flammability rating and CE/TUV certifications guarantee compliance with international standards.

Suitable for

• EV charging cable assembly and repair
• Type 2 (IEC 62196-2) charging stations
• Single-phase AC charging applications up to 7.4kW
• Replacement or custom charging cables for electric vehicles

Key specifications

• Connector Standard: IEC 62196-2 (Type 2)
• Connector Gender: Male
• Current Rating: 32 A
• Phase Configuration: Single-Phase (1P)
• Maximum Power Output: 7.4 kW
• Voltage Rating: 230V AC
• Number of Pins: 7 (L1, N, PE, CP, PP, L2, L3)
• Ingress Protection (IP) Rating: IP54 (when mated)
• Housing Material: Thermoplastic
• Contact Material: Copper Alloy with Silver Plating
• Operating Temperature: -30°C to +50°C
• Certifications: CE, TUV
• Insulation Resistance: >1000 MΩ (DC500V)
• Withstand Voltage: 2000V AC
• Mating Cycles: >10,000
• Cable Compatibility: Suitable for 3G6mm² + 2x0.5mm² cable
• Flammability Rating: UL94 V-0

Recommendations

For optimal performance, use with appropriate EV charging cable and ensure proper mating to maintain IP54 protection. Always follow local electrical codes and manufacturer guidelines during installation.
