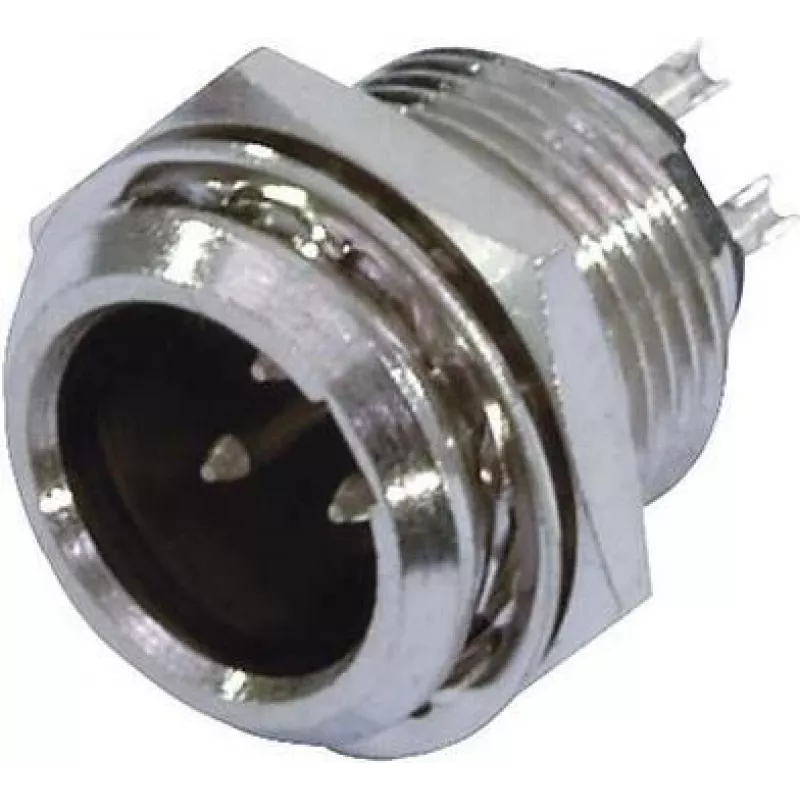

Conector Mini XLR de 3 pinos Omnitronic 30200120 — conector de áudio compacto para sinais simétricos

Omnitronic Mini XLR 30200120 is a 3-pin compact audio connector designed for balanced signal transmission. Its small form factor fits portable audio equipment, wireless systems and tight rack spaces, providing a reliable connection for microphones, in-ear monitors and other professional audio devices where space is limited.

Advantages

The Mini XLR 3-pin connector offers a compact size combined with the reliability expected in professional audio applications. It supports balanced signals to reduce interference, is suitable for repeated connection cycles, and integrates easily into devices and cabling where a standard XLR would be too large.

Suitable for

Key specifications

How to use

Install the Mini XLR connector into the corresponding socket of microphones, wireless transmitters, in-ear monitor packs or the device chassis. Ensure correct pin alignment when mating connectors and secure mounting in panels or cable assemblies according to the device manufacturer's instructions. Use appropriate cable shielding and wiring for balanced connections (pin assignments as required by the connected equipment).

Recommendations

Choose the Mini XLR 3-pin Omnitronic 30200120 where space constraints require a smaller balanced connector; maintain cable strain relief and proper shielding to preserve audio quality and reduce interference.
