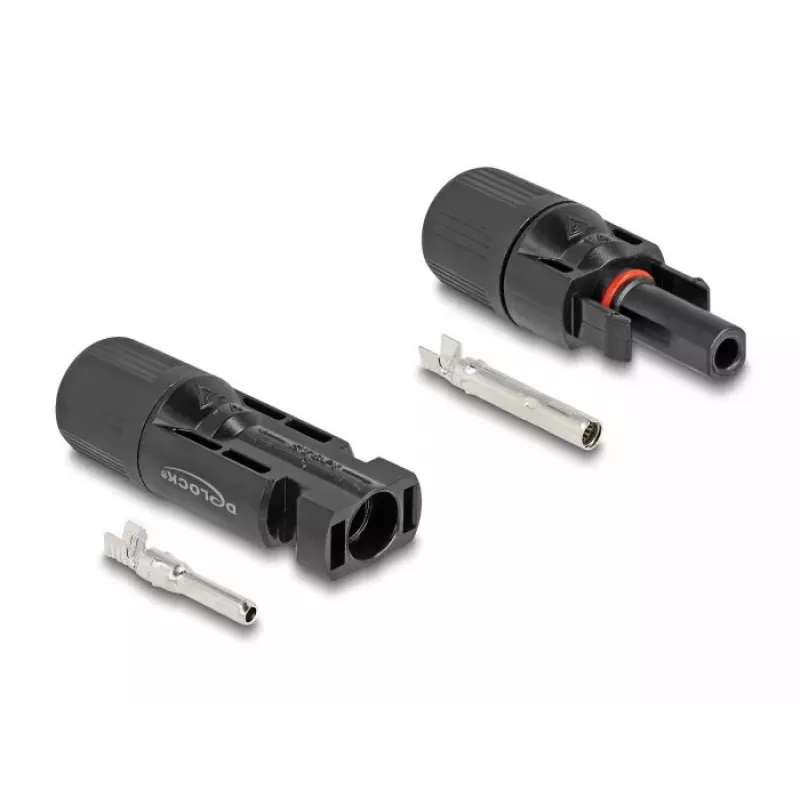

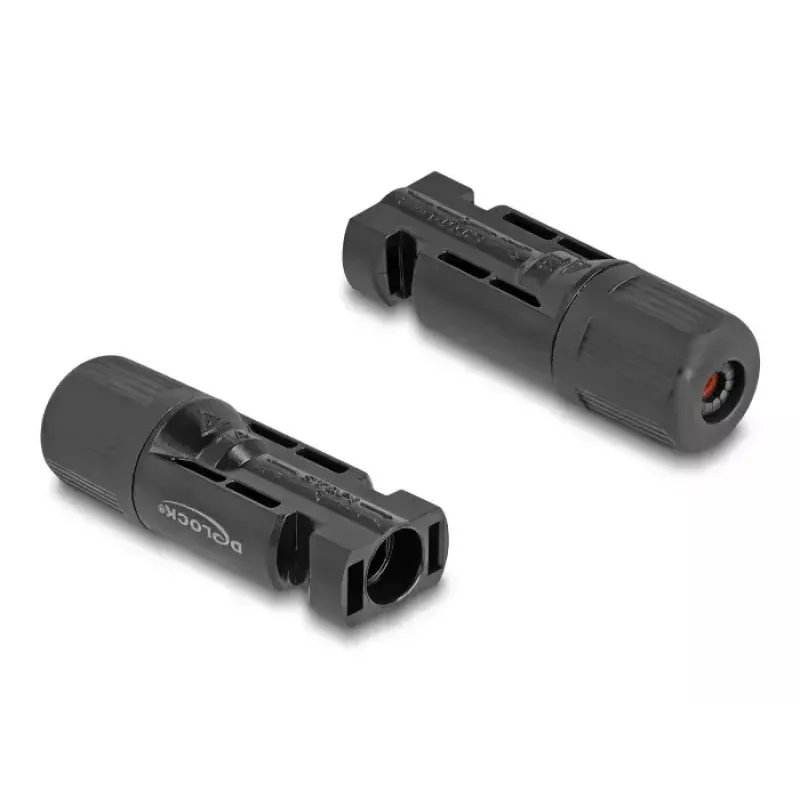

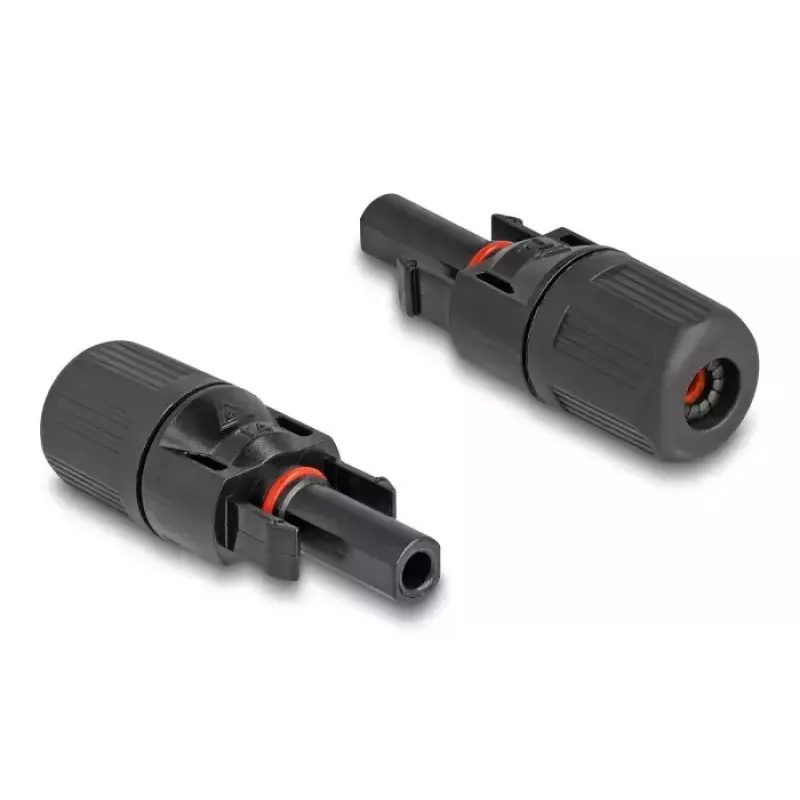

Conetor solar DeLOCK DL4 para cravar, macho e fêmea, preto, 2 unid.

These DeLOCK DL4 solar connectors are crimp-style male and female connectors supplied as a pair in black, intended for assembling cables to transmit energy from photovoltaic systems. The connectors measure 39 mm × 104 mm × 18 mm and are suitable for use with standard solar installation cabling where DL4-compatible terminations are required.

Advantages

The DL4 plugs and sockets feature a snap-in locking mechanism that prevents accidental disconnection and ensures a reliable electrical and mechanical connection. Both connector halves can be released using the appropriate tool, and the design provides IP67 protection against dust and water for outdoor use.

Suitable for

• Crimping and assembling DC solar panel cables
• Connecting male and female DL4-compatible solar cable ends
• Outdoor photovoltaic system installations requiring IP67-rated connectors

Key specifications

• Brand: DELOCK
• Model / MPN: 60670
• EAN: 4043619606702
• Type: DL4 crimp connectors, male and female (2 pcs)
• Colour: Black
• Dimensions: 39 mm (W) × 104 mm (D) × 18 mm (H)
• Protection class: IP67 (dust and waterproof)

How to use

Strip the cable to the recommended length for DL4 crimp contacts, place the conductor into the appropriate crimp contact, and crimp using a compatible crimping tool. Insert the crimped contacts into the male and female housings until the snap-in mechanism engages. To disconnect, use the correct release tool to depress the latch and separate the plugs. Follow standard electrical safety procedures and local regulations when working on photovoltaic systems.

Recommendations

Use only appropriate DL4-rated crimp contacts and a certified crimping tool to ensure secure electrical connections; verify polarity before final installation and ensure connectors are fully engaged to maintain IP67 protection.
