Consola de rack 19 polegadas ATEN CL5800N LCD 48,3 cm 1280x1024 VGA USB/PS/2 teclado alemão/suíço 1HE metal

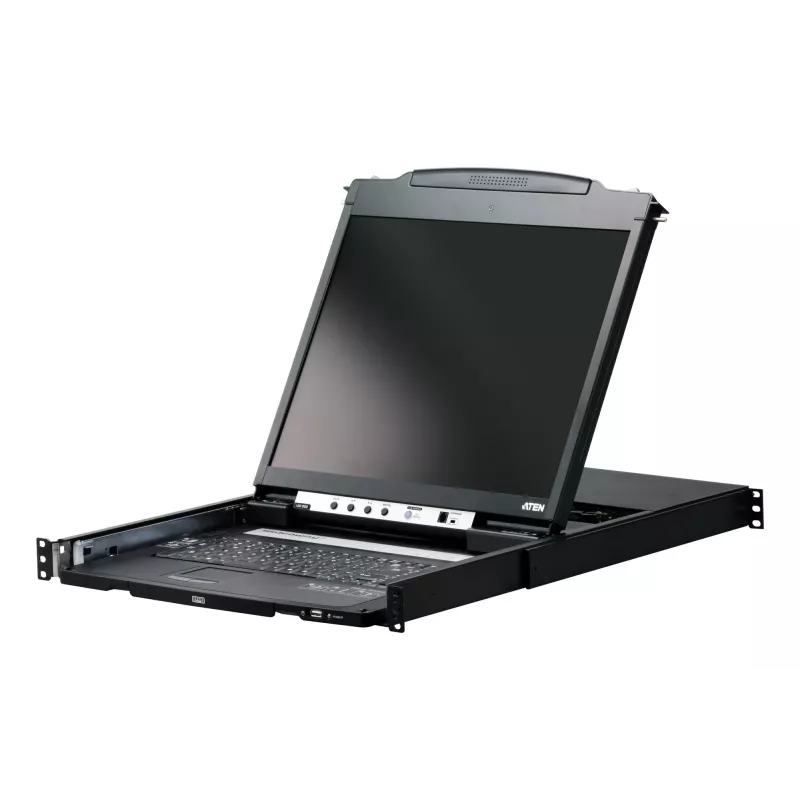

The ATEN CL5800N is a 1U rack-mount LCD KVM console with an integrated 19" (48.3 cm) LED-backlit LCD and 1280 x 1024 resolution. Housed in a slim metal sliding chassis, it combines a full keyboard with German/Swiss layout options and a touch pad to provide compact local administration for server rooms and data centers. Rear-panel connectors include VGA video output and both USB and PS/2 ports for keyboard and mouse, while the unit supports universal AC input (100–240 V, 50/60 Hz) and low power consumption.

Advantages

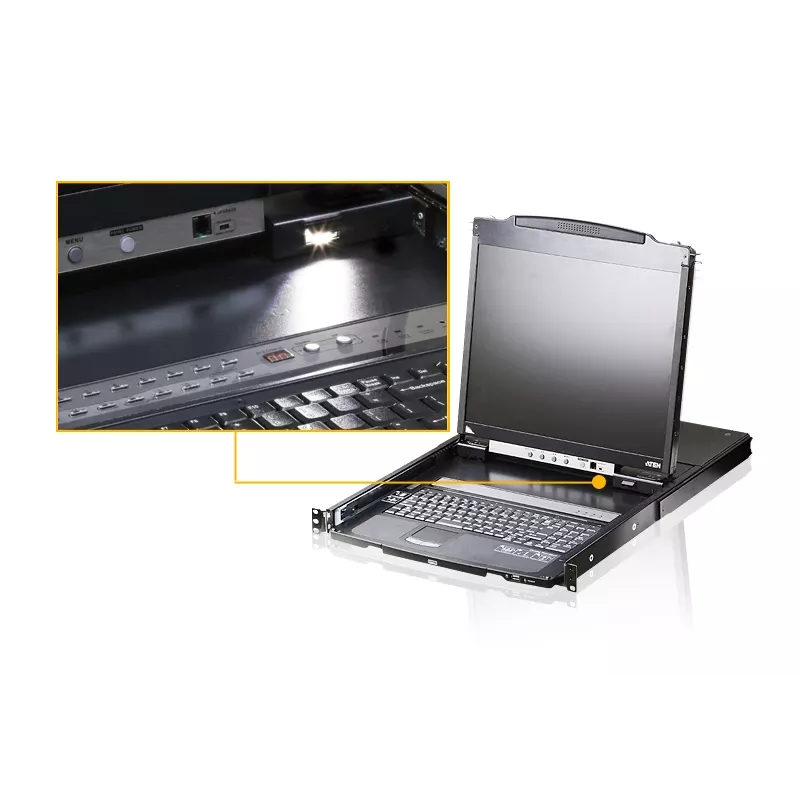

The CL5800N offers an independent sliding design for the LCD and keyboard/touch pad modules, allowing the keyboard to slide away when not in use and the thin LCD to rotate flush against the rack to save space. Its 1U form factor and metal construction provide a durable, space-efficient solution for rack cabinets. Native VGA output and dual USB/PS/2 connectors increase compatibility with existing server hardware, and the German/Swiss keyboard option ensures correct key mapping for those locales.

Suitable for

• Server rooms and data centers with limited rack space
• Racks requiring a compact, integrated console for local server access
• Environments using VGA video and USB or PS/2 input devices

Key specifications

• Model: ATEN CL5800N (MPN: CL5800N-ATA-2XK07GG)
• Display: 19" (48.3 cm) LED-backlit LCD, 1280 x 1024 resolution
• Form factor: 1U rack-mount sliding metal housing

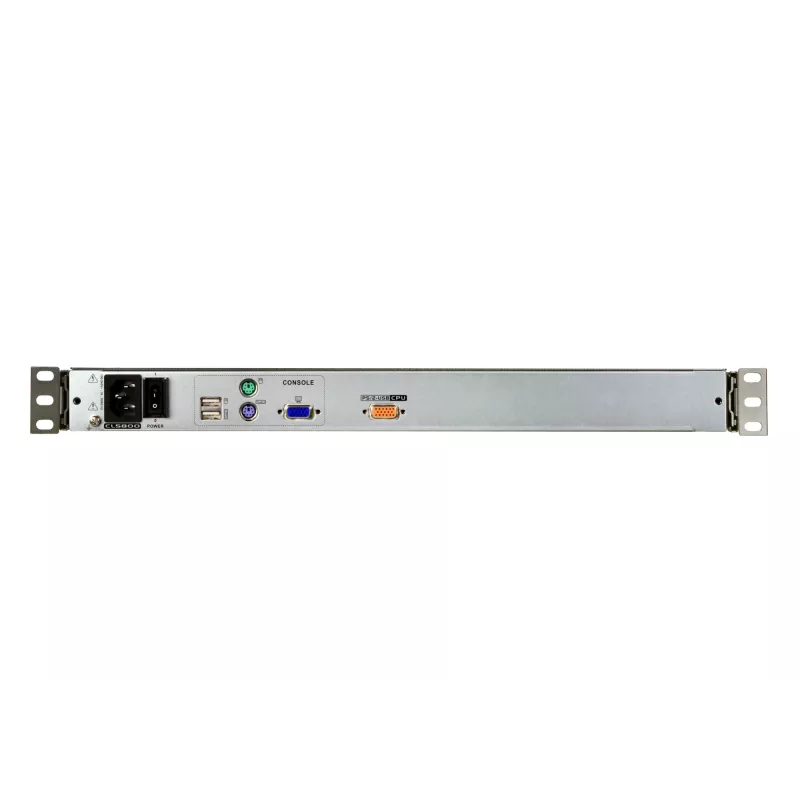

• Video output: VGA (rear panel)
• Keyboard/mouse ports: USB and PS/2 (rear panel); external keyboard/mouse support
• Keyboard layout: German/Swiss option
• Power: Universal AC input 100–240 V, 50/60 Hz; typical power consumption 24 W
• EAN: 5711783160694

How to use

Install the console into a 19" rack occupying 1U of rack space and secure it according to standard rack-mount procedures. Slide the keyboard/touch pad module forward for operation and rotate the LCD into viewing position; when finished, slide the keyboard back to hide it and rotate the monitor flush against the rack to minimize depth. Connect the console to a server using the VGA video cable and select either USB or PS/2 connections for keyboard and mouse on the rear panel. Apply mains power using an appropriate AC input cable matching local voltage.

Recommendations

For optimal longevity, keep the sliding tracks free of debris and avoid excessive force when rotating the LCD or sliding the keyboard module. Use the provided rear ports for external keyboard or mouse only when necessary; ensure cable routing does not obstruct rack airflow.
