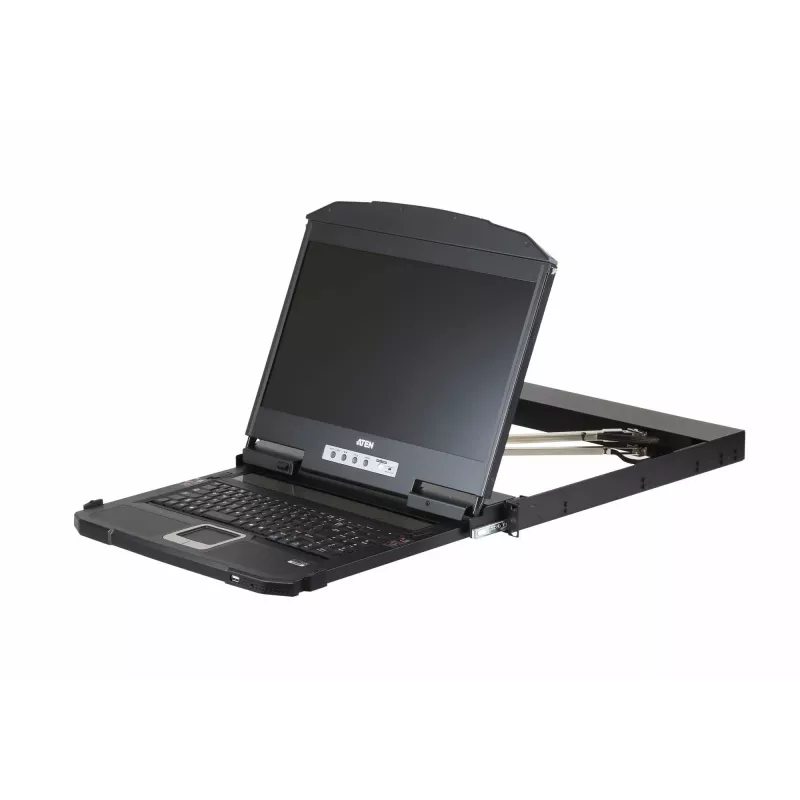

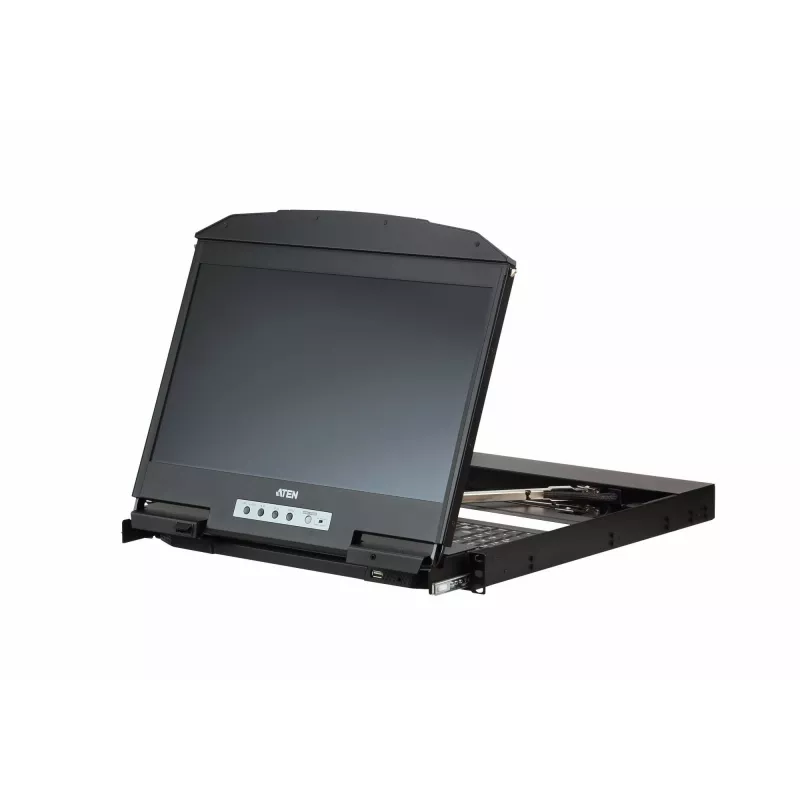

Consola KVM LCD ATEN CL3800NW 18,5 inch Dual Rail USB HDMI-DVI

Managing servers in space-constrained data centers and server rooms often means sacrificing either accessibility or rack space. The ATEN CL3800NW solves this by integrating a high-resolution 18.5-inch Full HD LCD panel, a full keyboard, and a touchpad into a single 1U dual-rail console that slides out only when needed, then tucks away to keep your rack tidy and efficient.

Who is it for

IT administrators, network engineers, and data center technicians who need quick, local access to servers and KVM switches without dedicating extra rack units or carrying around a crash cart. It is especially useful in high-density environments where every rack unit counts.

Main features

• 18.5-inch TFT-LCD panel with 1920 x 1080 Full HD resolution for crisp, detailed display of server consoles and applications.
• Dual rail design with short depth: the LCD monitor and keyboard/touchpad slide independently, allowing the monitor to remain visible while the keyboard is tucked away.
• 350 cd/m² brightness and 1000:1 contrast ratio deliver clear images even in brightly lit server rooms.
• Wide 178° horizontal and vertical viewing angles ensure readability from various positions.
• Integrated 105-key keyboard and touchpad provide full control without external peripherals.
• DVI-D video input and USB console connection ensure compatibility with modern servers and KVM switches.
• On-screen display (OSD) for easy adjustment of display settings.
• Supports multiple platforms including Windows, Mac, Sun, and Linux.
• Rack-mountable in 1U of space, with a short-depth design for shallow racks.

Specifications

• Display: 18.5-inch TFT-LCD, 16:9 aspect ratio
• Resolution: 1920 x 1080 (Full HD)
• Brightness: 350 cd/m²
• Contrast ratio: 1000:1
• Viewing angles: 178° horizontal, 178° vertical
• Response time: 5 ms
• Color depth: 16.7 million colors
• Console connections: 1 x DVI-D video input, 1 x USB Type B
• Keyboard: 105-key
• Pointing device: Touchpad
• Power consumption: 24.5 W (operational)
• Power input: AC 100-240 V, 50/60 Hz
• Rack height: 1U
• Supported OS: Windows, Mac, Sun, Linux

Tips

For optimal performance, connect the CL3800NW to a compatible ATEN KVM switch to manage multiple servers from a single console. The dual rail design allows you to keep the monitor pulled out for monitoring while sliding the keyboard back in to save space. Use the OSD to adjust brightness and contrast to match your environment's lighting conditions.
