Consola rack ATEN CL3100NX 47 cm (18,5 polegadas) preto 1U

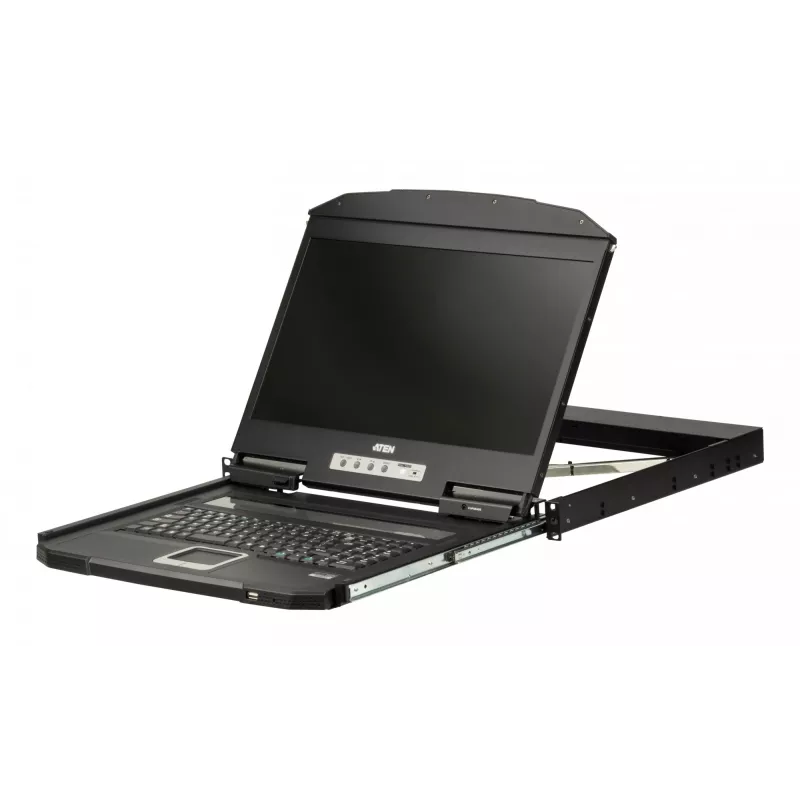

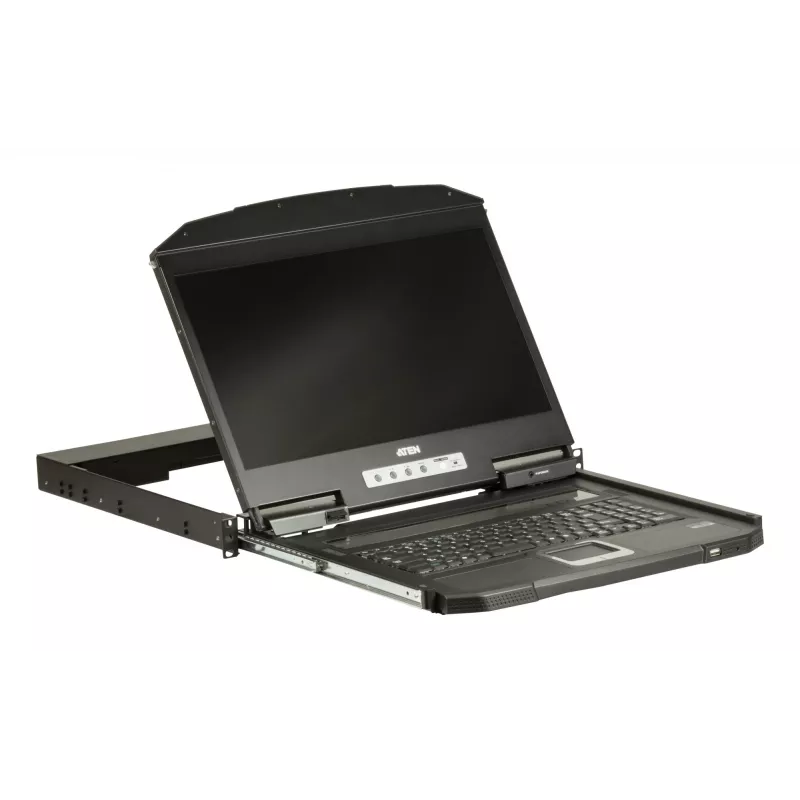

The ATEN CL3100NX Rack mounting Black is a short-depth single-rail LCD KVM console integrating an 18.5" LED-backlit widescreen LCD, keyboard and touchpad in a 1U rack form factor. Its shallow design fits 19" equipment cabinets and is suitable for shallow racks, mobile broadcast vans and compact control rooms. The unit supports VGA video and both USB and PS/2 keyboard and mouse connections and is powered from AC with a wide input range.

Advantages

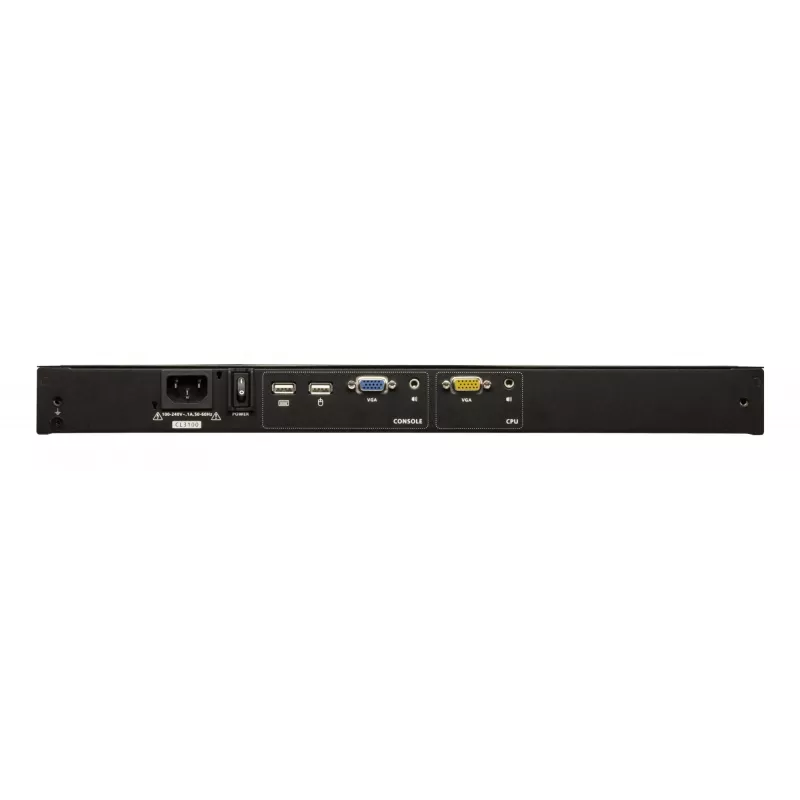

The CL3100NX combines a space-saving 18.5" LCD monitor with an integrated keyboard and touchpad in a durable metal/plastic 1U chassis, providing convenient front-end access in tight rack environments. It offers front-panel USB mouse support and rear-panel ports for a second KVM console (USB keyboard/mouse and VGA monitor), plus two mini stereo audio ports. The short-depth design and rack-mount compatibility make it adaptable for broadcast, on-site production and small control-room deployments.

Suitable for

• Shallow 19" server racks and compact equipment cabinets
• Outside broadcast (OB) vans and mobile streaming setups
• Control rooms and monitoring stations with limited space
• Environments requiring front-access console management

Key specifications

• Model: ATEN CL3100NX
• Display: 18.5" LED-backlit widescreen LCD
• Video port type: VGA (up to 1920 x 1200 supported)
• Keyboard / Mouse ports: USB and PS/2
• Rack size: 1U, short-depth design for 19" racks
• Weight: 9.07 kg
• Product colour: Black
• Power: AC input, wide voltage range (100–240 V)

How to use

Install the CL3100NX into a compatible 19" rack using the appropriate rack-mount kit if required. Connect the console's VGA, keyboard and mouse interfaces to the target KVM switch or directly to a computer using the provided cables or compatible connectors for USB/PS-2 and VGA. Use the front-panel USB port for an external mouse if needed, or connect a second console via the rear-panel VGA and USB keyboard/mouse ports. Connect audio speakers to the mini stereo ports when audio is required. Apply AC power within the specified voltage range and follow site safety procedures when mounting and powering the unit.

Recommendations

For reliable operation in rack environments, install the CL3100NX in a properly ventilated rack, secure the unit with the correct mounting accessories, and use high-quality VGA and USB/PS-2 cables. Refer to ATEN’s compatible accessories for optional rack-mount kits.
