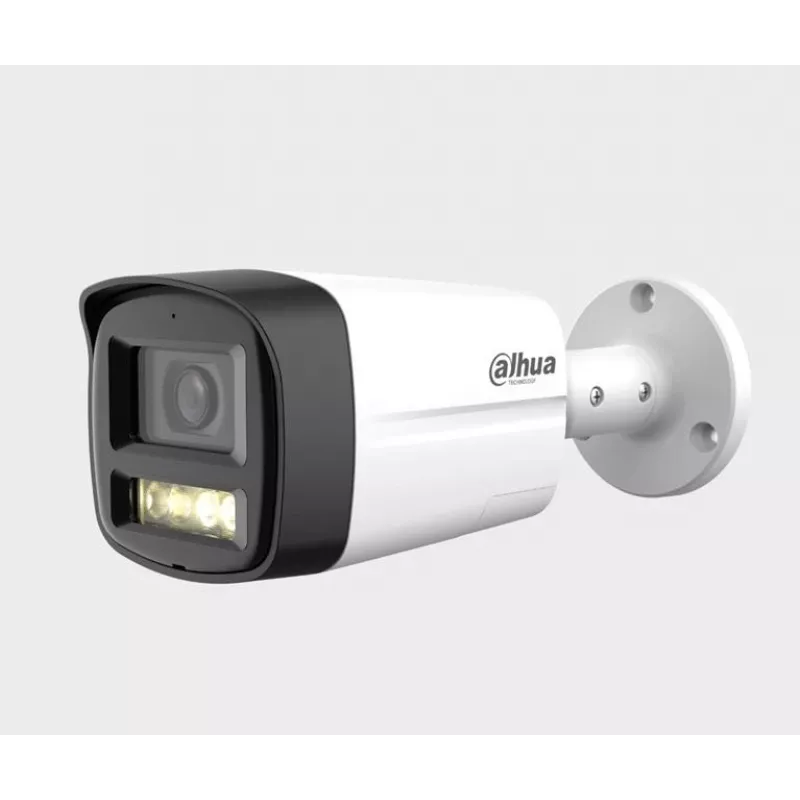

DAHUA HFW1500TLM-IL-T-0280B Câmara HDCVI IR Bullet 5MP, 5MP, IR, formato Bullet

Compact outdoor HDCVI camera with a 3.6 mm fixed lens and 2880 × 1620 effective pixels, designed for HDTV/megapixel surveillance. The camera supports HDCVI video interface, has a minimum illumination of 0.001 Lux for low-light capture and an electronic shutter range up to 1/100,000 s. Power is supplied by 12 VDC (±30%). Dimensions: 198.4 mm × 80.2 mm × 76.2 mm.

Advantages

This HDCVI outdoor camera provides high-resolution imaging at 2880 × 1620 pixels with a compact M12-mounted 3.6 mm lens. Low minimum illumination (0.001 Lux) improves performance in dim conditions, while the wide electronic shutter range (PAL: 1/25 s–1/100,000 s; NTSC: 1/30 s–1/100,000 s) allows flexible exposure control. The camera uses a standard 12 VDC power supply, suitable for typical CCTV installations.

Key specifications

• Type: HDTV / Megapixel / Outdoor
• Video interface: HDCVI
• Focal length: 3.6 mm
• Lens mount: M12
• Effective pixels: 2880 (H) × 1620 (V)
• Min. illumination: 0.001 Lux
• Electronic shutter speed: PAL 1/25 s–1/100,000 s; NTSC 1/30 s–1/100,000 s
• Power supply requirements: 12 VDC (±30%) — recommended to use a dedicated power adapter per camera
• Dimensions: 198.4 mm × 80.2 mm × 76.2 mm

How to use

Install the camera in a suitable outdoor location with a clear field of view and secure mounting. Connect video and power according to HDCVI and 12 VDC standards; use a recommended power adapter for each camera to ensure stable supply. Adjust focus if needed via the M12 lens mount and configure shutter settings on the recorder or camera interface to match lighting conditions (use PAL or NTSC values as applicable).

Recommendations

For reliable operation, mount the camera in a weather-protected position or ensure proper sealing, use a quality 12 VDC power adapter rated for the camera, and verify recorder compatibility with HDCVI signals. Regularly check lens cleanliness to maintain image quality.
