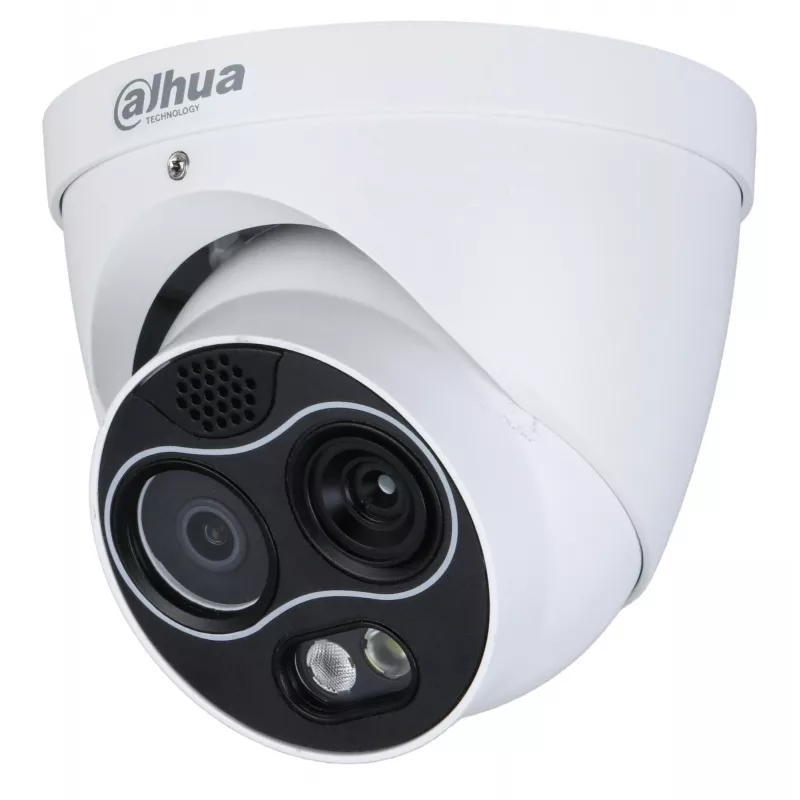

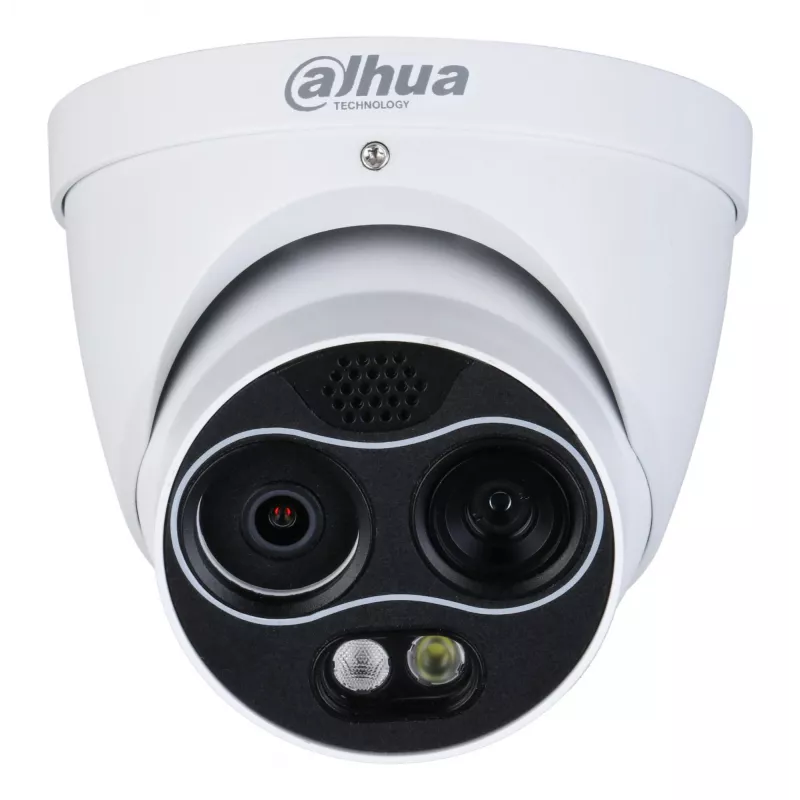

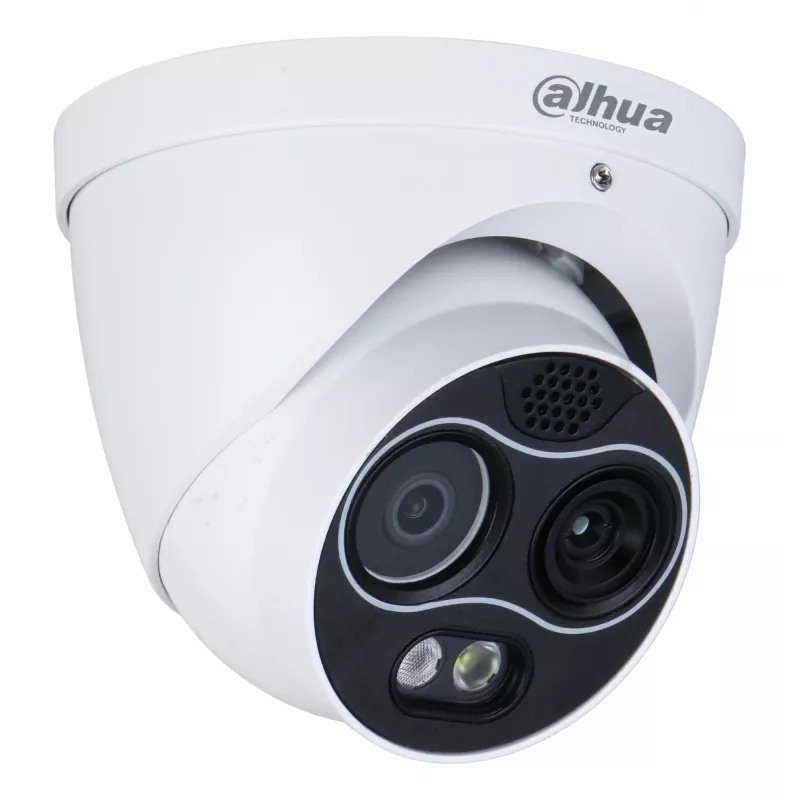

Dahua TPC-DF1241-TB3F4-DW-S8-V1 Câmara IP Térmica e Visível de Espectro Duplo, 4MP, Térmica 256x192, IP67, IK10

The Dahua TPC-DF1241-TB3F4-DW-S8-V1 is a high-performance dual-spectrum IP camera combining thermal and visible imaging for 24/7 perimeter protection and fire detection. With a 256x192 thermal sensor and 4MP visible sensor, it delivers reliable surveillance in challenging environments. Built to withstand harsh conditions with IP67 and IK10 ratings, this camera is ideal for critical infrastructure, industrial sites, and outdoor security.

Advantages

Dual-spectrum technology provides both thermal and visual monitoring, enabling early fire detection and intrusion alerts. The camera supports intelligent functions like perimeter protection and SMD Plus for accurate human/vehicle detection. Its robust design ensures operation in extreme temperatures from -30°C to +60°C.

Suitable for

• Perimeter security for industrial facilities, power plants, and warehouses
• Fire prevention in forests, landfills, and chemical storage areas
• Critical infrastructure protection (airports, railways, data centers)
• Outdoor surveillance requiring vandal-resistant and weatherproof equipment

Key specifications

• Thermal sensor: 256x192 resolution, 3.5mm lens, 50.6°x37.8° FOV
• Visible sensor: 4MP (2688x1520), 4mm lens, 84°x45°x99° FOV
• IR illumination: up to 30m
• Video compression: H.265/H.264/MJPEG
• Intelligent analytics: perimeter protection, SMD Plus, fire detection
• Audio: built-in mic and speaker, 1-ch in/1-ch out
• Alarm: 2-ch in/2-ch out
• Storage: microSD slot up to 256GB
• Network: RJ-45 10/100 Base-T
• Power: 12V DC or PoE (802.3af), max 12W
• Protection: IP67, IK10
• Operating temperature: -30°C to +60°C

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the camera is mounted securely to withstand vandalism. Pair with Dahua NVR for seamless integration and advanced analytics.
