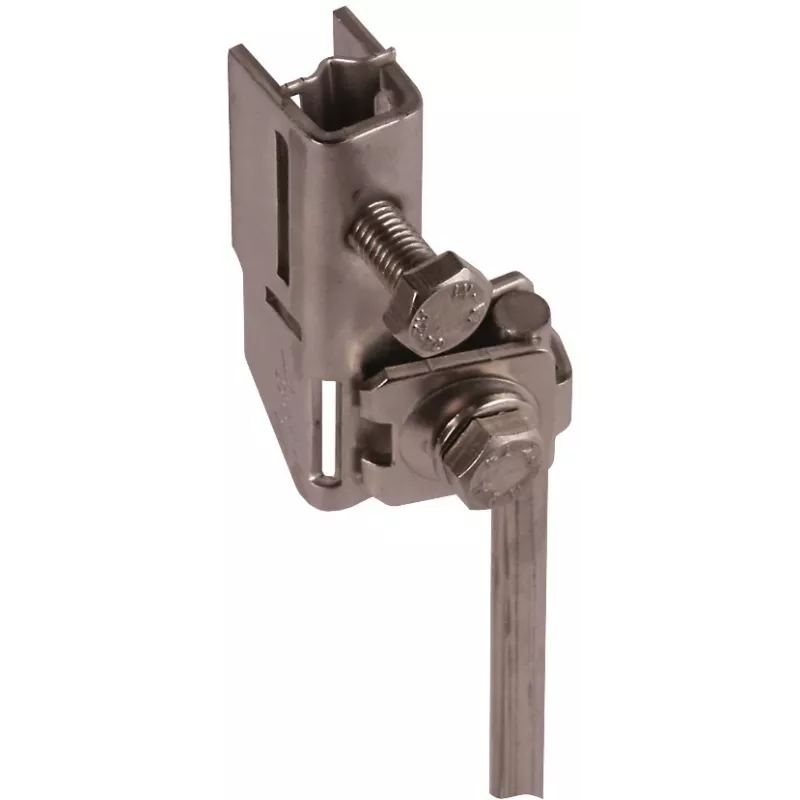

DEHN 540110 Cabeça de fixação para condutor plano em aço inoxidável 25x0,3 mm

Securing flat conductors in lightning protection and earthing systems demands a reliable, corrosion-resistant connection. The DEHN 540110 clamping head is built for that task, providing a firm mechanical and electrical bond for stainless steel flat conductors measuring 25 mm wide and 0.3 mm thick.

Who is it for

Electricians, lightning protection installers, and maintenance technicians working on outdoor or indoor earthing and lightning protection installations. It suits projects where stainless steel conductors are specified for durability and low maintenance.

Main features

• Compatible with 25 x 0.3 mm stainless steel (NIRO) flat conductors
• Stainless steel construction for high corrosion resistance
• Screw connection for secure fastening and electrical continuity
• Designed for use in lightning protection and earthing systems

Specifications

• Product type: Clamping head
• Conductor type: Flat conductor
• Compatible conductor material: Stainless steel (NIRO)
• Compatible conductor width: 25 mm
• Compatible conductor thickness: 0.3 mm
• Material: Stainless steel
• Connection type: Screw connection
• Mounting type: For securing flat conductors
• Usage environment: Outdoor and indoor

Tips

Ensure the conductor surface is clean before clamping to achieve low contact resistance. Use a torque wrench to tighten the screw to the manufacturer's recommended value for a durable connection.
