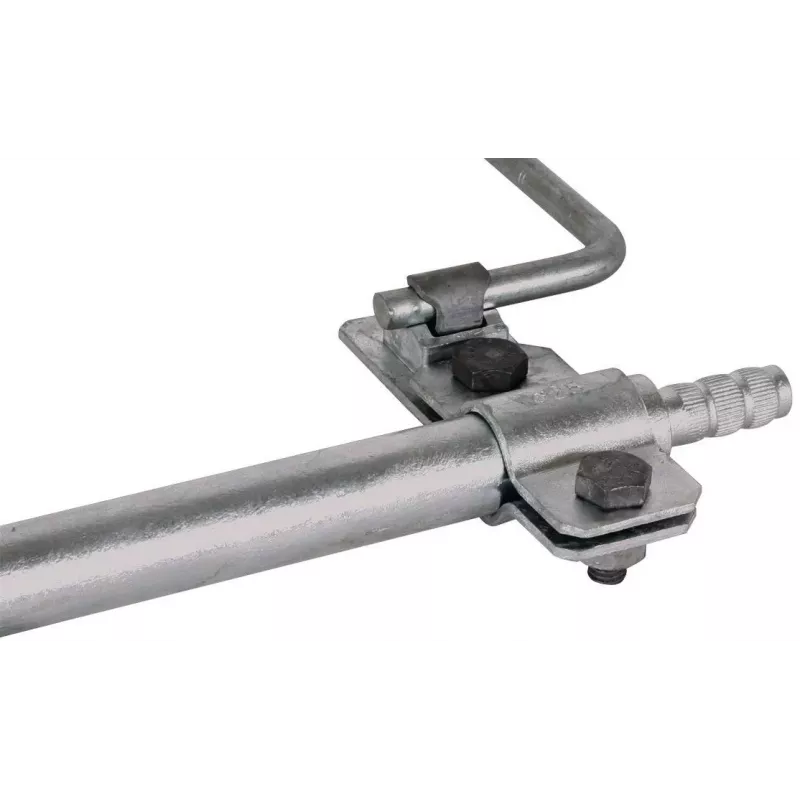

DEHN 625011 Terminal de ligação St/tZn 25mm

Connection clamp for lightning protection and earthing systems, featuring hot-dip galvanized steel construction for high corrosion resistance. Suitable for connecting round conductors of 8-10 mm diameter or flat conductors up to 30 mm width.

Advantages

Hot-dip galvanized steel ensures long-term durability in outdoor and indoor environments. Screw connection with M8 hexagon head screw provides secure and reliable clamping.

Suitable for

• Lightning protection systems
• Earthing and equipotential bonding
• Round conductors 8-10 mm
• Flat conductors up to 30 mm

Key specifications

• Material: Hot-dip galvanized steel (St/tZn)
• Conductor type: Round or flat
• Round conductor diameter: 8-10 mm
• Flat conductor clamping range: up to 30 mm
• Connection type: Screw connection
• Screw: M8 hexagon head, hot-dip galvanized steel
• Impulse current (Iimp): 100 kA (10/350 µs)
• AC current (Ipeak): 50 kA (50 Hz)
• Operating temperature range: -40°C to +80°C
• Standard compliance: EN 62561-1

Recommendations

For use in lightning protection and earthing installations where corrosion resistance and high current carrying capacity are required.
