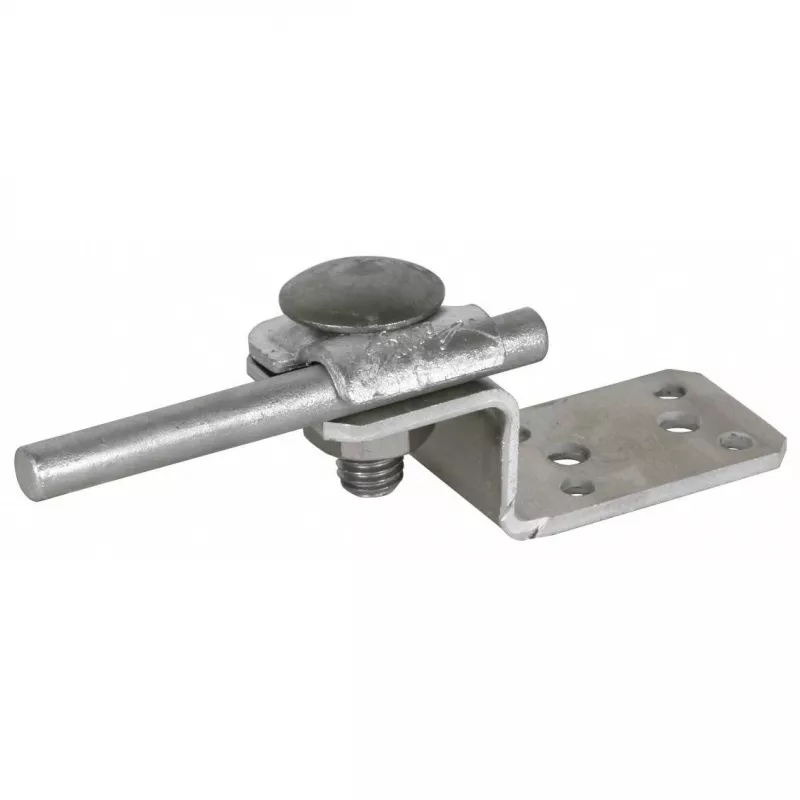

DEHN lingueta de ligação 377100 em forma de Z alumínio

The DEHN 377100 connection lug stands out for its Z-shaped design, which simplifies the connection of round and flat conductors in lightning protection and grounding systems. Made from aluminium, it offers a lightweight yet robust solution for secure electrical bonding in outdoor and indoor environments.

Highlights

• Z-shape profile for easy installation between different conductor types
• Aluminium construction provides high corrosion resistance and electrical conductivity
• Suitable for round conductors 8-10 mm and flat conductors 30-40 mm
• Two mounting holes with 11 mm diameter for screw connection

In daily use

This connection lug is used in lightning protection, grounding, and equipotential bonding applications. Its Z-form allows for a secure and space-saving connection, ensuring reliable performance across a wide temperature range from -40°C to +80°C. The natural aluminium surface requires no additional treatment, making it a practical choice for installers.

Full specifications

• Material: Aluminium
• Shape: Z-shape
• Conductor type (round): Rd 8-10 mm
• Conductor type (flat): Fl 30-40 mm
• Mounting hole diameter: 11 mm
• Number of mounting holes: 2
• Connection method: Screw connection
• Standard compliance: EN 62561-1
• Corrosion resistance: High
• Suitable for: Outdoor and indoor use
• Temperature range: -40°C to +80°C
• Surface treatment: Untreated / natural aluminium
• Electrical conductivity: High
• UV resistance: Yes
• Product type: Connection lug / connecting plate

Final note

With its Z-shaped design and aluminium construction, the DEHN 377100 provides a dependable connection solution for lightning protection and grounding systems.
