DELL 540-11365 placa de rede interna Ethernet 1000 Mbit/s

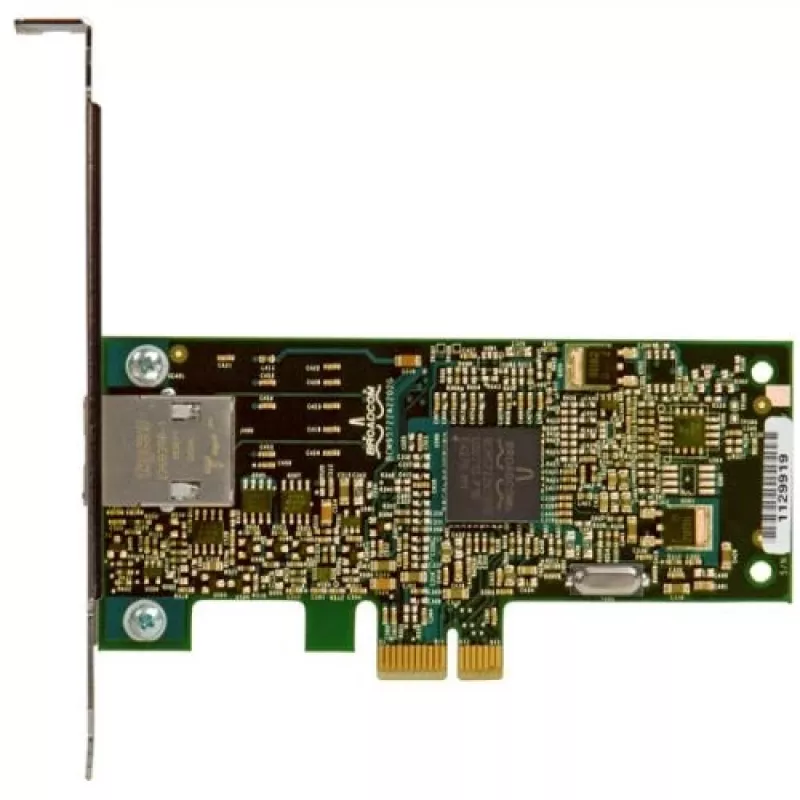

The DELL 540-11365 Internal Ethernet 1000 Mbit/s is an internal network card designed to add wired Gigabit connectivity to compatible systems. Featuring a PCI Express x1 host interface and a Broadcom BCM5722-based controller, the card supports 10/100/1000BASE-T operation over standard Category 5 UTP cable and implements on-chip buffer memory and a full-featured MAC for reliable data transfer and duplex modes across network speeds.

Advantages

The card delivers stable wired Gigabit performance with low power consumption thanks to a 1.2V CMOS design and integrated DSP-based physical layer functions such as adaptive equalization, echo and crosstalk cancellation. Its PCIe x1 interface provides broad compatibility with modern motherboards while the on-chip processor enables efficient frame processing. The black PCB and compact form factor make it suitable for various workstation and server interiors.

Suitable for

• Upgrading desktop or workstation network speed to Gigabit Ethernet
• Wired network connectivity for office PCs and small servers
• Systems requiring a PCIe x1 internal Ethernet adapter
• Environments using standard Cat5/Cat5e cabling for 10/100/1000 Mbps links

Key specifications

• Network standard: 10/100/1000BASE-T Ethernet
• Maximum data rate: 1000 Mbit/s (Gigabit)
• Host interface: PCI Express x1 (PCIe v1.1 compatible)
• Controller chipset: Broadcom BCM5722-based solution
• Physical medium: Standard Category 5 UTP cable support
• Duplex modes: Full and half duplex support
• On-chip features: Buffer memory, MAC, DSP-based PHY functions
• Power: Low-voltage 1.2V CMOS implementation for reduced power draw
• Color/finish: Black

How to use

Install the network card into an available PCI Express x1 slot on your motherboard, secure it to the chassis, and connect a Cat5/Cat5e or higher Ethernet cable between the card's RJ‑45 port and your network switch or router. After powering on the system, install the appropriate drivers supplied by the operating system or from Dell to enable full functionality. Verify link speed and duplex settings in the operating system network configuration or adapter properties to ensure Gigabit connection where supported by the network.

Recommendations

For stable Gigabit performance, use Cat5e or Cat6 cabling and a compatible Gigabit switch or router. Ensure the system BIOS and OS network drivers are up to date and test the connection speed after installation. The card is compatible with systems such as the Precision Workstation T1700; verify physical slot availability before purchase.
