DIGITUS fibra ótica A-I-DQ(ZN)BH 24G50/125µ, MM, OM4, 24 fibras

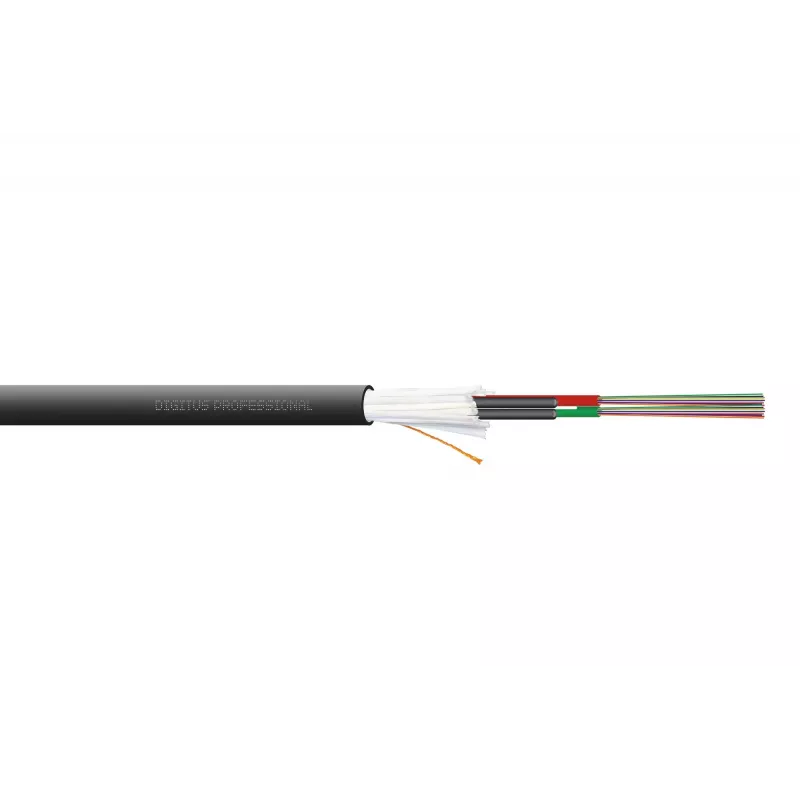

The DIGITUS LWL A-I-DQ(ZN)BH 24G50/125µ, MM, OM4, 24 Fibers is a high-quality fiber optic cable designed for reliable data transmission in demanding network environments. This cable features 24 fibers with a 50/125 micron core/cladding diameter, OM4 multimode performance, and a robust construction suitable for indoor and outdoor use.

Advantages

OM4 multimode fiber supports high-speed data rates up to 40/100 Gbps over longer distances compared to OM3. The 24-fiber count allows for dense connectivity, reducing the need for multiple cables. The cable is designed for easy installation and long-term reliability.

Suitable for

• Data centers
• Enterprise networks
• Telecommunications infrastructure
• High-speed backbone connections

Key specifications

• Fiber type: Multimode OM4
• Core/Cladding: 50/125 µm
• Number of fibers: 24
• Connector type: A-I-DQ(ZN)BH (LC duplex, APC polish)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Wavelength: 850 nm / 1300 nm
• Attenuation: ≤ 3.0 dB/km @ 850 nm, ≤ 1.0 dB/km @ 1300 nm
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +80°C

Recommendations

For optimal performance, use with OM4-compatible transceivers and ensure proper cable management to avoid bending beyond the minimum bend radius.
