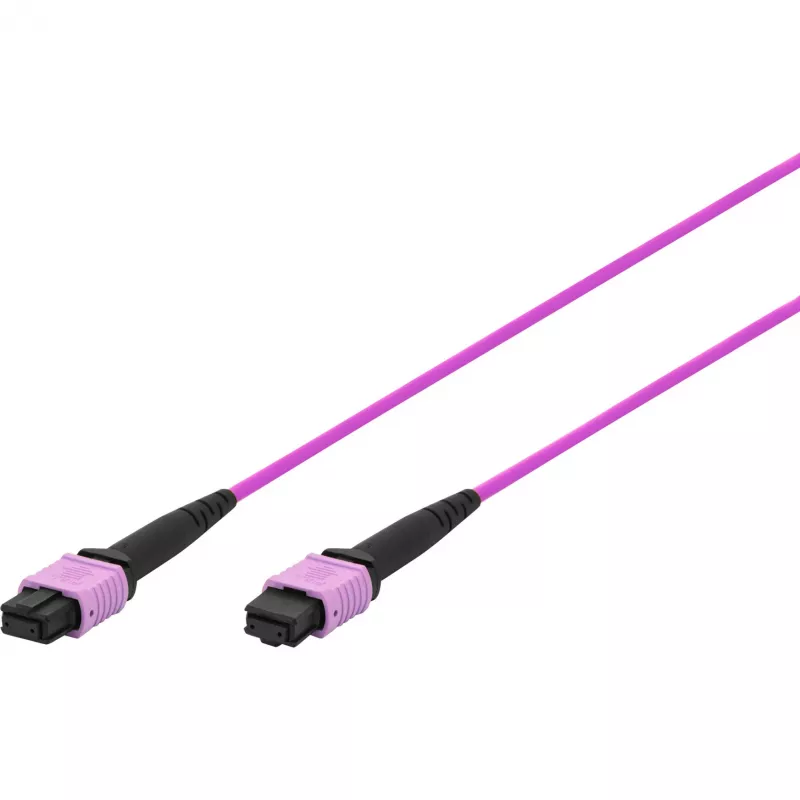

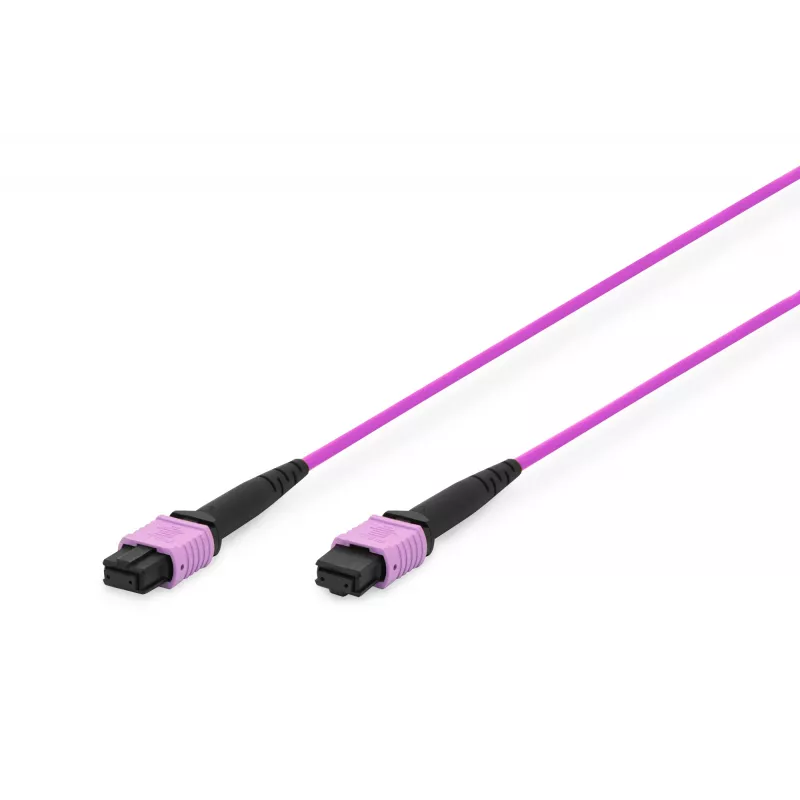

DIGITUS OM4 cabo de patch MPO para MPO de 12 fibras, 2m, método A, violeta DK-2566-02/4

In high-density data centers, every connection counts. This DIGITUS OM4 MPO to MPO patch cable delivers reliable 40/100 Gigabit Ethernet links for backbone and aggregation layers. Pre-terminated with 12 fibers in a single MPO connector, it simplifies deployment and reduces cabling clutter.

Key specifications

• Fiber type: Multimode OM4, 50/125 µm core/cladding
• Connectors: MPO Female to MPO Female, 12 fibers
• Polarity: Method A (straight-through)
• Length: 2 meters
• Jacket: LSZH (Low Smoke Zero Halogen), violet
• Insertion loss: ≤ 0.35 dB per connector
• Return loss: ≥ 20 dB
• Attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/km @ 1300 nm
• Bandwidth: 4700 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Operating temperature: -20°C to +70°C
• Compliance: RoHS, REACH

Why choose it

Engineered for performance and ease of use, this cable features high-quality MPO connectors with precise alignment, ensuring stable connections in demanding environments. The LSZH jacket emits low smoke and no halogen in case of fire, enhancing safety. The violet color clearly identifies OM4 fiber, preventing mix-ups.

Ideal use cases

• Data center backbone cabling
• High-speed parallel optics (40G/100G SR4)
• Storage area networks (SAN)
• Telecom central offices

Good to know

MPO polarity Method A uses a straight-through key-up to key-down configuration, which is compatible with many transceiver types. Always verify polarity requirements for your equipment. This cable is factory terminated and tested, saving installation time and reducing errors.
