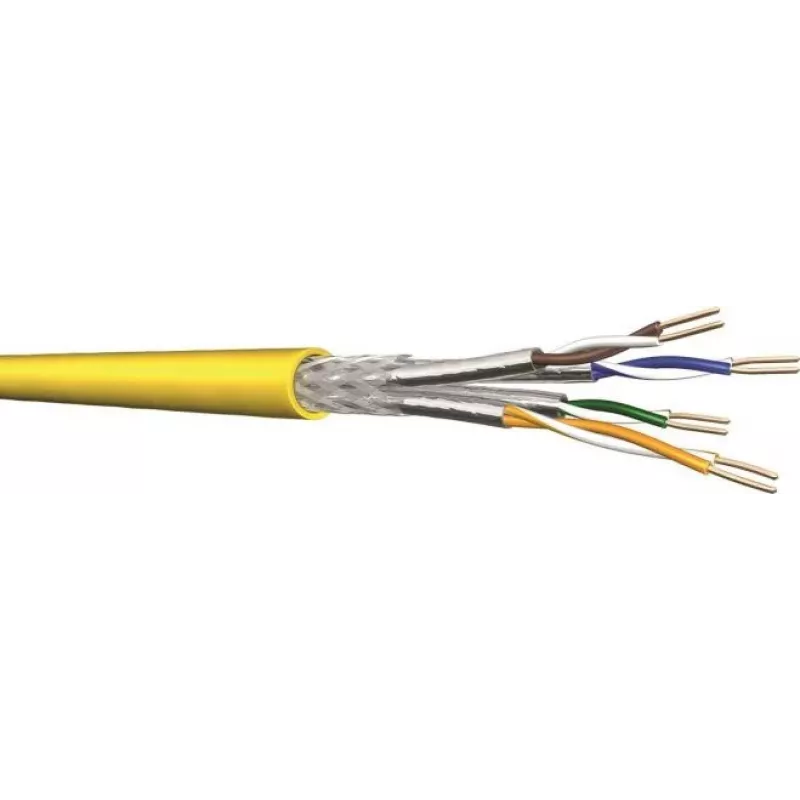

DRAKA UC HomeCat.7 Cabo bruto S/FTP 4x2 AWG22 LSHF-FR 200m caixa dispensadora 60095153

Running high-speed data cabling in a home or small office often means choosing between performance and safety. The DRAKA UC HomeCat.7 raw cable solves that problem by delivering Cat.7a performance in a halogen-free, flame-retardant jacket, so you get 10 Gigabit Ethernet without compromising on fire safety.

Who is it for

This bulk cable is for installers and advanced users who need to pull custom-length network runs. It comes in a 200 m dispenser box that keeps the cable tangle-free during installation. The solid bare copper conductors and S/FTP shielding make it suitable for permanent links in walls, ceilings, and cable trays.

Main features

• Category 7a performance up to 1000 MHz
• S/FTP shielding: individual foil per pair plus overall braid
• LSHF-FR jacket: low smoke, halogen-free, flame retardant
• Solid bare copper conductors, AWG 22
• 4 pairs (8 conductors) for 10GBASE-T Ethernet
• 200 m dispenser box for easy pulling

Specifications

• Cable standard: Category 7a (Cat.7a)
• Cable type: Network bulk cable
• Length: 200 m
• Conductor gauge: AWG 22
• Number of pairs: 4
• Number of conductors: 8 (4x2)
• Shielding type: S/FTP (Screened/Foiled Twisted Pair)
• Jacket material: LSHF-FR (Low Smoke Halogen Free - Flame Retardant)
• Conductor material: Bare copper
• Conductor type: Solid
• Frequency bandwidth: Up to 1000 MHz
• Data transfer rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Impedance: 100 Ohm
• Outer diameter: Approx. 7.5 mm
• Packaging: Dispenser box
• Application: Structured cabling, data networks, home networks
• Standard compliance: ISO/IEC 11801, EN 50173
• Flame retardancy standard: IEC 60332-1-2, IEC 60332-3-24
• Halogen free standard: IEC 60754-2
• Smoke density standard: IEC 61034-2

Tips

When terminating this cable, use Cat.7a rated connectors and keep the twist rate as close to the connector as possible. The LSHF-FR jacket is slightly stiffer than PVC, so allow a bit more bend radius when routing.
