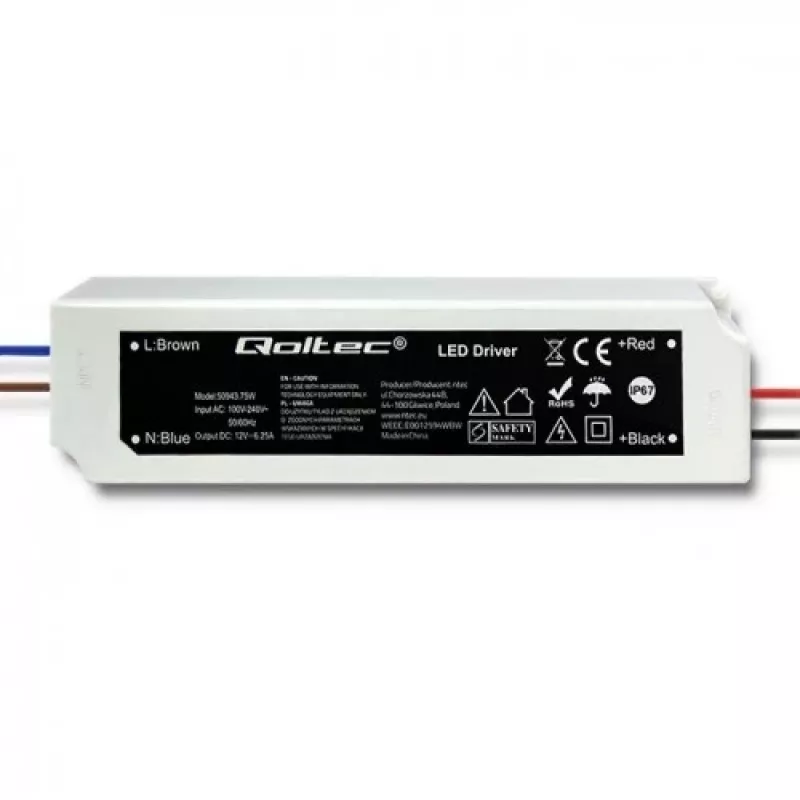

Driver LED Qoltec 50943

The Qoltec 50943 is a waterproof LED driver designed to supply power to LED strips, modules, panels, bulbs and other 12 VDC devices. It delivers a stable 12 V output at up to 6.25 A (75 W) and is built for use both indoors and outdoors thanks to its IP67 protection rating. The driver accepts a wide AC input range (90–264 V) and has a compact form factor (31 mm × 161 mm × 43 mm) for flexible installation.

Advantages

The unit provides a constant 12 V output with a maximum power of 75 W and 6.25 A current, ensuring compatibility with a wide range of 12 V LED products. IP67 protection offers resistance against dust and temporary immersion in water, enabling outdoor and damp-environment installations. The broad AC input range (90–264 V) allows operation in different mains environments, while the compact dimensions simplify mounting in constrained spaces.

Suitable for

Key specifications

How to use

Mount the driver in a location that meets the IP67 environmental requirements and allows for safe cable routing. Connect the AC mains input (90–264 V) to the input terminals following local electrical codes. Connect the 12 V DC output to the LED load, observing correct polarity. Ensure the total connected load does not exceed 75 W (6.25 A). After connections are secure, apply power and verify correct operation of the LED fixtures.

Recommendations

For long-term reliability, avoid placing the driver where it will be exposed to continuous submersion or extreme temperatures. Use appropriate cable glands and waterproof connectors for outdoor installations and ensure the combined LED load stays within the specified 75 W limit.
