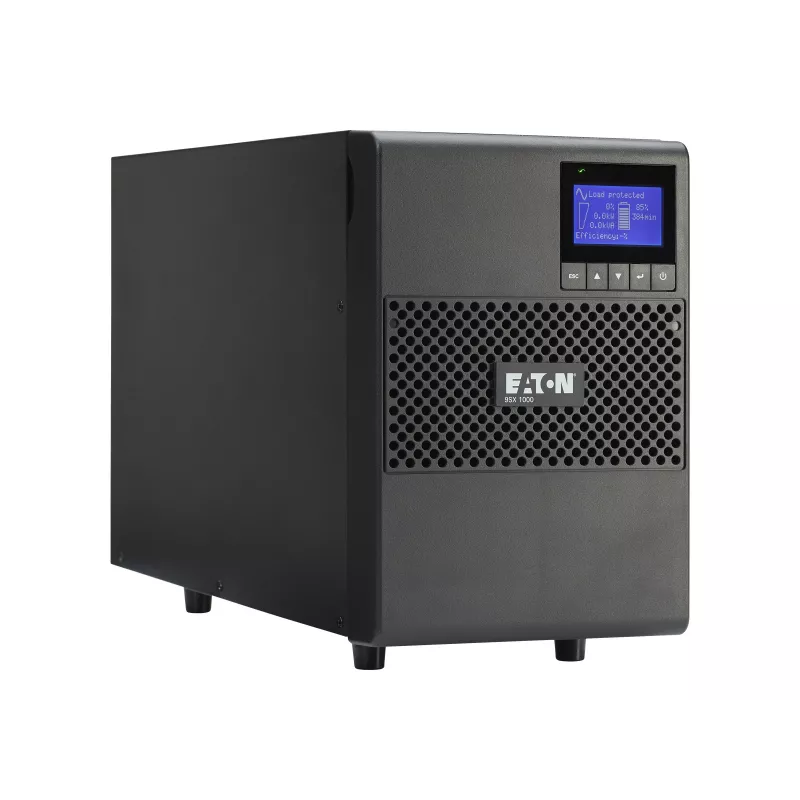

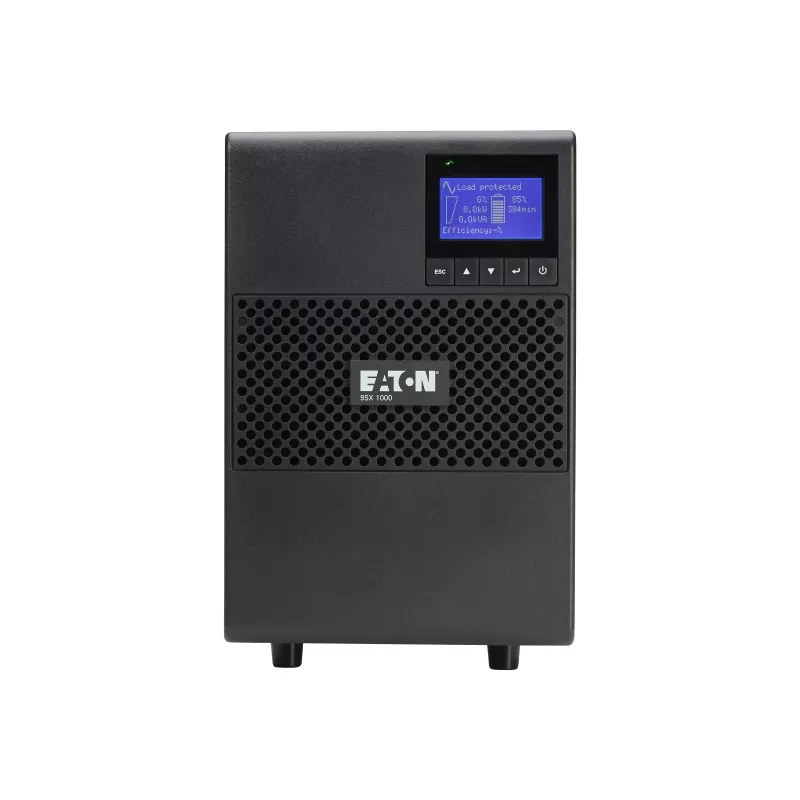

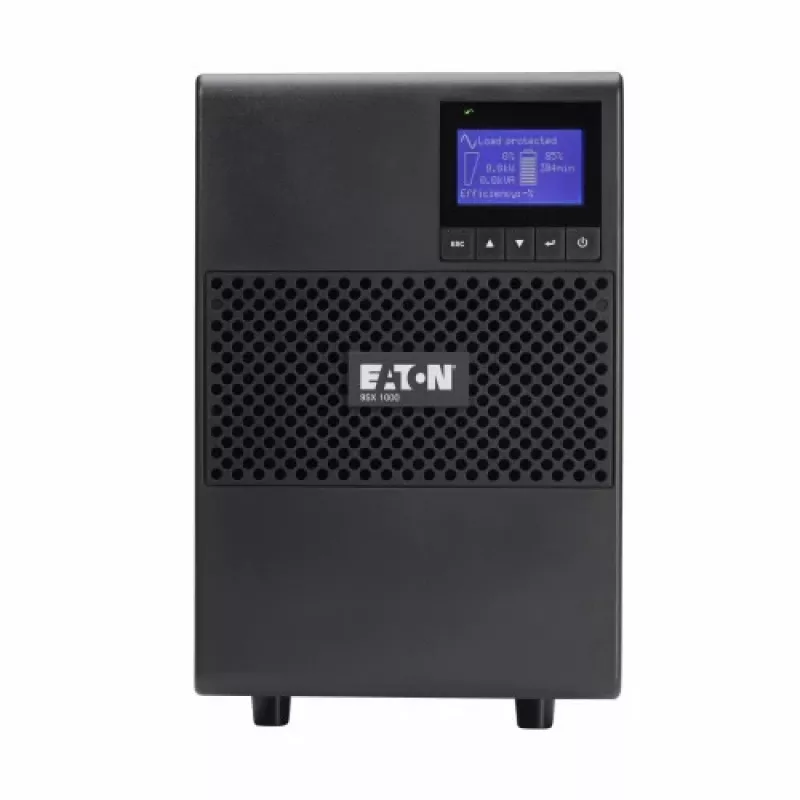

Eaton 9SX 9SX1000 UPS - AC 100/110/120/125 V

The Eaton 9SX 9SX1000 is a high-performance uninterruptible power supply (UPS) designed to provide reliable power protection for critical equipment. With an input voltage range of 100/110/120/125 V AC, it ensures stable operation in various electrical environments. This online double-conversion UPS delivers pure sine wave output, safeguarding servers, network devices, and sensitive electronics from power disturbances.

Advantages

• Advanced double-conversion technology for continuous power conditioning
• Compact tower design saves valuable floor space

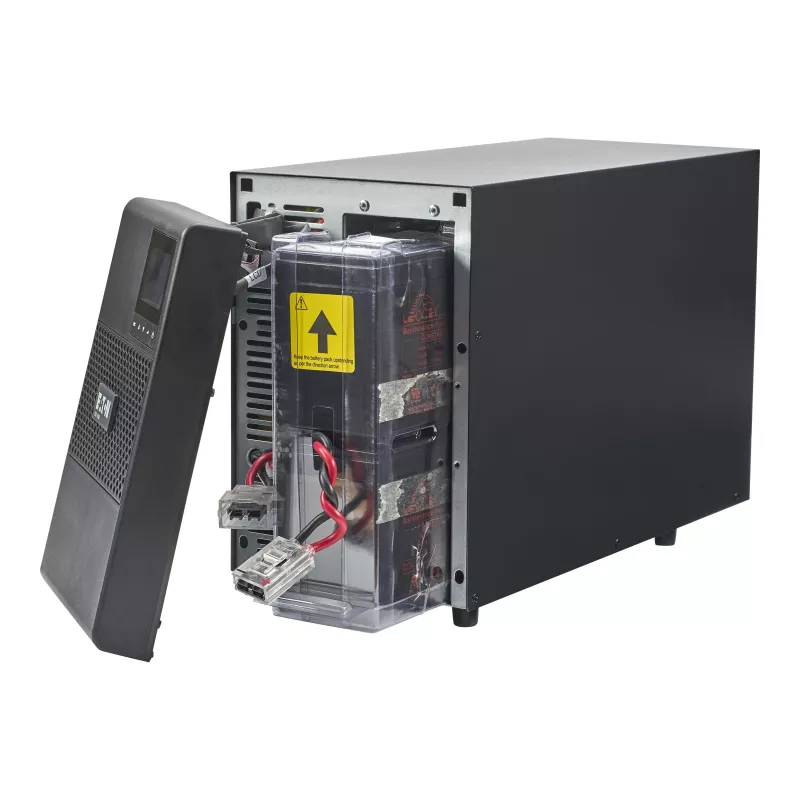

• Hot-swappable batteries for easy maintenance without downtime
• Intelligent battery management extends battery life
• Energy-saving mode reduces operating costs

Suitable for

• Small to medium-sized businesses
• Server rooms and network closets
• Telecommunications equipment
• Medical and industrial applications

Key specifications

• Model: 9SX1000
• Input voltage: 100/110/120/125 V AC
• Output power capacity: 1000 VA / 900 W
• Form factor: Tower
• Topology: Online double-conversion
• Output waveform: Pure sine wave
• Battery type: Sealed lead-acid, hot-swappable

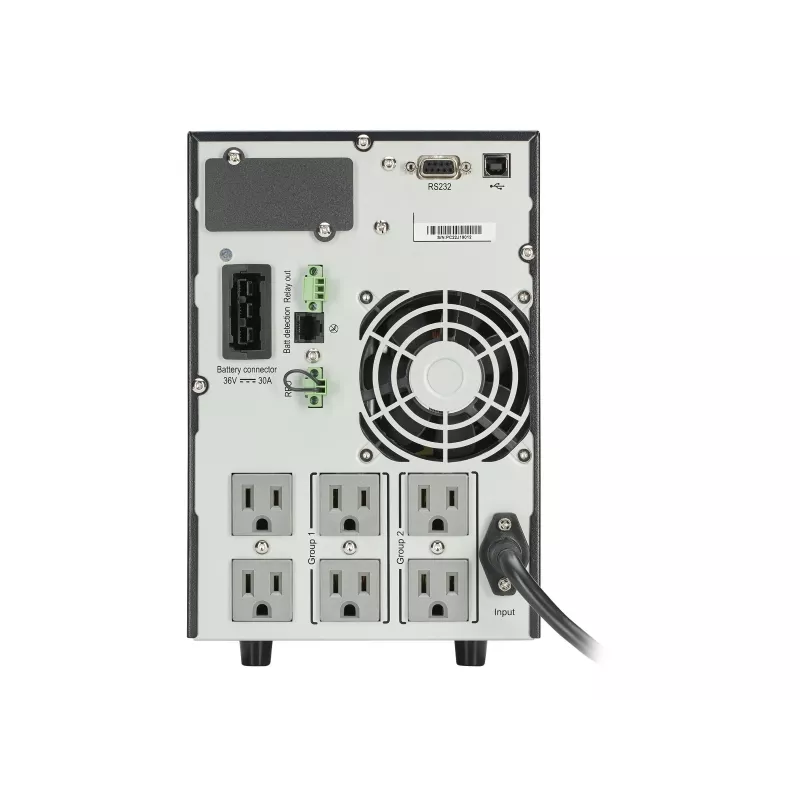

• Communication ports: USB, RS-232, and optional network card
• Certifications: CE, UL, IEC

Recommendations

For optimal performance, pair the Eaton 9SX1000 with Eaton's network management card for remote monitoring and control. Ensure proper ventilation and avoid overloading the UPS beyond its rated capacity.
