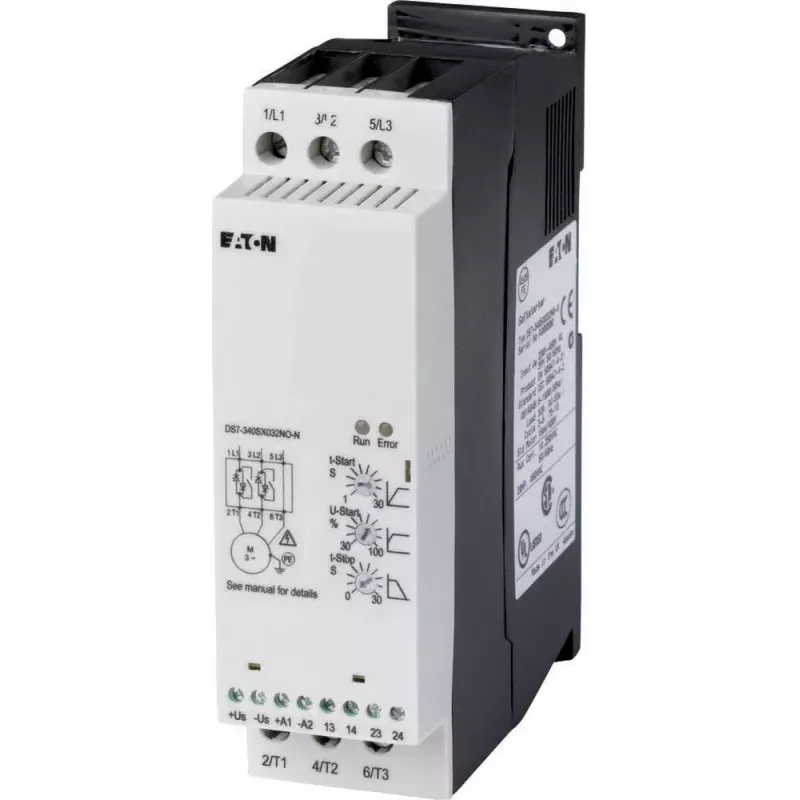

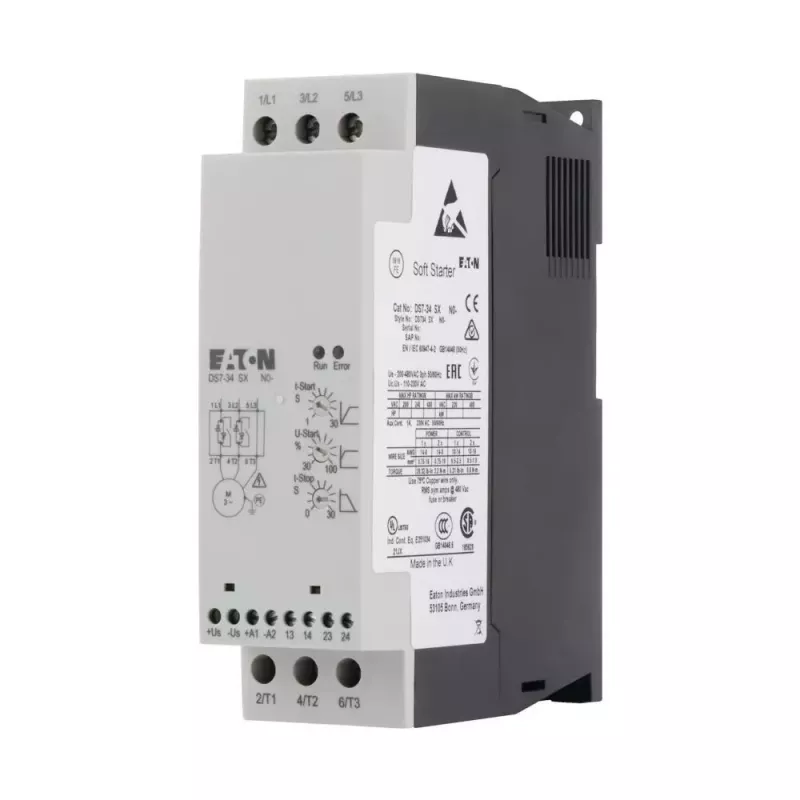

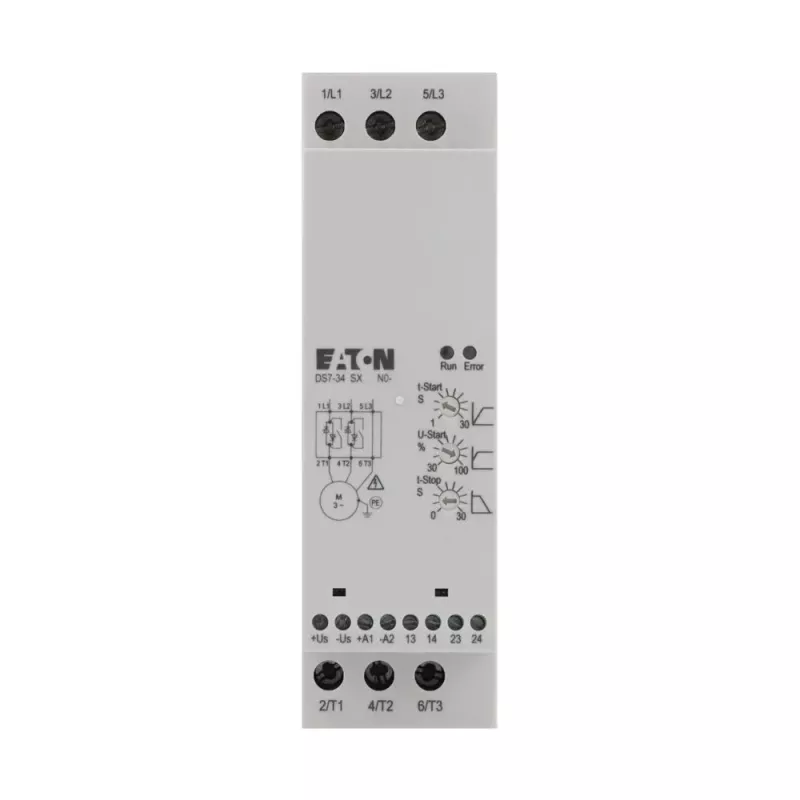

Eaton DS7-342SX024N0-N Arrancador suave, 24 A, 200-480 V AC, comando 24 V AC/DC, 11 kW

For panel builders and machine OEMs integrating motor control into industrial equipment, the Eaton DS7-342SX024N0-N soft starter provides smooth starting and stopping of three-phase motors up to 11 kW. Its compact design and DIN rail or screw mounting simplify installation in control cabinets.

Key specifications

• Rated operational current: 24 A
• Rated operational voltage: 200–480 V AC
• Control voltage: 24 V AC/DC
• Motor power at 400 V: 11 kW (15 HP at 480 V)
• Integrated bypass and electronic overload protection
• Degree of protection: IP20
• Operating temperature: -25 to +50 °C

Why choose it

The DS7 series offers reliable soft starting with built-in bypass, reducing wiring complexity and heat dissipation. Electronic overload protection safeguards the motor without external devices.

Ideal use cases

• Conveyor systems
• Pumps and fans
• Packaging machinery
• HVAC equipment

Good to know

The DS7-342SX024N0-N is a basic model without communication interfaces, suitable for standalone applications. It complies with IEC/EN 60947-4-2, UL, and CSA standards.
