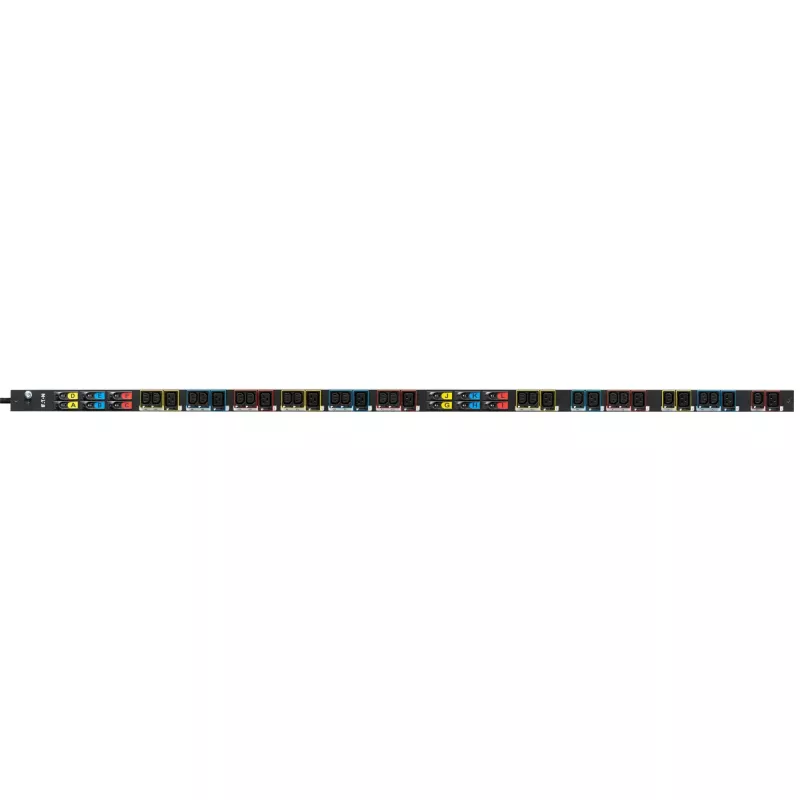

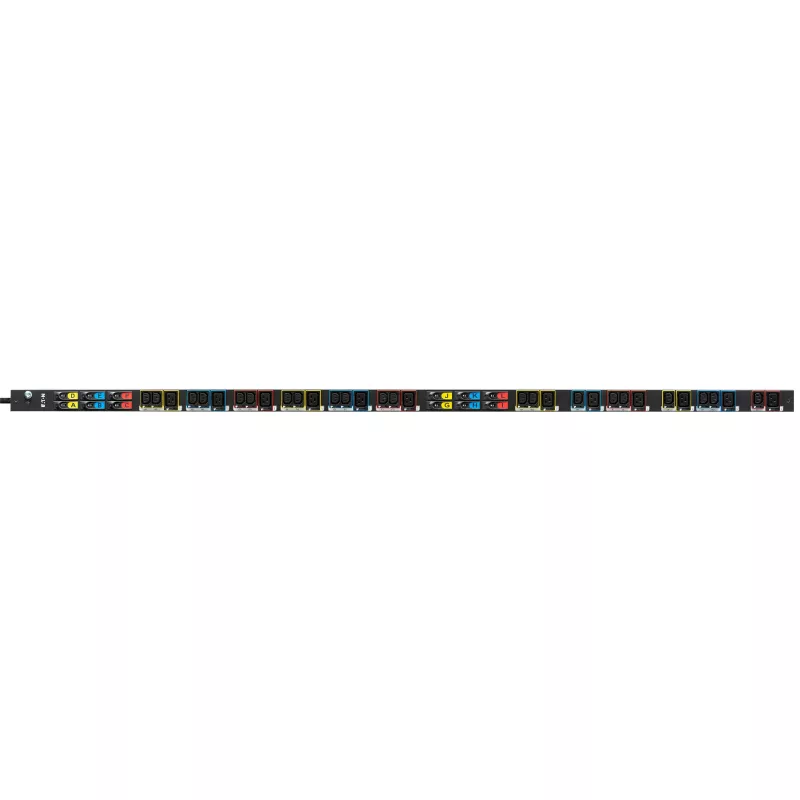

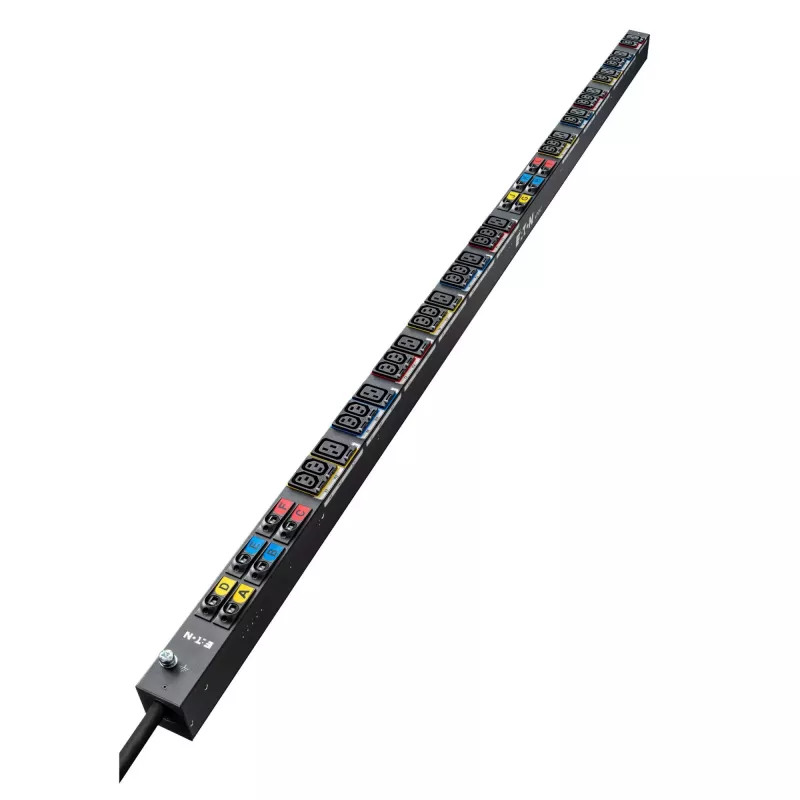

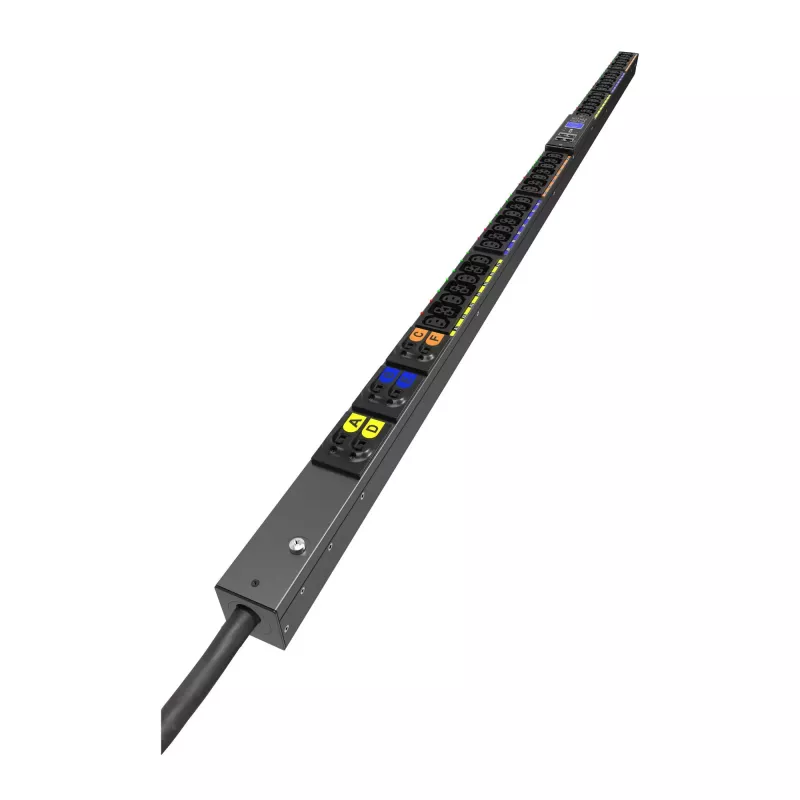

EATON ePDU EPDU BA 0U (309 63A 3P) 21xC13:12xC19 PDU básica

The EATON ePDU EPDU BA 0U is a high-capacity basic power distribution unit designed for data centers and server rooms requiring reliable 3-phase power distribution. With a 63A input and 33 outlets (21x C13 + 12x C19), it efficiently powers multiple devices in a compact 0U vertical form factor.

Advantages

This PDU offers robust power distribution without metering or switching, ensuring cost-effective and straightforward deployment. Its vertical 0U design saves valuable rack space, and the 3-meter input cable provides flexible installation options. The mixed C13 and C19 outlets accommodate a wide range of equipment.

Suitable for

• Data centers and server rooms requiring high-density power distribution
• Rack-mounted IT equipment such as servers, switches, and storage devices
• Applications needing 3-phase 230/400V input with 63A capacity

Key specifications

• PDU Type: Basic Power Distribution Unit
• Form Factor: 0U Vertical Rackmount
• Input Connector: IEC 60309 63A 3P+N+E
• Input Current: 63 A
• Input Voltage: 230/400V AC (3-Phase)
• Power Capacity: 43.5 kVA (at 400V)
• Output Receptacles: 21 x IEC C13, 12 x IEC C19
• Total Outlets: 33
• Output Voltage: 230V AC (per phase)
• Input Cord Length: 3 m
• Mounting Orientation: Vertical
• Chassis Material: Steel
• Color: Black
• Operating Temperature: 0°C to 60°C
• Relative Humidity: 5% to 95% (non-condensing)

Recommendations

For optimal performance, ensure upstream overcurrent protection is provided. This PDU is ideal for high-power density environments where basic power distribution is sufficient.
