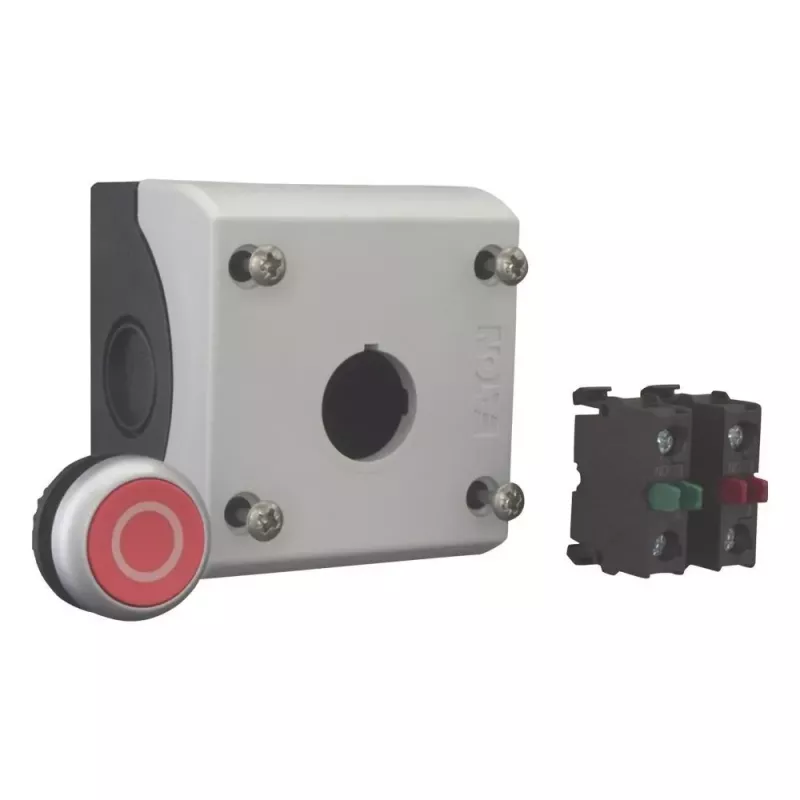

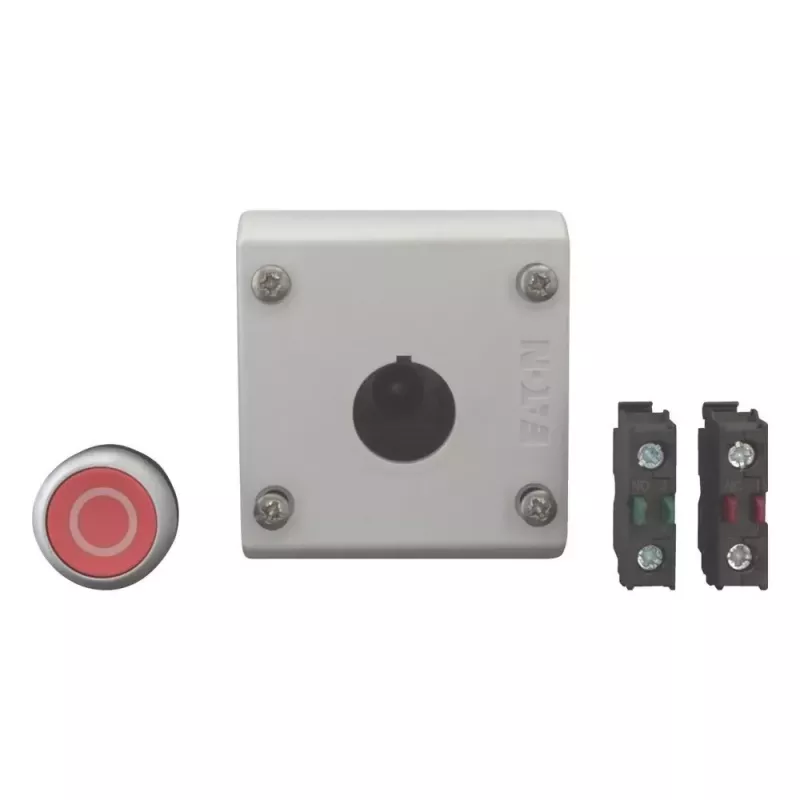

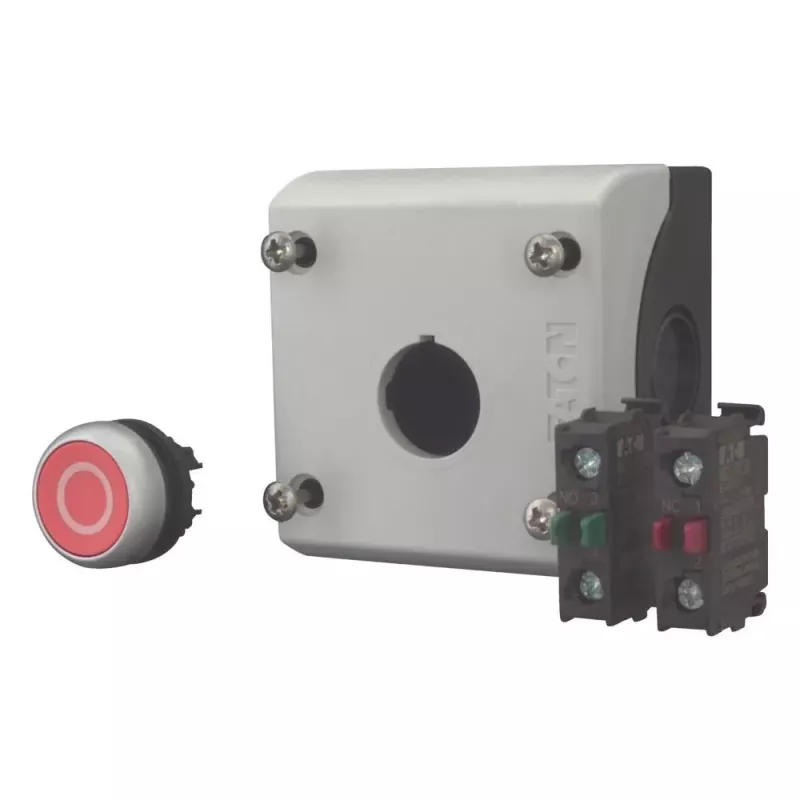

Eaton M22-D-R-X0/KC11/I Acionador de botão de pressão com bloco de contactos, Vermelho, Titânio, Plástico, IP66/IP67/IP69 216521

This Eaton M22 pushbutton actuator with integrated contact block offers a robust momentary switching solution for industrial control panels. Its red actuator and titanium-coloured plastic bezel provide clear visual indication, while the 22.5 mm mounting diameter ensures compatibility with standard panel cut-outs.

Advantages

The unit combines a momentary pushbutton actuator with a 1 NO + 1 NC contact block, enabling both make and break functions in a single compact device. Front protection ratings of IP66, IP67, and IP69 make it suitable for demanding environments where resistance to dust, water, and high-pressure cleaning is required.

Suitable for

• Machine control panels and operator stations
• Industrial automation and process control systems
• Applications requiring frequent switching with high mechanical durability

Key specifications

• Actuator colour: Red
• Bezel colour: Titanium
• Bezel material: Plastic
• Contact configuration: 1 NO + 1 NC
• Mounting diameter: 22.5 mm
• Front protection: IP66, IP67, IP69
• Rated operational voltage: 500V AC/DC
• Rated operational current: 6A (AC-15, 230V); 3A (DC-13, 24V)
• Mechanical durability: > 5 million operations
• Electrical durability: > 0.5 million operations
• Operating temperature: -25 to +70 °C
• Terminal type: Screw terminals

Recommendations

For panel builders and maintenance engineers seeking a reliable, sealed pushbutton with dual contacts, this Eaton M22 unit provides a proven solution.
