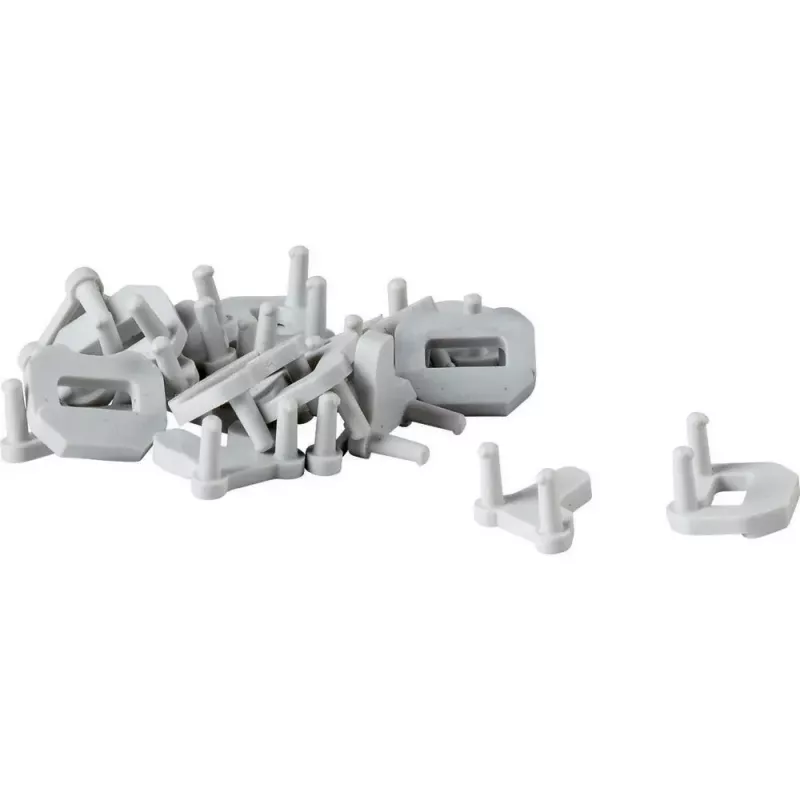

Eaton M22-XW4 conjunto de ponte de êmbolo, cinzento 116461

In control panels, operating two pushbuttons simultaneously can be challenging when a single action must trigger two circuits. The Eaton M22-XW4 Plunger Bridge Set solves this by mechanically linking two plungers, ensuring they actuate together for reliable two-hand control or interlocking applications.

Who is it for

Panel builders and machine designers who need to implement simultaneous actuation of two M22 pushbuttons or selector switches. It suits applications requiring two-hand operation for safety, or interlocking where two actions must occur together.

Main features

• Connects two plungers in the Eaton M22 modular system
• Enables simultaneous operation of two actuators
• Grey thermoplastic construction matches standard M22 accessories
• Compact design fits front panel mounting

Specifications

• Product type: Plunger Bridge Set
• Series compatibility: Eaton M22
• Colour: Grey
• Material: Thermoplastic
• Number of pieces: 1
• Operating temperature range: -25 to +70 °C
• Storage temperature range: -40 to +80 °C
• Standards: IEC/EN 60947-5-1
• RoHS compliance: Yes
• REACH compliance: Yes

Tips

Ensure both plungers are correctly aligned before tightening the bridge set. Use with Eaton M22 contact blocks for reliable simultaneous switching.
