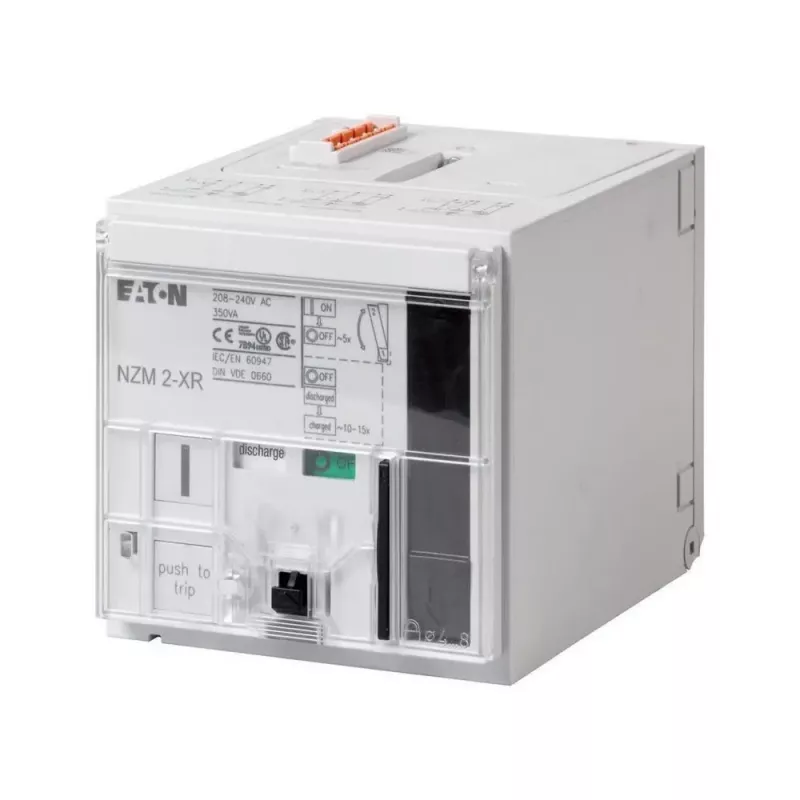

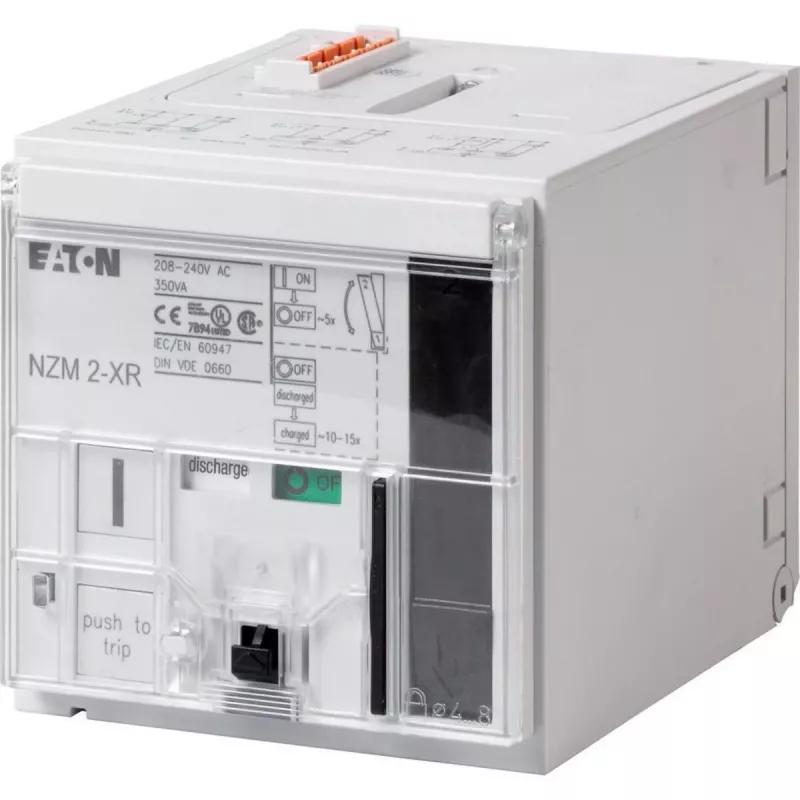

Eaton operador de comando remoto para BG2 NZM2-XR208-240AC (259832)

Circuit breakers often need to be operated from a distance, but manual switching is not always practical. The Eaton Remote Operator 259832 solves this by enabling remote ON/OFF switching and tripping for NZM2 series circuit breakers.

Who is it for

This remote operator is intended for panel builders and maintenance teams who need to control Eaton NZM2 circuit breakers remotely in industrial or commercial installations.

Main features

• Electrical remote control for Eaton NZM2, N(S)2, NZM2-S, and N(S)2-S circuit breakers
• Operating voltage: 208-240 V AC, 50/60 Hz
• Manual override capability
• Automatic reset after tripping
• Two changeover contacts (1NO/1NC) for position indication
• Direct mounting to circuit breaker
• Degree of protection: IP20 when installed

Specifications

• Brand: Eaton
• Model: 259832
• MPN: 259832
• EAN: 4015082598327
• Product Type: Motor Operator / Remote Operator
• Compatibility: Eaton NZM2, N(S)2, NZM2-S, N(S)2-S circuit breakers, frame size BG2
• Operating Voltage: 208-240 V AC
• Frequency: 50/60 Hz
• Control Type: Electrical Remote Control
• Function: Remote ON/OFF switching and tripping
• Mounting Type: Direct mounting to circuit breaker
• Manual Override: Yes
• Reset Function: Automatic reset after tripping
• Auxiliary Contacts: 2 changeover contacts (1NO/1NC)
• Degree of Protection (Installed): IP20
• Operating Temperature Range: -25°C to +70°C
• Storage Temperature Range: -40°C to +80°C
• Current Type: AC

Tips

Ensure the circuit breaker is de-energized before mounting the remote operator. Verify that the supply voltage matches the rated 208-240 V AC.
