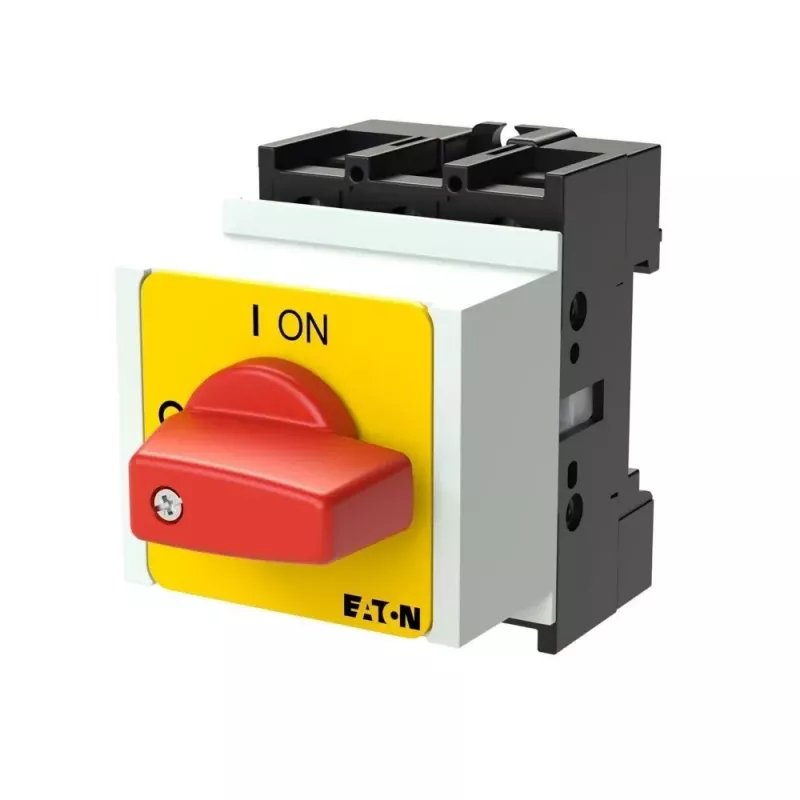

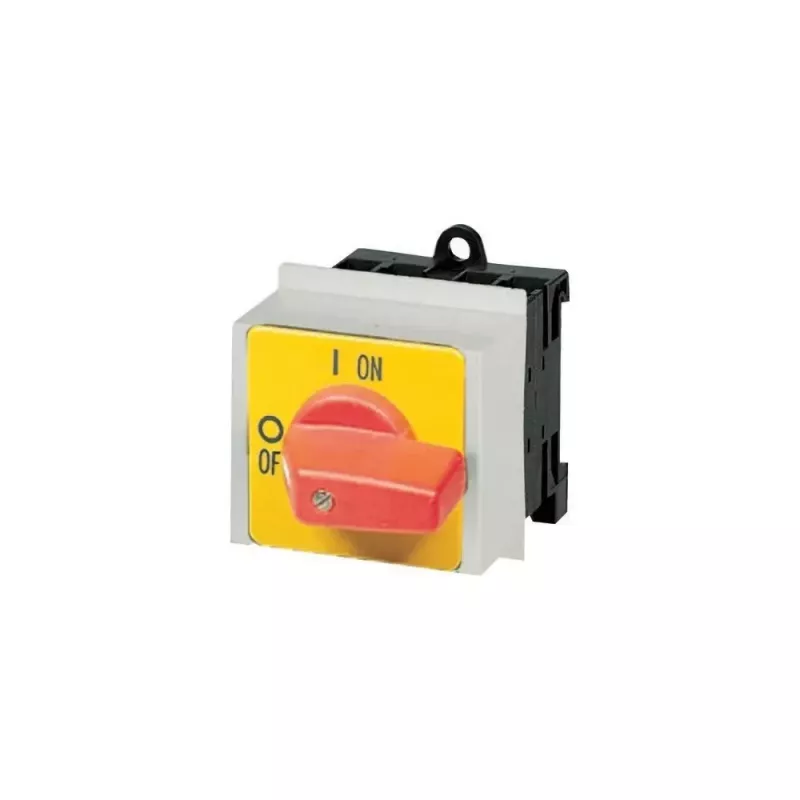

Eaton P1-25/IVS-RT comutador principal 3 polos 25A I-0-II montagem em painel frontal preto 013140

Manual changeover between two power sources or circuits requires a switch that is reliable, safe, and easy to operate. The Eaton P1-25/IVS-RT main changeover switch provides a robust 3-pole solution with a clear I-0-II switching function, ensuring dependable power source selection in industrial and commercial applications.

Who is it for

Electrical engineers, panel builders, and maintenance technicians who need a front-mounting changeover switch for control panels, machinery, or backup power systems. It is suitable for applications requiring a 25 A rated uninterrupted current and high switching durability.

Main features

• 3-pole main changeover switch with I-0-II (ON-OFF-ON) switching function
• Rated uninterrupted current of 25 A and rated operational voltage up to 690 V AC
• Front panel mounting with central fixing for easy installation
• High mechanical durability of 100,000 operations and electrical durability of 50,000 operations
• IP65 protection on the front and IP20 on terminals
• Screw terminals with capacity for conductors from 1.5 mm² to 6 mm²
• Black handle for clear visual indication

Specifications

• Switch type: Main changeover switch
• Number of poles: 3
• Rated uninterrupted current (Iu): 25 A
• Switching function: I-0-II
• Mounting type: Front panel mounting (central mounting)
• Rated operational voltage (Ue): 690 V AC
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated conditional short-circuit current (Iq): 50 kA (with 25A gG/gL fuse)
• Degree of protection (front): IP65
• Degree of protection (terminals): IP20
• Mechanical durability: 100,000 operations
• Electrical durability: 50,000 operations
• Connection type: Screw terminals
• Terminal capacity: 1 x 1.5 - 6 mm² / 2 x 1.5 - 2.5 mm²
• Switching angle: 90°
• Handle colour: Black
• Standards: IEC/EN 60947

Tips

Ensure the switch is mounted in a dry, vibration-free location and that conductors are properly torqued according to the terminal specifications. For applications with high short-circuit currents, use the recommended 25 A gG/gL fuse for protection.
