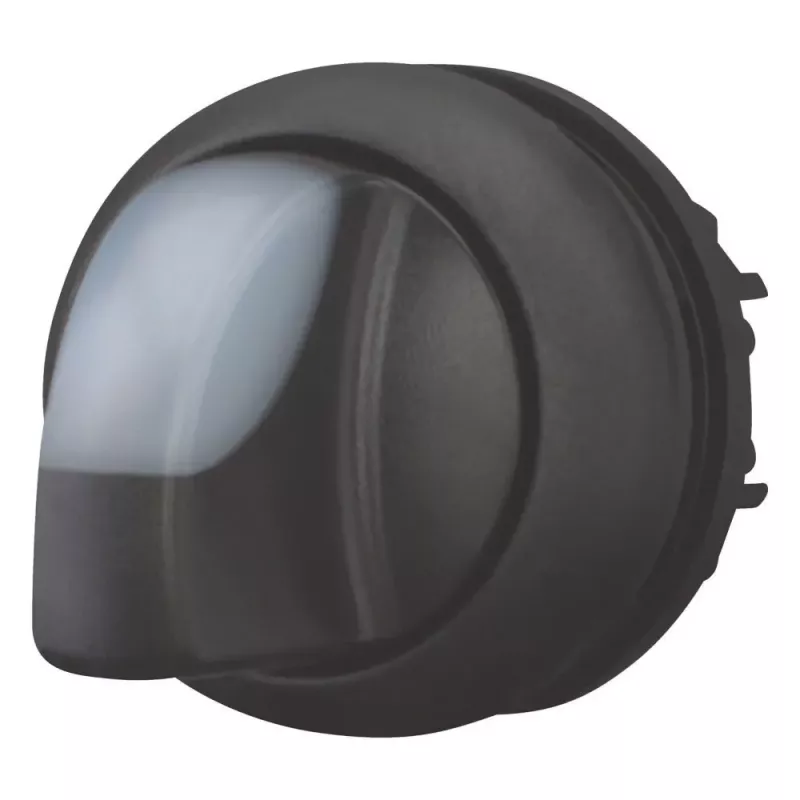

EATON RMQ-Titan M22 interruptor rotativo, 3 posições, branco, com retenção, iluminável 216834

Selector switch with toggle handle for industrial control panels. Three maintained positions with 2 x 45° switching angle. White actuator, front protection IP66/IP67/IP69K. Illumination possible with separate M22-LED element (not included).

Advantages

Robust construction for harsh environments. High mechanical life over 100,000 operations. Modular RMQ-Titan system allows flexible combination with contact blocks and LED elements.

Suitable for

• Machine control panels
• Conveyor systems
• Industrial automation

Key specifications

• Mounting diameter: 22.5 mm
• Operating temperature: -25 to +70 °C
• Material: high-grade plastic
• Standards: IEC/EN 60947-5-1, VDE 0660

Recommendations

Order contact blocks and LED element separately to complete the switch.
