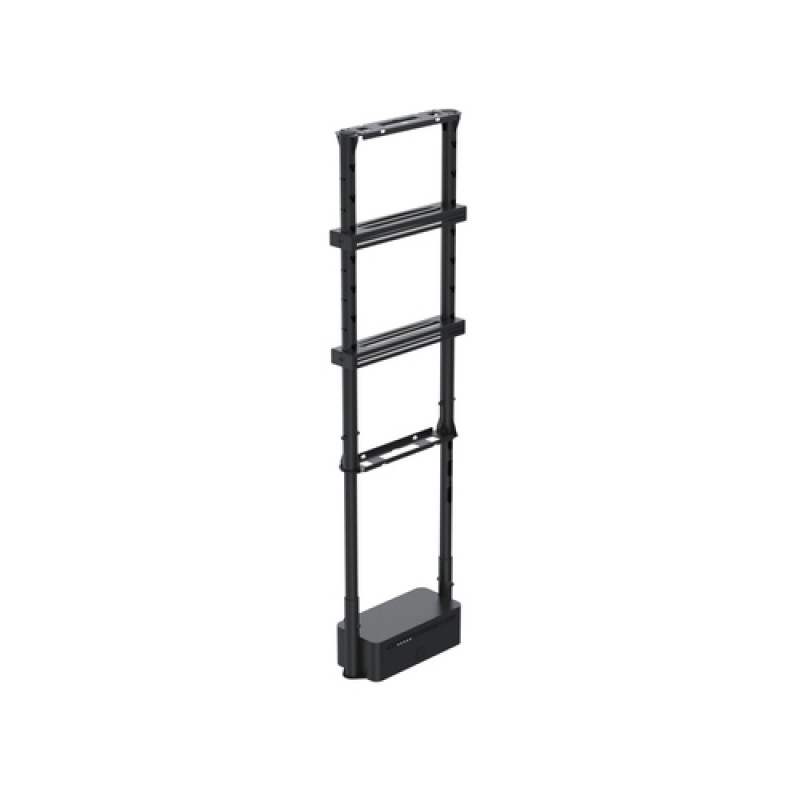

Ergonomic Solutions Suporte de janela de dupla face ajustável em altura para formato retrato

In retail and hospitality environments, counter space is precious and customer-facing displays need to be both secure and easily adjustable. The Ergonomic Solutions SPDS41011-02 solves this by mounting dual displays directly onto glass or window surfaces, freeing up valuable workspace while providing a stable, height-adjustable platform for portrait-oriented screens.

Who is it for

This mount is ideal for point-of-sale stations, information kiosks, digital signage, and interactive customer service areas where two displays or tablets are used simultaneously. It suits businesses that need to present information in portrait orientation, such as menu boards, wayfinding, or product catalogs, while maintaining a clean, professional look.

Main features

• Dual-sided design supports two displays or tablets back-to-back, maximizing visibility from both sides of a window or glass partition.
• Height adjustment range of 200mm to 450mm allows users to position screens at the optimal viewing height for standing or seated interactions.
• Each display can tilt +/-20 degrees and swivel 360 degrees for flexible viewing angles; screens can be rotated 360 degrees for easy switching between portrait and landscape.
• Tool-free installation with heavy-duty suction cups and locking levers attaches securely to smooth, non-porous glass without drilling or permanent modification.
• Integrated cable management clips keep wires tidy and out of the way, reducing clutter and trip hazards.
• Anti-theft screw-down clamps and optional padlock loop deter tampering and theft in public areas.
• Constructed from high-grade aluminum alloy, steel, and ABS plastic in matte black for durability and a sleek appearance.

Specifications

• Mounting type: Window suction cup / clamp hybrid
• Display capacity: Dual (two displays/tablets)
• Supported orientation: Portrait (primary), landscape (secondary via rotation)
• Height adjustment range: 200mm - 450mm (from mounting surface to display center)
• Tilt angle: +/-20 degrees per display
• Swivel angle: 360 degrees at pole connection
• Screen rotation: 360 degrees
• Max load capacity: 5 kg (11 lbs) per side, 10 kg (22 lbs) total
• Material: High-grade aluminum alloy, steel, ABS plastic
• Color: Matte black
• VESA compatibility: 75x75mm, 100x100mm
• Tablet clamp range: 150mm - 260mm (fits most 7-13 inch tablets)
• Arm reach: Fixed, approx. 150mm from pole center to display center
• Compatible mounting surface: Smooth, non-porous glass or window
• Application environment: Retail, hospitality, information kiosks, POS

Tips

Ensure the glass surface is clean and dry before attaching the suction cups for maximum grip. For added security in high-traffic areas, use the optional padlock loop. When adjusting height, loosen the locking mechanism, reposition, and re-tighten to prevent slippage. For tablet use, verify that your device's dimensions fall within the clamp range for a secure fit.
