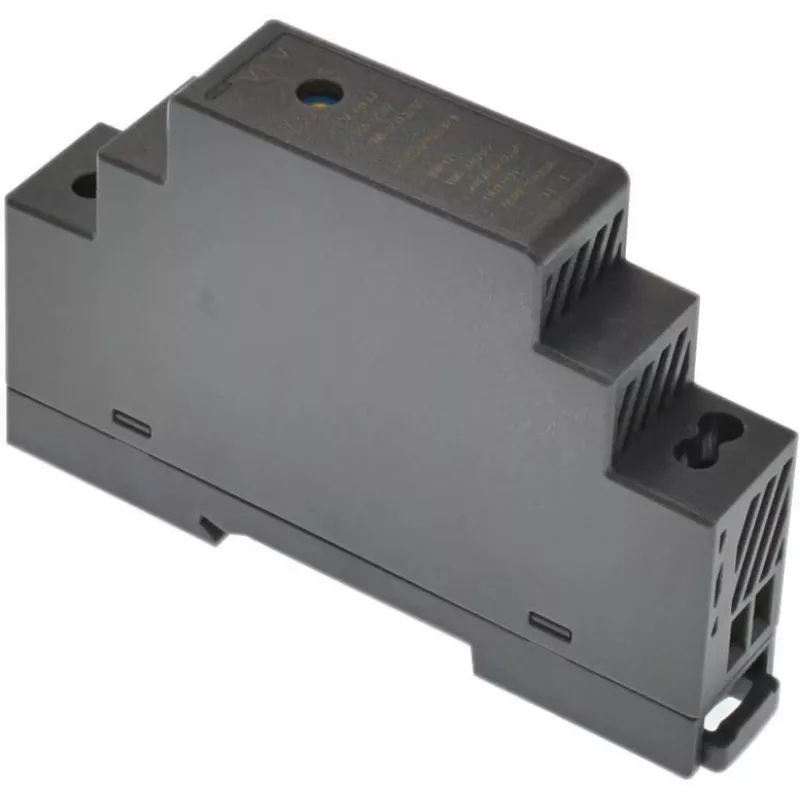

ESPE HDN-1512 Fonte de alimentação para calha DIN 12V/15W/1,25A

The ESPE HDN-1512 is a high-performance DIN rail power supply designed for industrial and commercial applications. It delivers a stable 12V DC output with 15W power and 1.25A current, ensuring reliable operation for your automation, control, and instrumentation systems. With a compact 1 DIN module width (17.5mm), it saves valuable cabinet space while providing robust protection features.

Advantages

This power supply offers high efficiency (>80%), wide input voltage range (85-264V AC / 120-370V DC), and comprehensive protections including short circuit, overload, and overvoltage. Its free air convection cooling ensures silent operation and long lifespan. The built-in LED indicator provides clear power status at a glance.

Suitable for

• Industrial automation and control panels
• Building management systems
• PLC and sensor power supply
• Security and access control systems
• Telecommunication equipment

Key specifications

• Input Voltage: 85-264V AC / 120-370V DC
• Output Voltage: 12V DC
• Output Current: 1.25A
• Output Power: 15W
• Efficiency: >80%
• Mounting: DIN Rail (TS-35/7.5 or TS-35/15)
• Protections: Short Circuit, Overload, Overvoltage
• Operating Temperature: -20°C to +70°C
• Ripple & Noise: <120mVp-p
• Isolation Voltage: 3kV AC (Input to Output)
• Cooling: Free Air Convection
• Housing Material: Plastic
• LED Indicator: Power On
• Safety Standards: EN 60950-1
• EMC Standards: EN 55032 Class B
• Module Width: 1 DIN Module (17.5mm)

Recommendations

For optimal performance, ensure proper ventilation and avoid exceeding the rated output. This power supply is ideal for use with ESPE and compatible DIN rail components. Always follow local electrical codes and safety regulations during installation.
