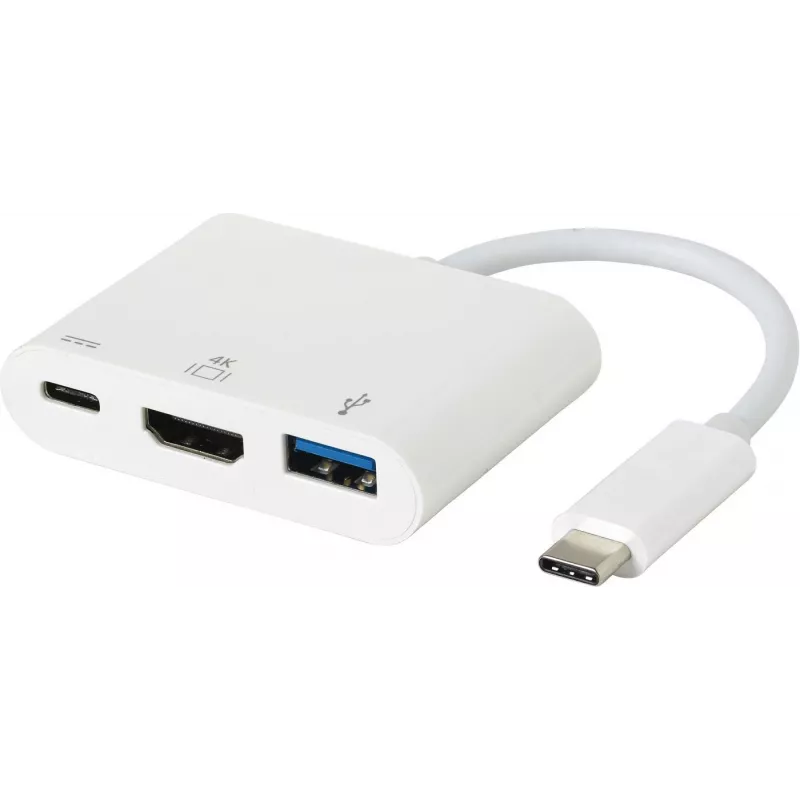

eSTUFF ES623001WH Hub de interfaces USB 3.2 Gen 1 (3.1 Gen 1) Type-C 5000 Mbit/s branco

The eSTUFF ES623001WH is a compact USB-C hub that adds an HDMI output, a USB 3.0 Type-A port and a USB-C power pass-through to a USB-C host. It supports USB 3.2 Gen 1 (up to 5 Gbit/s) data transfer, HDMI video output (DisplayPort 1.2 Alt Mode) with up to 3840 x 2160 resolution, and can charge the host device while supplying power to the adapter. The hub is bus-powered, comes in white and weighs approximately 60 g.

Advantages

This adapter combines a USB-A 3.0 port, HDMI output and a USB-C charging/pass-through in a single compact unit, enabling video output to external monitors while maintaining high-speed data transfer and allowing the host to be charged simultaneously. Its small form factor and light weight make it easy to carry with laptops and tablets that have a USB-C port.

Suitable for

• Connecting an external monitor to a MacBook, iPad or other USB-C device
• Attaching USB-A peripherals such as flash drives or external drives
• Using video output for presentations, video playback or slideshows
• Charging the host device while using the hub

Key specifications

• Model: eSTUFF ES623001WH
• Interfaces: USB-C Male x1 (input), USB-C Female x1 (power pass-through), USB-A 3.0 Female x1, HDMI Female x1
• USB standard: USB 3.2 Gen 1 (up to 5 Gbit/s)
• HDMI: DP 1.2 Alt Mode, up to 3840 x 2160 resolution
• Power: bus-powered with USB-C PD pass-through charging
• Colour: White
• Weight: 0.06 kg

How to use

Connect the USB-C male plug of the hub to a USB-C port on your laptop, tablet or other compatible device. Plug an HDMI cable from the hub's HDMI female port to an external monitor or TV for video output. Insert USB-A devices such as flash drives into the USB 3.0 Type-A port. If you need to charge the host device while using the hub, connect a USB-C power adapter to the hub's USB-C female power pass-through port.

Recommendations

Use a quality HDMI cable for reliable 4K video output and a USB-C power adapter that supports adequate power delivery for your host device. Do not exceed the recommended power ratings of your host and attached devices to ensure stable operation.
