Exaustor de parede Respekta Hera, filtro de metal/carvão, nível de ruído: n.d.

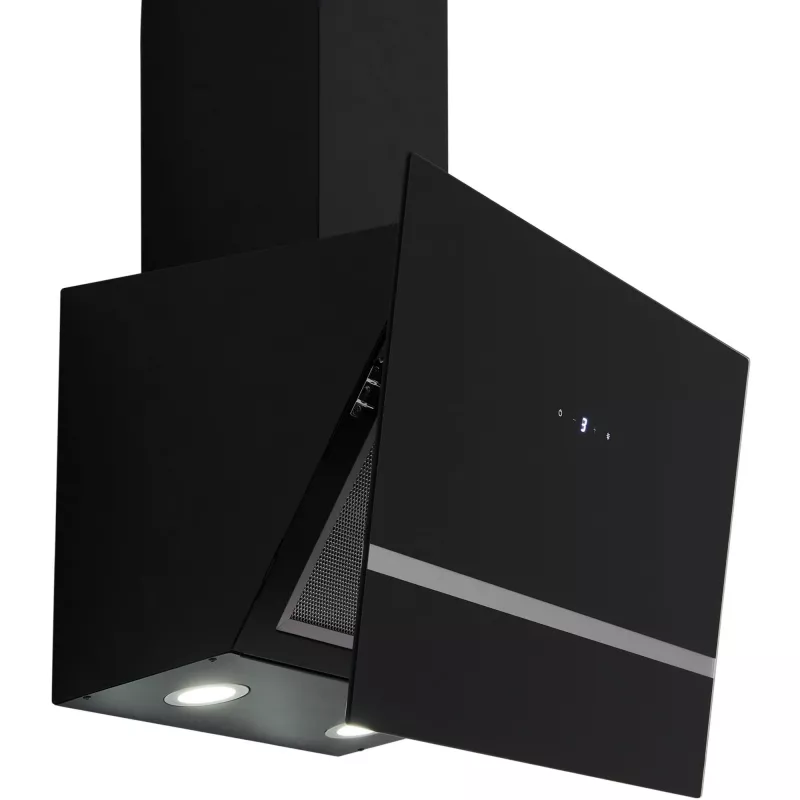

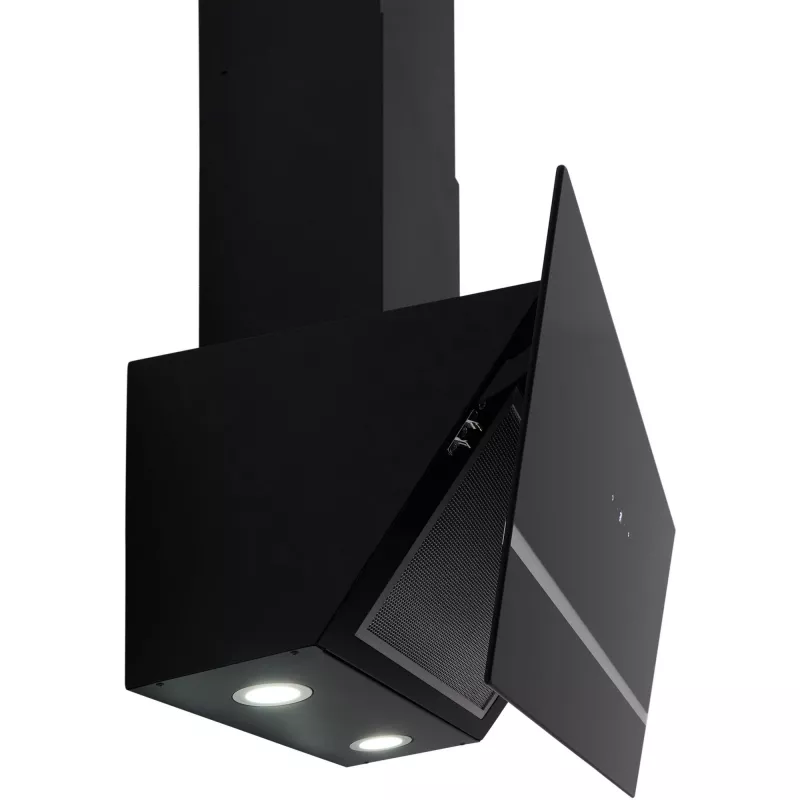

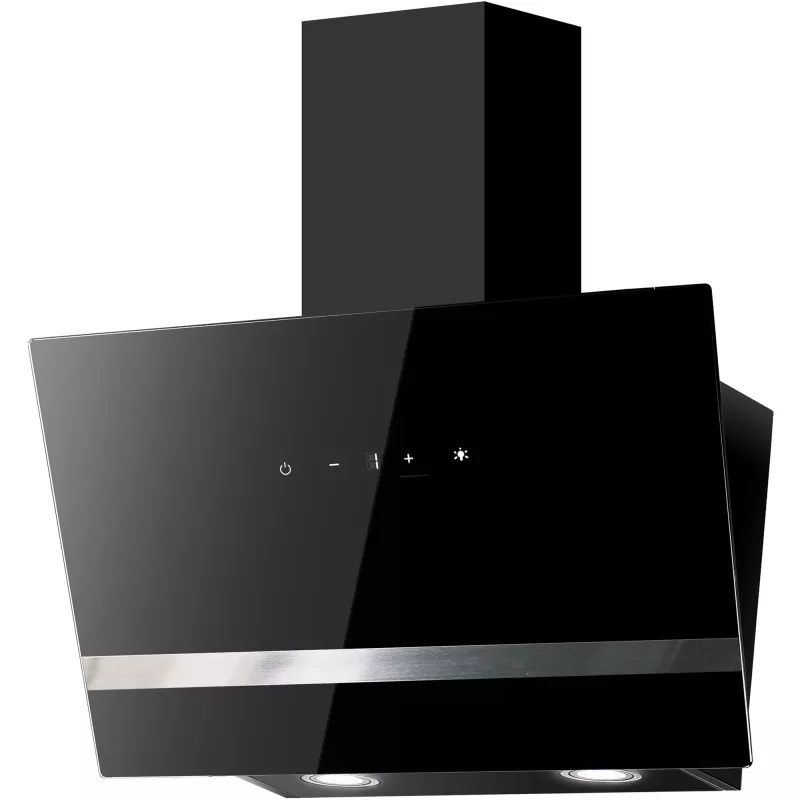

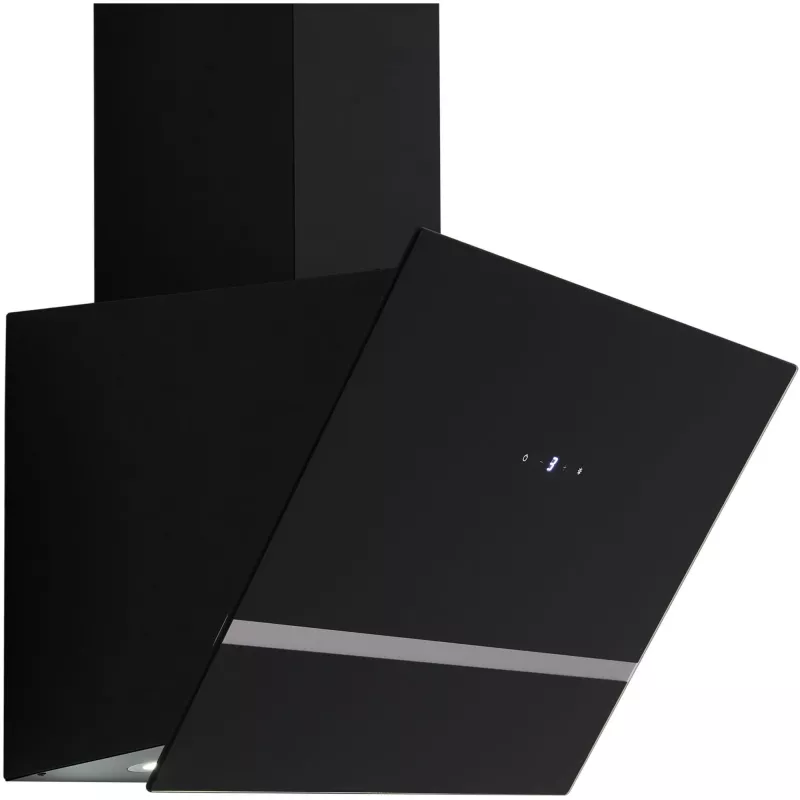

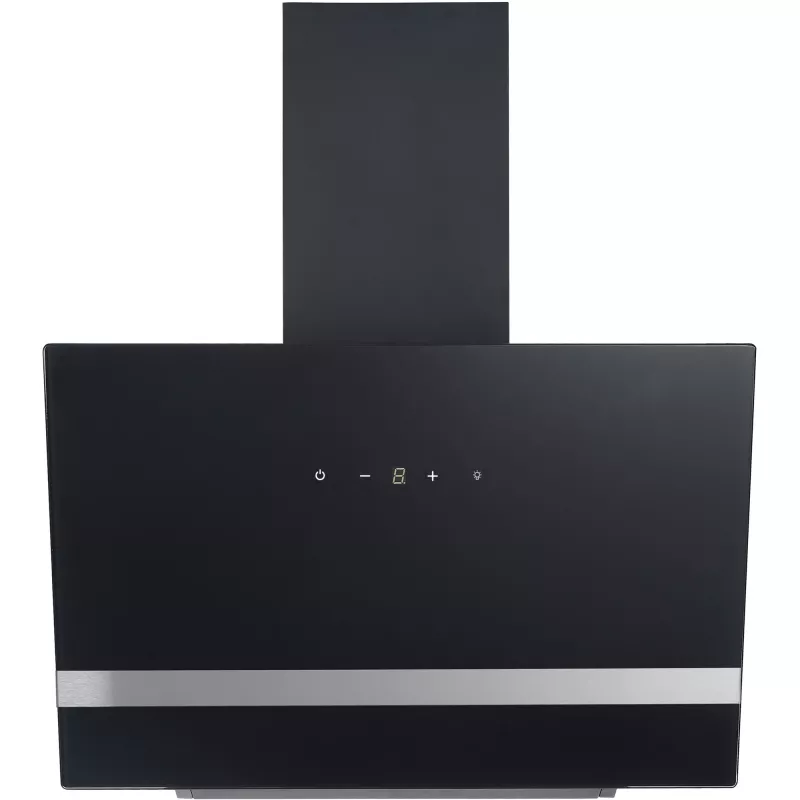

The Respekta Hera wall-mounted extractor in black combines a maximum extraction power of 587 m³/h with a compact design suited for standard kitchen installations. Designed for both ducted and recirculating operation, the unit offers A-class fluid dynamic efficiency and comes equipped with a metal/carbon grease filter and touch controls. Illumination is provided by two integrated LED bulbs (1.5 W each). Annual energy consumption is rated at 38 kWh and the declared energy efficiency class spans the A+++ to D range depending on configuration and installation.

Advantages

The Respekta Hera provides high extraction capacity while maintaining energy-efficient operation thanks to its A-class fluid dynamic performance. The supplied metal/carbon filter supports both grease reduction and recirculation mode by combining washable metal filtration with an activated carbon layer for odor control. Touch controls simplify fan speed and light adjustments, and the integrated LED lighting offers low-power illumination for the cooking surface.

Suitable for

• Domestic kitchens requiring wall-mounted extraction with top exhaust
• Homes that need both ducted and recirculating ventilation options
• Cooking areas where compact, energy-efficient hoods are preferred

Key specifications

• Type: Wall-mounted extractor
• Maximum extraction power: 587 m³/h
• Fluid dynamic efficiency class: A
• Grease filtering efficiency class: C
• Exhaust connection diameter: 150 mm
• Exhaust location: Top
• Noise level: 68 dB
• Annual energy consumption: 38 kWh

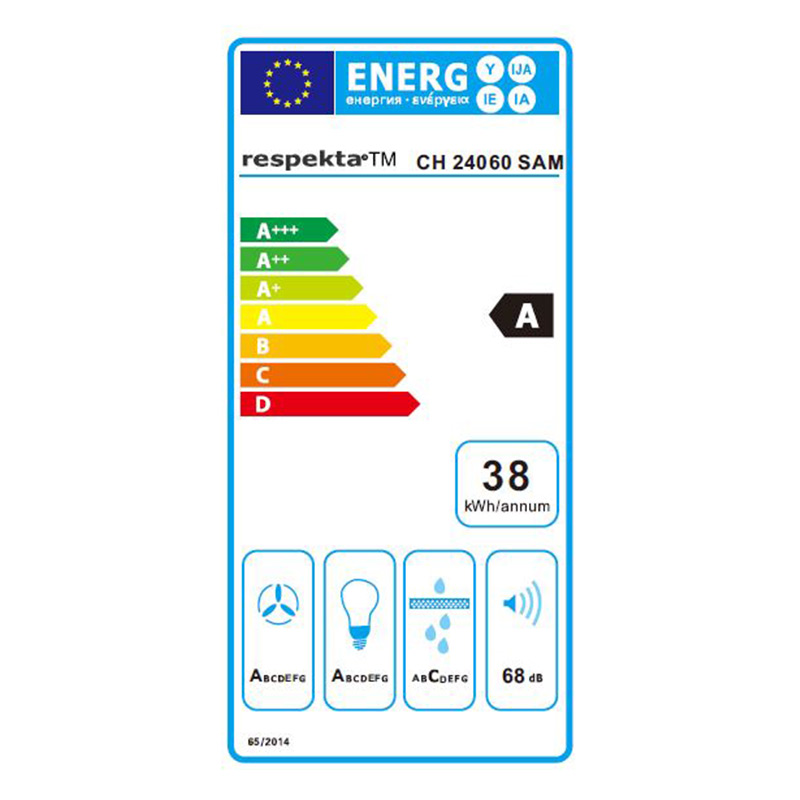

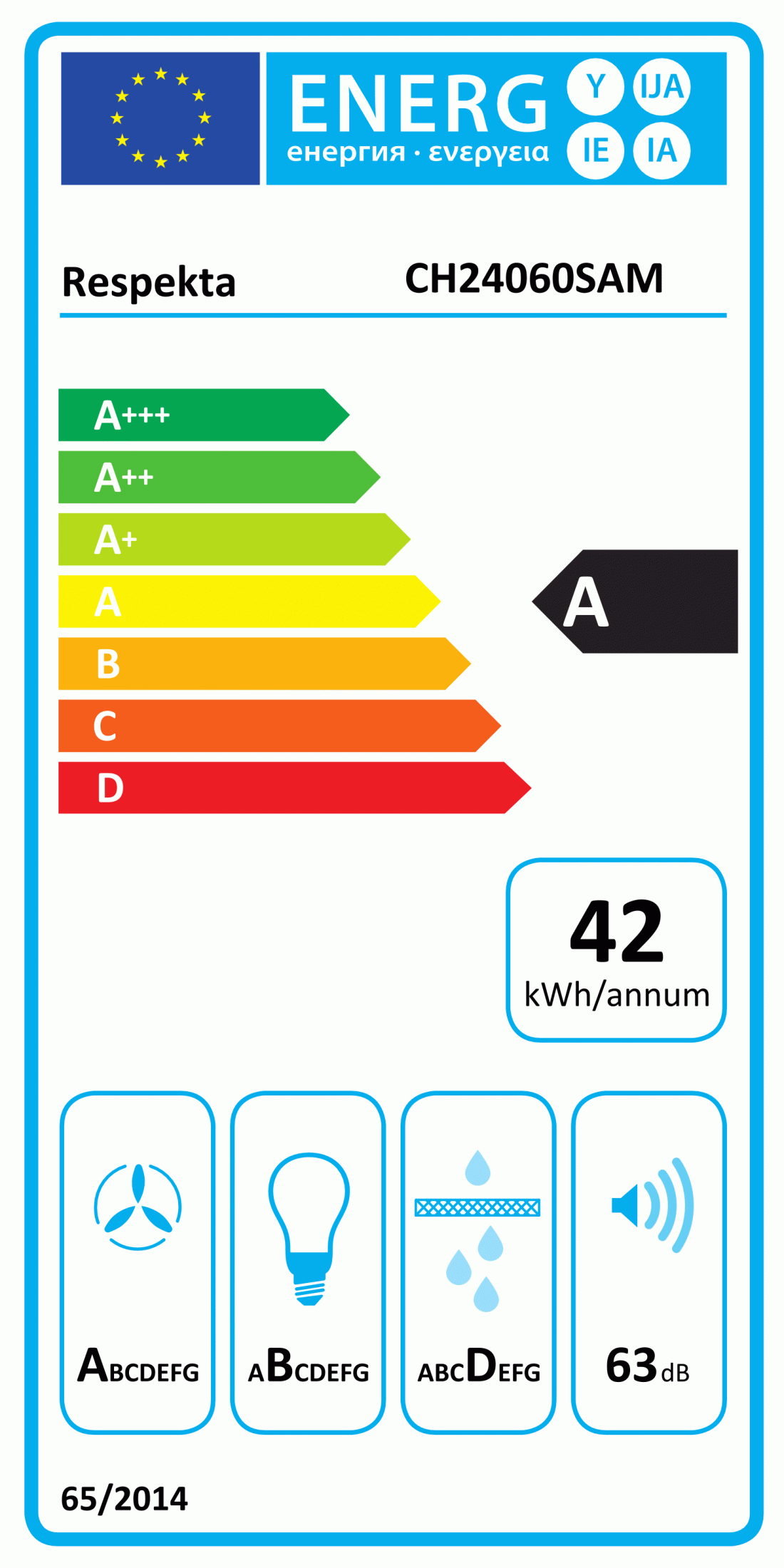

• Energy efficiency class: A (declared range A+++ to D)
• Lighting: 2 × LED, 1.5 W each
• Colour: Black
• Weight: 12.6 kg

How to use

Install the extractor on a suitable wall location with the exhaust directed to the top opening or set up for recirculating mode according to the installation instructions. Use the touch control panel to select the appropriate fan speed for the cooking activity; lower speeds are adequate for light frying or simmering, and higher speeds are available for intensive cooking to achieve the rated extraction power. Replace or service the metal/carbon filter following the maintenance guidance: metal parts can be cleaned periodically and the carbon element replaced as needed to maintain odor reduction in recirculating mode. Ensure the LED lights are switched on for direct illumination of the hob when preparing food.

Recommendations

For optimal performance and lower noise, mount the unit at the manufacturer-recommended distance above the cooking surface and ensure ducting of the specified diameter (150 mm) is used for ducted installations. In recirculating mode, check the carbon filter regularly and replace it according to cooking frequency to preserve odor control and airflow efficiency.
