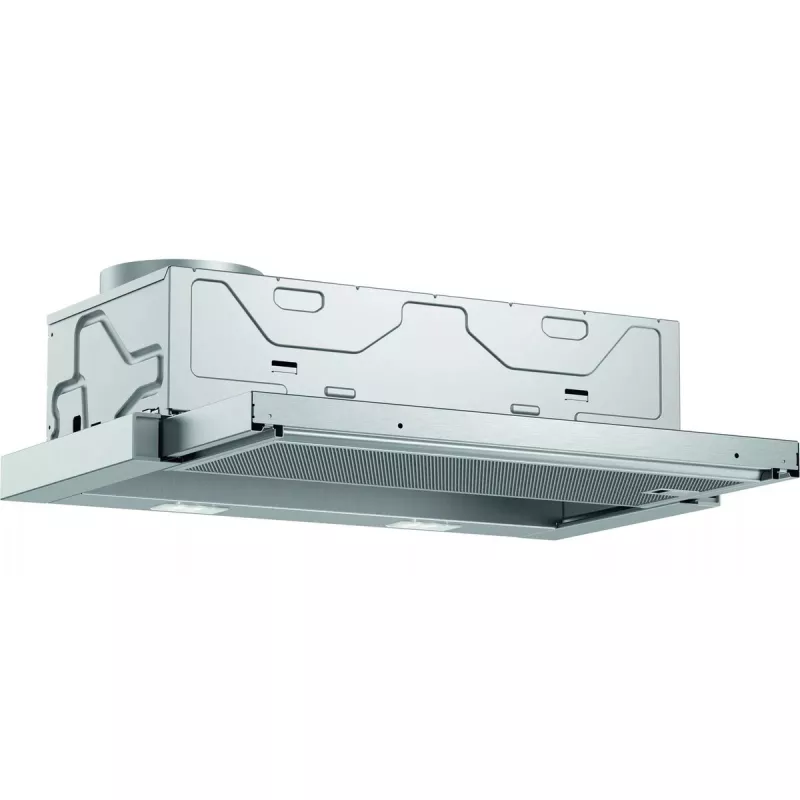

Exaustor semi-encastrado Bosch DFL063W56 — extraível, 598×290×203 mm, 328 m³/h, filtro de alumínio, recirculação

The Bosch Serie 2 DFL063W56 is a semi built-in (pull out) cooker hood designed for integration into kitchen cabinets while providing effective extraction performance. With a maximum extraction power of 328 m³/h and a recirculating extraction type, this metallic-coloured unit combines practical ventilation with discreet installation. It includes an aluminium grease filter and two 3 W LED bulbs to illuminate the cooking area. The hood has a width of 598 mm, a depth of 290 mm and a cord length of 1.75 m. Annual energy consumption is 41.1 kWh and the declared energy efficiency class is C; the connected load is 93 W.

Advantages

The pull-out design allows the hood to remain concealed when not in use and extend easily to increase capture area when cooking. Aluminium grease filtration provides durable, washable protection against airborne grease particles. Integrated LED lighting delivers clear illumination with low power consumption. The combination of compact depth and near-600 mm width fits standard cabinet openings while offering a relatively high maximum extraction rate for a semi built-in unit.

Suitable for

• Small to medium domestic kitchens where a discreet, integrated hood is desired
• Cooking zones with moderate to frequent frying or sautéing that require grease capture
• Kitchen layouts that benefit from pull-out ventilation to preserve cabinet aesthetics
• Homes using recirculating extraction with carbon filters (where ducting is not available)

Key specifications

• Type: Semi built-in (pull out)
• Maximum extraction power: 328 m³/h
• Noise level: 64 dB
• Width: 598 mm
• Depth: 290 mm
• Grease filter: Aluminium, washable
• Lighting: 2 × 3 W LED bulbs
• Annual energy consumption: 41.1 kWh
• Energy efficiency class: C
• Connected load: 93 W

How to use

Install the hood into a suitable cabinet opening at the recommended height above the cooktop according to the manufacturer’s installation instructions. For recirculating operation, fit appropriate carbon filters (sold separately) if required and ensure the aluminium grease filter is correctly positioned. Slide the unit out to operate the extraction and use the control panel to select the required fan speed. Switch on the LED lights as needed to illuminate the cooking surface. After cooking, allow the hood to run briefly to clear remaining odors and moisture, then slide it back to its concealed position when finished.

Recommendations

Clean the aluminium grease filter regularly in warm soapy water or dishwasher according to the care instructions to maintain extraction performance. Replace carbon filters on a schedule based on cooking frequency when using recirculation. Avoid blocking the air inlets and keep the LED lamps and control area free of grease build-up to ensure safe and efficient operation.
