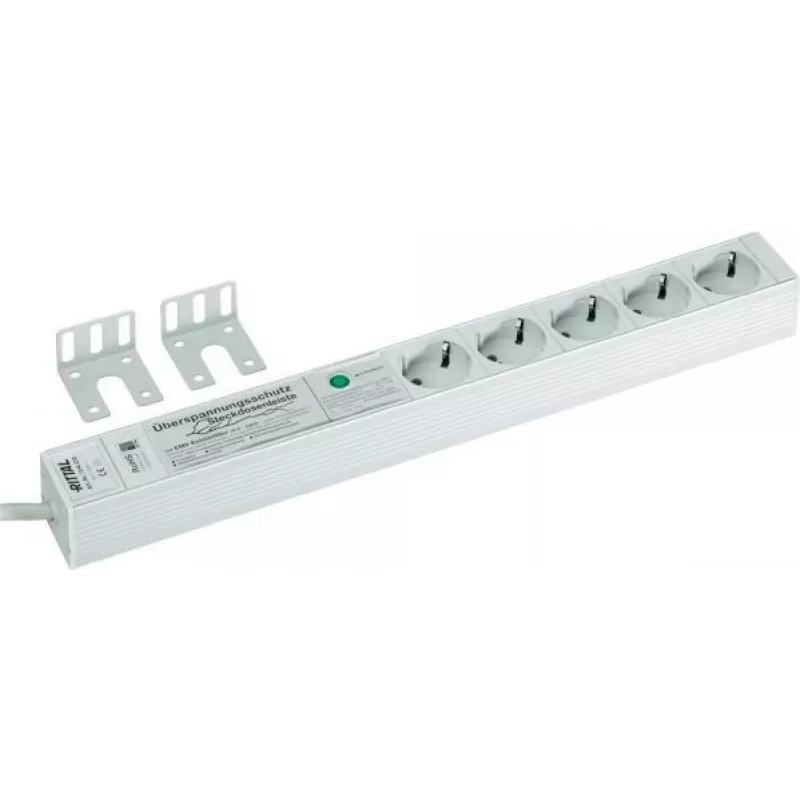

Extensão de alimentação Rittal DK 7240.230

The Rittal DK 7240.230 is a compact 2 m power extension strip with five AC outlets mounted in an aluminium duct for indoor use. It provides Type D sockets and supports operation at 230 V with a maximum current of 16 A, offering a space-saving solution to supply multiple devices from a single feed. The housing is finished in grey and the unit is suitable for installation where a slim, durable power distribution is required.

Advantages

The aluminium duct provides mechanical protection and helps with heat dissipation while the five AC outlets allow several devices to be powered simultaneously. With a 2 m cable length and a 16 A rating at 230 V, the extension is compatible with common indoor electrical systems. Its slim dimensions (482.6 mm × 44 mm × 44 mm) make it suitable for compact installations and cabinets.

Suitable for

• Power distribution inside equipment cabinets and enclosures
• Supplying multiple office or server devices from a single feed
• Industrial control panels and rack-mounted applications requiring Type D outlets

Key specifications

• Cable length: 2 m
• AC outlets quantity: 5
• AC outlet types: Type D
• Voltage: 230 V
• Maximum current: 16 A
• Dimensions (W × D × H): 482.6 × 44 × 44 mm
• Colour: Grey
• Brand: Rittal
• Model / MPN: 7240230
• EAN: 4028177221185

How to use

Mount the aluminium duct in the desired indoor location or inside an equipment cabinet using appropriate fasteners. Connect the extension's main cable to a compatible 230 V supply with adequate protection (circuit breaker rated for up to 16 A). Plug devices into the Type D outlets, ensuring the total current draw does not exceed 16 A. Arrange cables to avoid excessive bending or mechanical strain on the connections.

Recommendations

Use the Rittal DK 7240.230 only indoors and within its rated voltage and current limits. Do not exceed the 16 A maximum load and ensure the installation complies with local electrical regulations. For installations in harsh or outdoor environments, select a product rated for those conditions.
