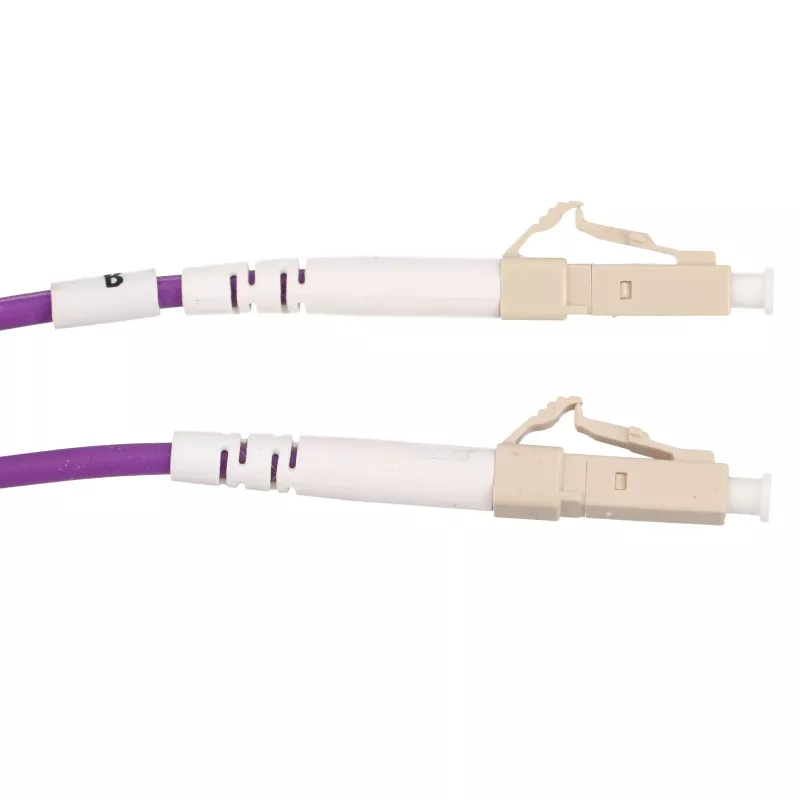

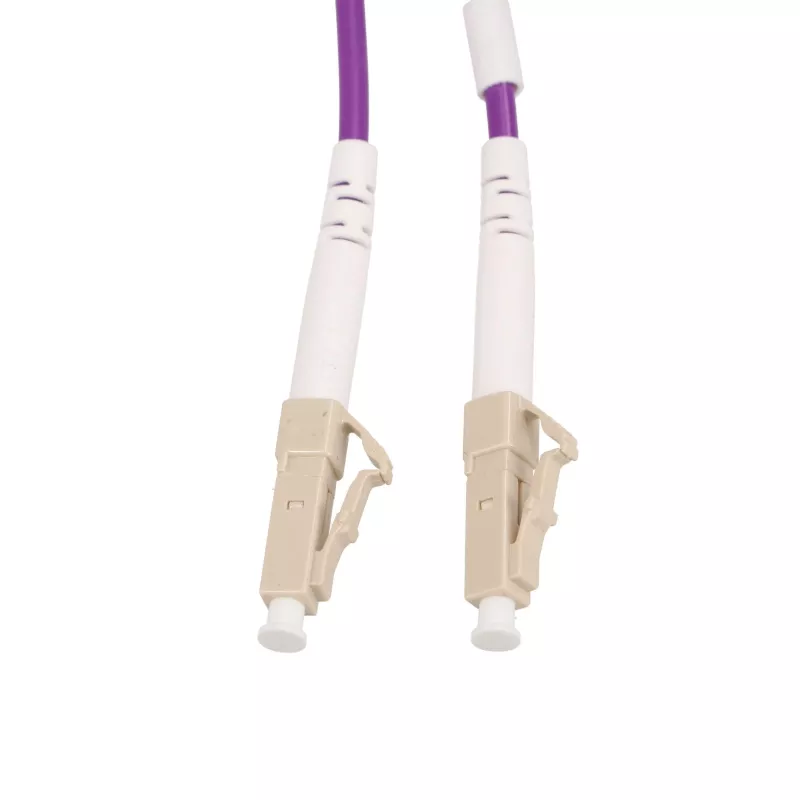

Extralink cabo de patch LC/UPC para LC/UPC, multimodo OM4 duplex, 1 m

The Extralink LC/UPC to LC/UPC Patch Cord is a high-performance multimode OM4 duplex fiber optic cable designed for reliable data transmission in demanding network environments. With a length of 1 meter and a 2.0 mm diameter, this patch cord ensures low insertion loss and high return loss, making it ideal for data centers, LANs, SANs, and FTTx applications.

Advantages

This patch cord offers exceptional signal integrity with typical insertion loss ≤0.3 dB and return loss ≥30 dB. The OM4 grade fiber supports high bandwidth over longer distances, while the duplex design provides bidirectional communication. The PVC jacket in aqua color ensures durability and easy identification.

Suitable for

• Data centers requiring high-speed connections
• Local Area Networks (LANs) and Storage Area Networks (SANs)
• Fiber-to-the-x (FTTx) deployments
• Telecommunications and enterprise networking

Key specifications

• Connector Type: LC/UPC to LC/UPC
• Fiber Mode: Multimode OM4
• Number of Fibers: 2 (Duplex)
• Cable Diameter: 2.0 mm
• Jacket Material: PVC
• Jacket Color: Aqua
• Insertion Loss: ≤0.3 dB (typical)
• Return Loss: ≥30 dB (typical)
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, TIA/EIA-568-C.3, IEC 60794-2

Recommendations

For optimal performance, ensure clean connectors and proper cable management. This patch cord is compatible with standard LC interfaces and is suitable for 10GbE and 40GbE applications.
