FAAC E045S LC Unidade de controlo (substitui 790077) - 790079

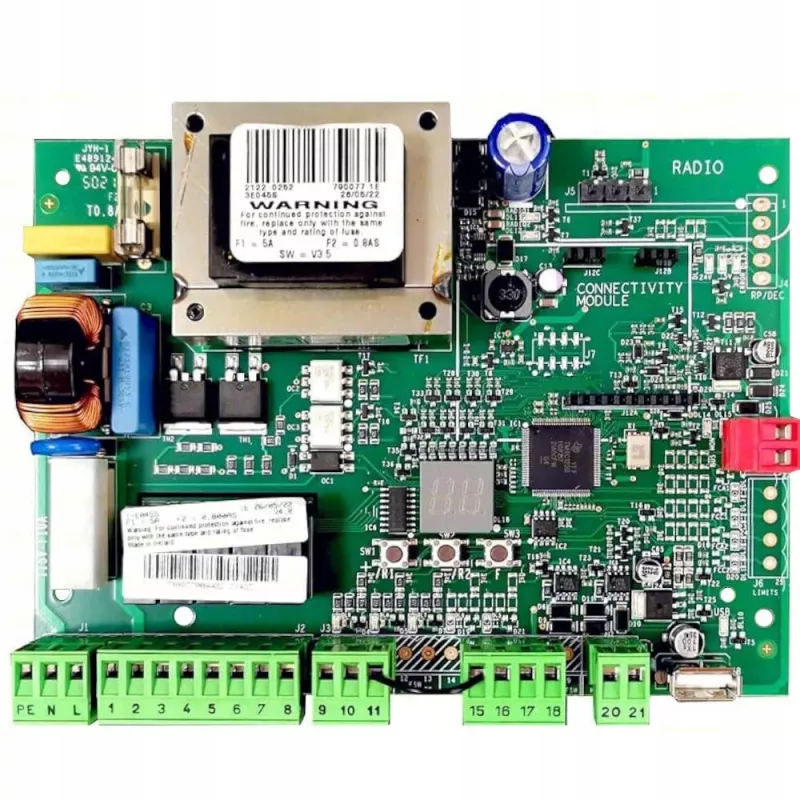

The FAAC E045S LC control unit is a microprocessor-based controller designed for 24V DC swing gate operators. It replaces the previous model 790077 and offers enhanced features including an integrated radio receiver, LCD programming interface, and comprehensive safety inputs. This unit supports up to two motors and provides adjustable functions such as slow down, pedestrian opening, and master/slave operation.

Advantages

Easy programming via LCD display; integrated FAAC XF 433/868 MHz Omnidec radio receiver; anti-crushing encoder support; robust safety inputs (STOP, FSW, FSW_O); reliable 24V DC motor output with up to 7A current.

Suitable for

• 24V DC swing gate operators
• Residential and commercial gate automation
• Replacement for FAAC 790077 control units

Key specifications

• Input Power Supply: 230V AC (+6%-10%) 50 Hz
• Motor Output Voltage: 24V DC
• Max Motor Current: 7 A
• Max Motor Power: 160 W
• Accessory Power Supply: 24V DC, max 500 mA
• Flashing Lamp Output: 24V DC, max 25W
• Operating Temperature: -20°C to +55°C
• Control Logic: Microprocessor
• Programming Interface: LCD Display
• Integrated Radio Receiver: FAAC XF 433/868 MHz (Omnidec)
• Safety Features: Anti-crushing (Encoder), Obstacle Detection
• Adjustable Functions: Slow Down, Pedestrian Opening, Master/Slave
• Gate Type Compatibility: 24V DC Swing Gate Operators
• Number of Motors Controlled: Up to 2
• Encoder Support: Yes
• Safety Inputs: 3 (STOP, FSW, FSW_O)

Recommendations

Ensure compatibility with your gate operator model. Professional installation recommended.
