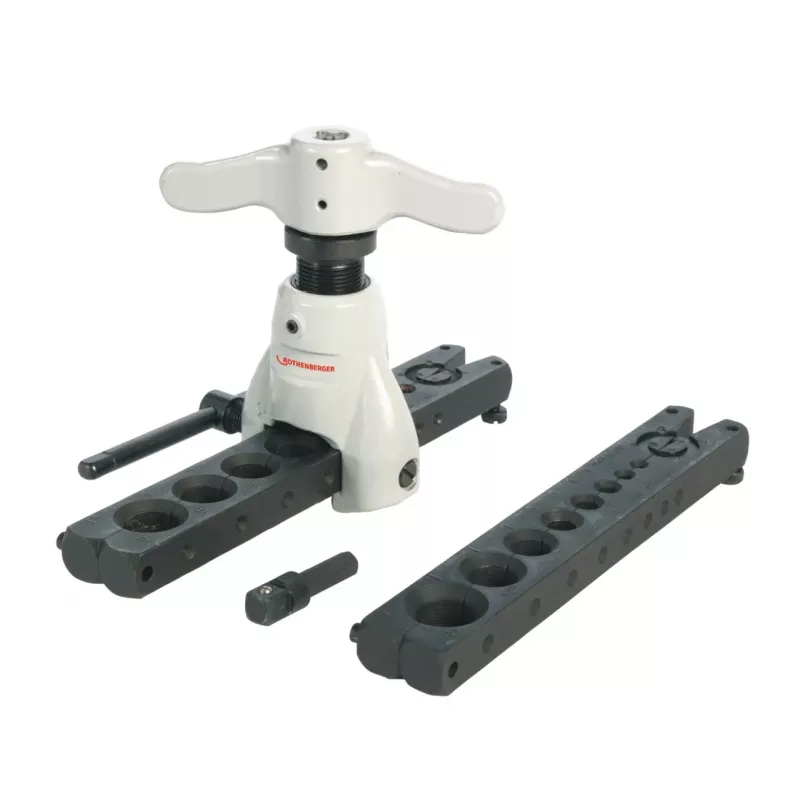

Ferramenta de flangear cónica excêntrica ROTHENBERGER 222401 1/8"–3/4" (4–19 mm) com catraca, flange simples e duplo a 45°

Conventional flaring tools demand constant alignment and pressure control, often leading to uneven seats and material stress. This ROTHENBERGER eccentric cone flaring tool replaces that struggle with a controlled, repeatable process. The tumbling cone rolls the flare into shape rather than pressing it, reducing stress and producing a smooth, burr-free seat every time. The integrated ratchet mechanism handles the heavy work, enabling one-hand operation even in tight spaces and awkward angles.

Highlights

• Eccentric cone (tumbling) flaring system for uniform 45° flares
• Covers imperial 1/8"–3/4" and metric 4–19 mm tubing
• Produces both single and double flares without changing tools
• Self-centering clamp grips copper, aluminum, brass, and thin-walled steel
• Ratchet-assisted drive with automatic stop ensures consistent flare depth
• Hardened steel cone and compact design for long service life and portability

In daily use

Slide the tube into the self-centering clamp, set the diameter, and work the ratchet until the automatic stop clicks. The eccentric cone orbits the tube end, forming a perfectly concentric flare without tearing or thinning the wall. Double flares are just as straightforward: the first pass creates the bell, the second folds it inward for a reinforced seat. Because the tool is manually driven, you keep full control over speed and pressure, which is critical when working with soft copper or thin-walled steel in HVAC, refrigeration, automotive, or plumbing systems.

Full specifications

• Flaring system: Eccentric cone (tumbling)
• Flaring angle: 45°
• Flare types: Single and double flares
• Pipe diameter range (imperial): 1/8" – 3/4"
• Pipe diameter range (metric): 4 – 19 mm
• Compatible materials: Copper, aluminum, brass, thin-walled steel
• Drive mechanism: Manual (ratchet-assisted)
• Ratchet function: Yes
• Cone material: Hardened steel
• Clamp type: Self-centering
• Automatic stop: Yes
• Application areas: HVAC, refrigeration, automotive, plumbing
• Flare quality: Smooth, uniform, burr-free
• Portability: Compact design
• Operation: Single-hand operation possible
• Tool type: Hand tool

Final note

Engineered for professionals who demand repeatable, high-quality flares without the effort, this ROTHENBERGER tool is a dependable addition to any HVAC, refrigeration, automotive, or plumbing toolkit.
