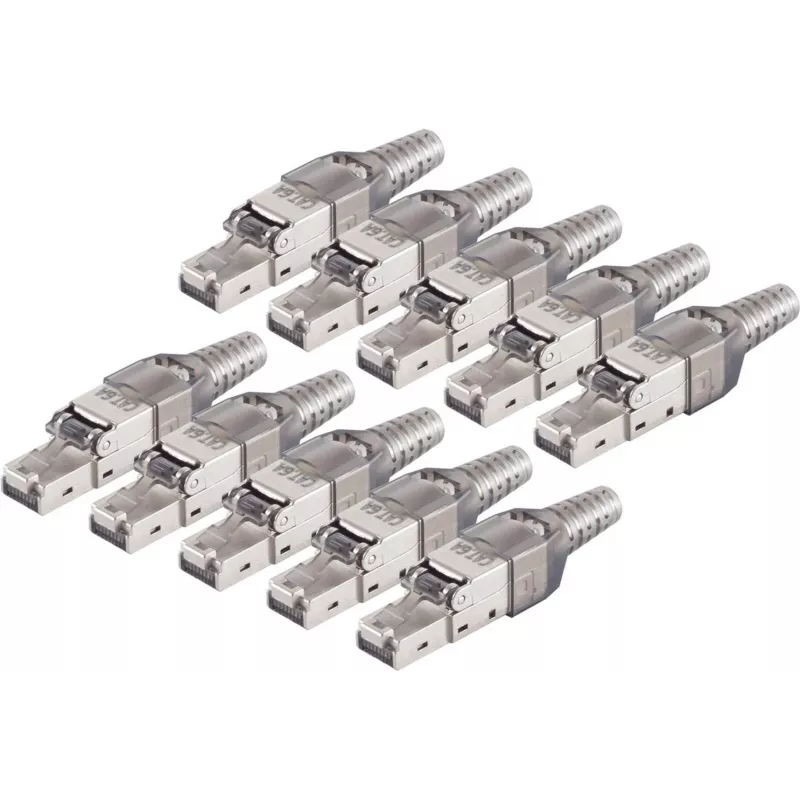

Ficha de rede ShiverPeaks 08-51001-10 Cat. 6A ficha RJ45 sem ferramentas

The ShiverPeaks Network connector 08-51001-10 is a tool-less RJ45 connector engineered for Cat.6A cabling. It enables fast field termination of Ethernet cables without the need for crimping tools, maintaining performance required for high-speed links. The connector is designed for shielded installations and includes an integrated strain relief to protect the cable and maintain stable connections in patch or permanent link applications.

Advantages

This tool-less RJ45 connector simplifies cable termination by eliminating crimping steps while preserving Cat.6A performance characteristics. Its shielded design supports reduced electromagnetic interference in screened installations and the built-in strain relief reduces mechanical stress at the termination point. The connector’s form factor allows quick re-termination when changes are needed, helping to minimize installation time and downtime in network deployments.

Suitable for

• Field termination of Cat.6A patch cables
• Permanent link installations that require shielded RJ45 terminations
• Environments where quick re-termination or frequent cable changes occur
• High-speed Ethernet connections up to Cat.6A performance

Key specifications

• Connector type: RJ45, 8-position, 8-contact
• Category performance: Cat.6A compliant performance for high-speed Ethernet
• Termination method: Tool-less field termination, no crimping required
• Shielding: Shielded connector suitable for screened cable systems
• Strain relief: Integrated boot/strain relief to protect the cable exit and contacts
• Suitable conductor types: Solid and stranded twisted-pair cable compatible

How to use

Prepare the cable by stripping the outer jacket to the length indicated in the connector instructions and arrange the twisted pairs according to the intended wiring standard. Insert the individual conductors into the designated slots of the tool-less connector until they reach the contact points. Close or secure the connector housing as specified to make contact with each conductor and engage the shield/grounding mechanism if using screened cable. Verify continuity and network performance with appropriate testing equipment after termination.

Recommendations

Use the connector with Cat.6A-rated cable and follow standard wiring practices to maintain performance. Ensure the shield is properly engaged for screened installations and test each terminated link with a Category-appropriate tester to confirm compliance and signal integrity.
