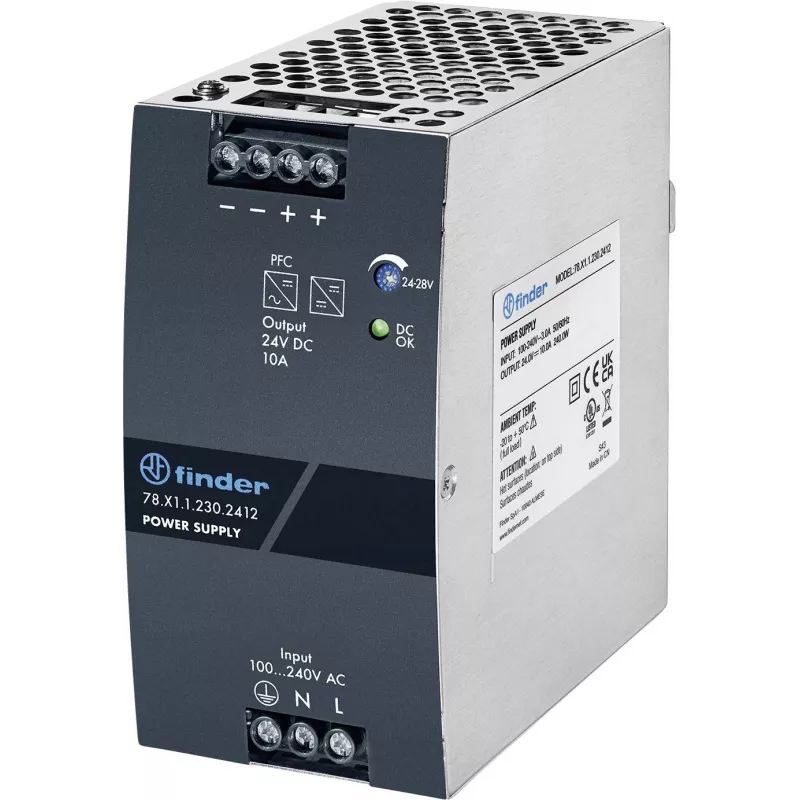

Finder 78.X1.1.230.2412 Fonte de alimentação para calha DIN 24V DC 10A 240W

The Finder 78.X1.1.230.2412 stands out with its active power factor correction and high efficiency, delivering a stable 24V DC output for industrial control systems. Unlike basic DIN rail supplies, it maintains full 240W output up to 50°C, with derating only at higher temperatures.

Highlights

• Wide input range: 85-264V AC or 120-370V DC
• Active PFC for improved energy utilization
• Compact DIN rail mounting (EN 60715)
• Comprehensive protection: short circuit, overload, overvoltage, thermal

In daily use

This power supply is built for demanding automation environments. Screw terminals ensure secure wiring, while the metal housing dissipates heat effectively. The output remains clean with ripple below 100mVpp, suitable for sensitive electronics.

Full specifications

• Output voltage: 24V DC
• Output current: 10A
• Output power: 240W
• Input voltage (AC): 85-264V
• Input voltage (DC): 120-370V
• Input frequency: 47-63Hz
• Efficiency: >89% at 230V AC full load
• Operating temperature: -20°C to +70°C (derating above 50°C)
• Ripple & noise: <100mVpp
• Isolation voltage (input-output): 3kV AC
• Start-up time: <1s
• Hold-up time: >20ms at 230V AC full load
• Mounting: DIN rail EN 60715
• Connection: screw terminals

Final note

With its robust design and precise regulation, the Finder 78.X1.1.230.2412 is a dependable choice for powering industrial controllers, sensors, and actuators.
