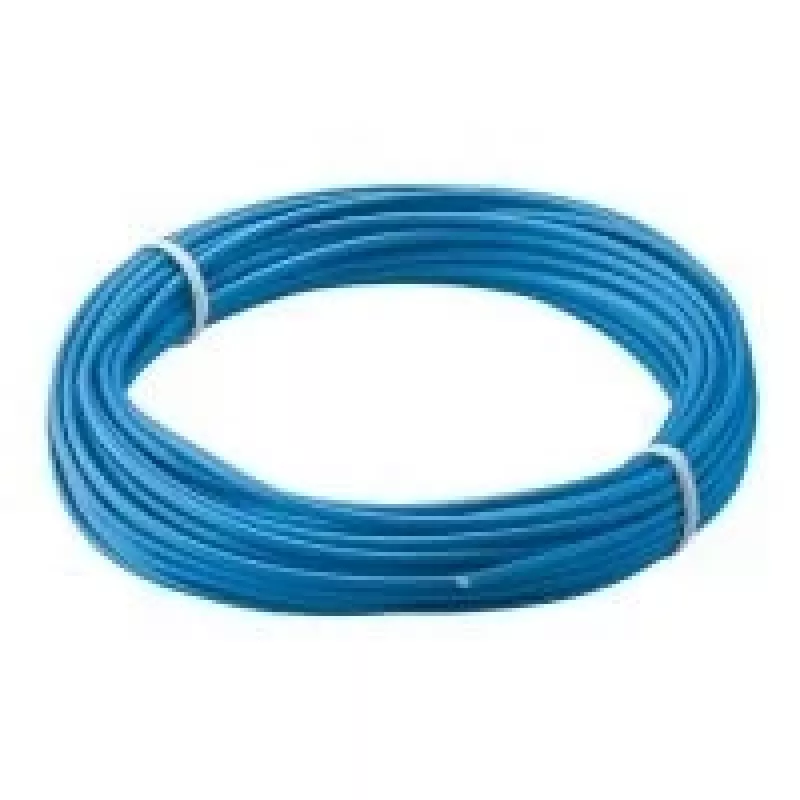

Fio isolado Wentronic Goobay, azul, 10 m, 1 condutor, 18 x 0,1 mm, 0,14 mm², 26 AWG 55039

This single-core stranded wire stands out with its fine 18-strand copper construction, offering flexibility for tight routing in electronics projects and model building. The blue PVC insulation provides clear colour coding and mechanical protection.

Highlights

• 18 strands of 0.1 mm copper for excellent flexibility
• Nominal cross-section 0.14 mm² (approx. 26 AWG)
• 10 m length for multiple connections
• Blue PVC insulation for easy identification
• Rated voltage 300 V, suitable for low-voltage circuits

In daily use

The multi-stranded design resists breakage from repeated bending, making it reliable for prototyping and internal wiring. The insulation withstands temperatures from -20 °C to +80 °C, covering typical indoor environments.

Full specifications

• Conductor material: Copper
• Number of cores: 1
• Conductor construction: Multi-stranded (18 x 0.1 mm)
• Nominal cross-sectional area: 0.14 mm²
• Approximate AWG: 26 AWG
• Insulation material: PVC
• Cable colour: Blue
• Cable length: 10 m
• Rated voltage: 300 V
• Temperature rating: -20 °C to +80 °C
• Outer diameter: 1.2 mm
• Application: Internal wiring, prototyping, electronics projects, model building

Final note

A dependable hook-up wire for hobbyists and technicians who need a flexible, colour-coded conductor in moderate lengths.
