Fios jumper kabelmeister® 40 pinos, fios separáveis para Arduino, Raspberry Pi, etc., macho para macho

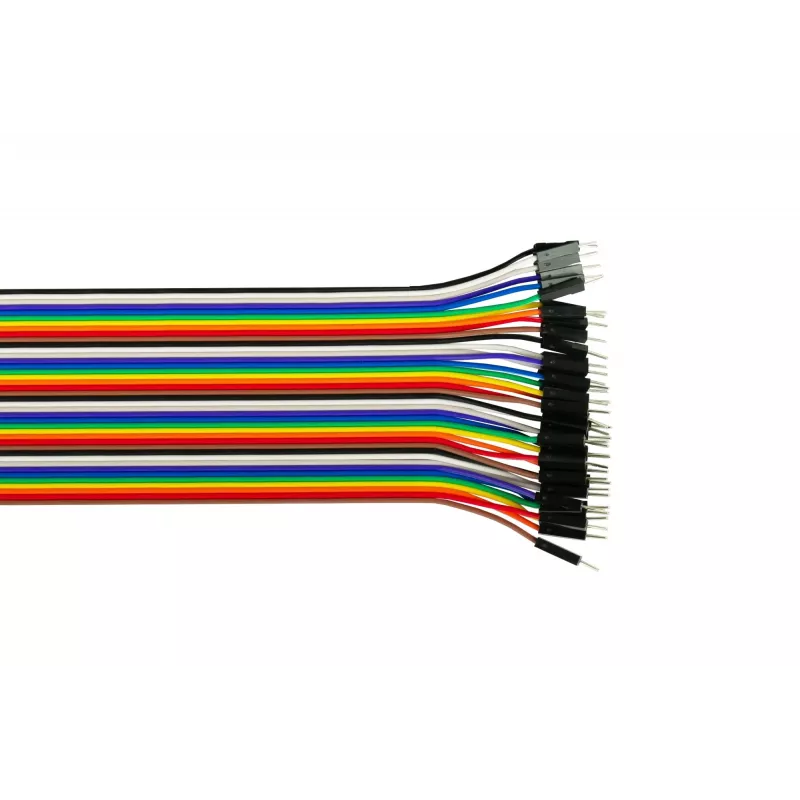

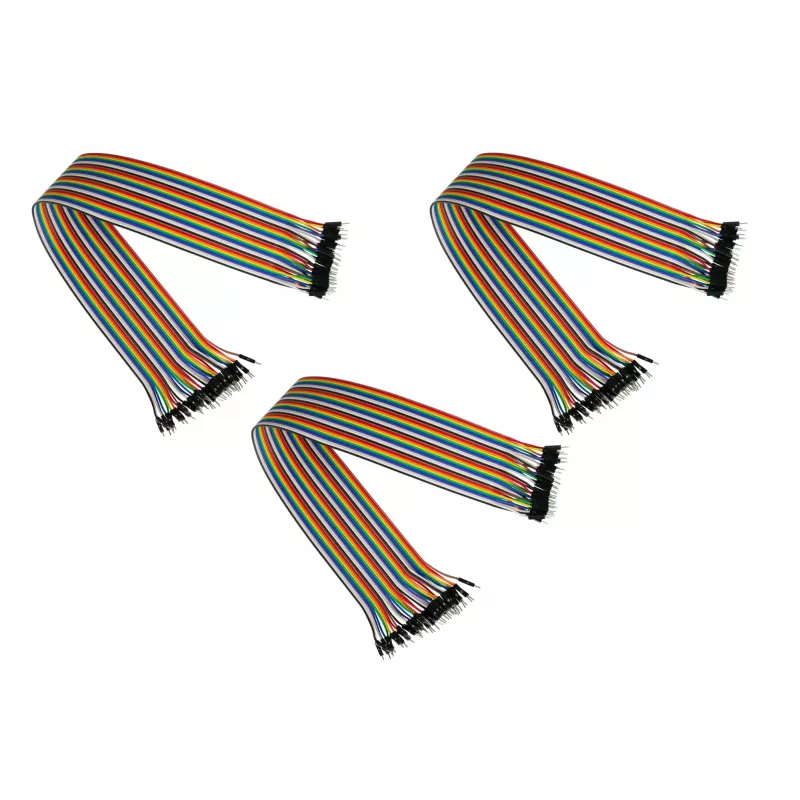

The kabelmeister® Jumper Wire 40-Pin set is a versatile and essential component for electronic prototyping. This ribbon cable features 40 separable wires, each 20 cm long, with male pin connectors on both ends. Ideal for use with Arduino, Raspberry Pi, breadboards, and other prototyping boards, these jumper wires allow for flexible and reliable circuit connections.

Advantages

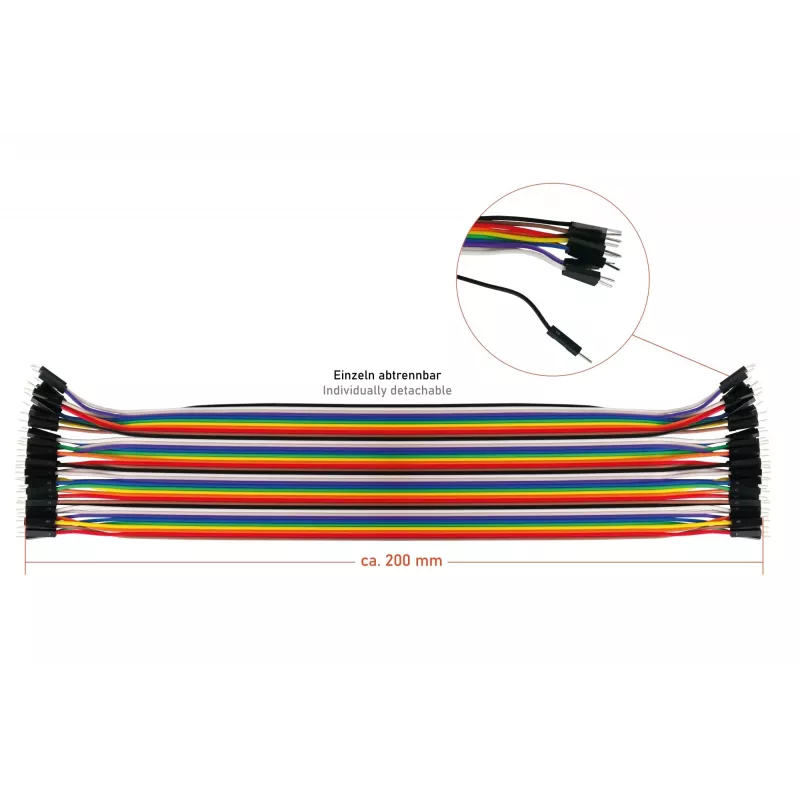

These jumper wires are designed for easy separation, allowing you to create individual connections as needed. The 26 AWG tinned copper conductors ensure excellent conductivity and durability. The multi-color insulation helps in identifying and organizing connections, simplifying troubleshooting and circuit design.

Suitable for

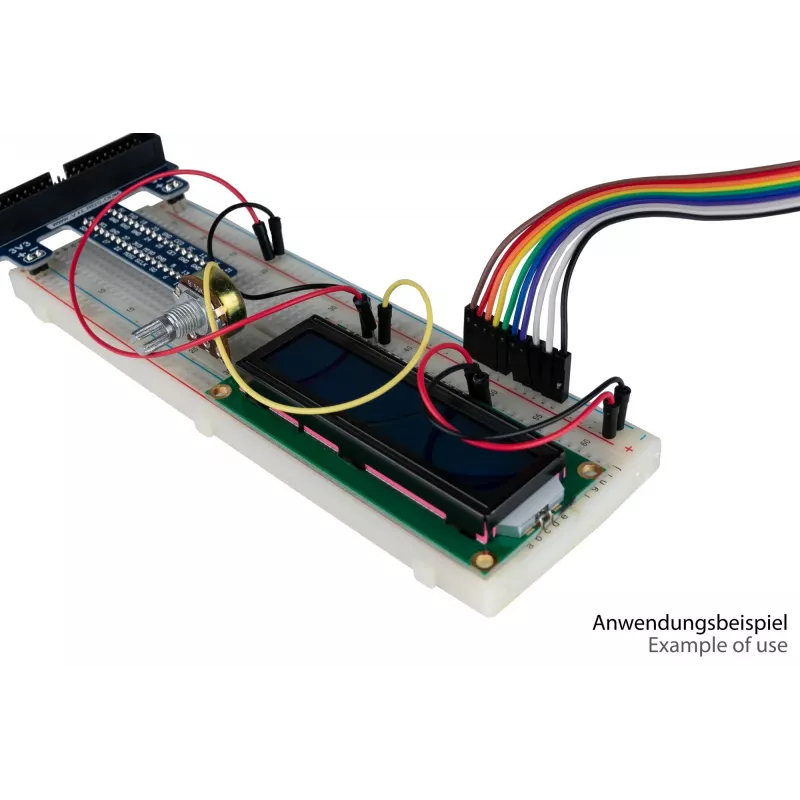

• Arduino and Raspberry Pi projects
• Breadboard prototyping
• DIY electronics and circuit connections
• Educational and hobbyist applications

Key specifications

• Number of Wires: 40
• Wire Length: 20 cm
• Connector Type: Male to Male
• Wire Gauge: 26 AWG
• Conductor Material: Tinned Copper
• Insulation Material: PVC
• Connector Pitch: 2.54 mm
• Color: Multi-color
• Max Voltage Rating: 300 V
• Max Current Rating: 1 A
• Operating Temperature: -20°C to 80°C
• RoHS Compliant: Yes

Recommendations

For best results, use these jumper wires with standard 2.54 mm pitch breadboards and headers. The separable design allows you to customize the number of wires for your specific project needs.
