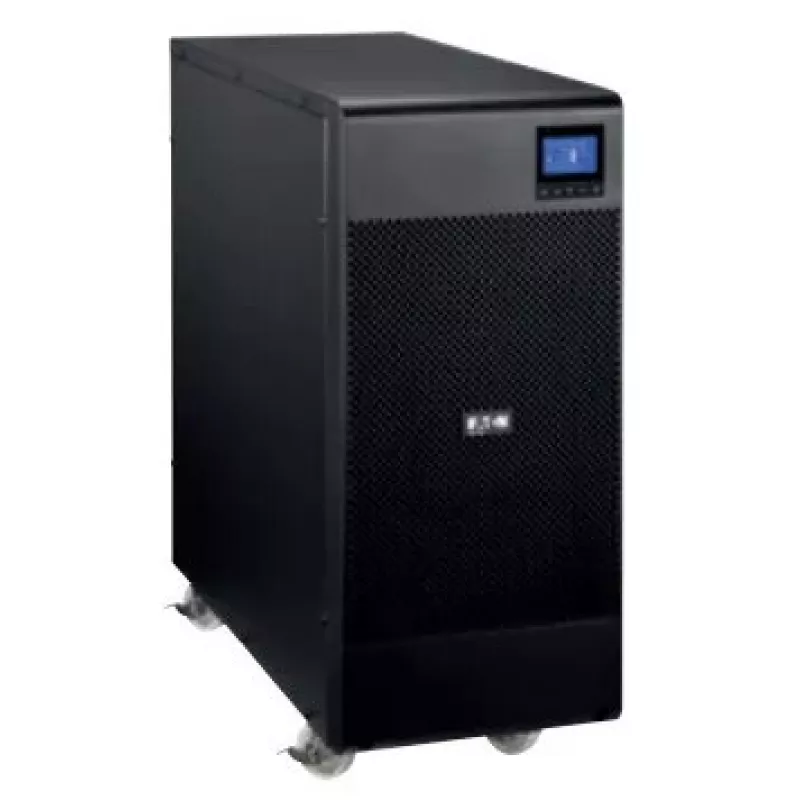

Fonte de alimentação ininterrupta Eaton 9SX 6 kVA

The Eaton 9SX 6 kVA is an online double-conversion uninterruptible power supply designed for rack or tower deployment. With a rated capacity of 6 kVA (output power 5400 W), an LCD display, terminal AC outlets and ENERGY STAR certification, it provides reliable power protection and efficient operation for infrastructure, industrial, medical, IT, networking, storage and telecom environments. Typical backup time is around 15 minutes at half load.

Advantages

The UPS delivers continuous double‑conversion voltage regulation to protect sensitive equipment from power disturbances while achieving up to 95% efficiency. Compact tower/rack form factor and an LCD interface simplify installation and monitoring. ENERGY STAR certification indicates optimized energy use and lower operating costs. The unit includes a USB 2.0 port for basic communication and management.

Suitable for

• Server rooms and data centres
• Network and telecom cabinets
• Medical and laboratory equipment requiring clean power
• Industrial control systems and automation
• Storage systems and backup infrastructure

Key specifications

• Model: Eaton 9SX 6 kVA (MPN: 9SX6KI)
• Output power capacity: 6 kVA
• Output power: 5400 W
• Topology: Online double-conversion
• Form factor: Rack/Tower
• Typical backup time: ~15 minutes at 50% load
• Efficiency: Up to 95%
• Interfaces: LCD display, USB 2.0 port
• Colour: Black
• Weight: 65.5 kg
• Certification: ENERGY STAR

How to use

Install the Eaton 9SX in a suitable rack or on a stable surface in tower orientation, ensuring adequate ventilation and ambient temperature within the manufacturer’s recommended range. Connect critical equipment to the UPS’s AC outlets and link the unit to your management system via the USB port if monitoring is required. Configure output and alarm settings using the LCD menu according to the protected equipment’s power requirements. Test the configuration and perform a controlled load transfer to verify backup operation.

Recommendations

Place the UPS on a level surface or mount it in a compatible rack, avoid exposure to moisture and dust, and schedule regular battery tests and preventive maintenance. For extended runtime, consult Eaton-compatible external battery modules and follow the service intervals recommended by the manufacturer.
