Fonte de alimentação PHOENIX CONTACT 2866695 — industrial para calha DIN, 180 × 125 × 130 mm

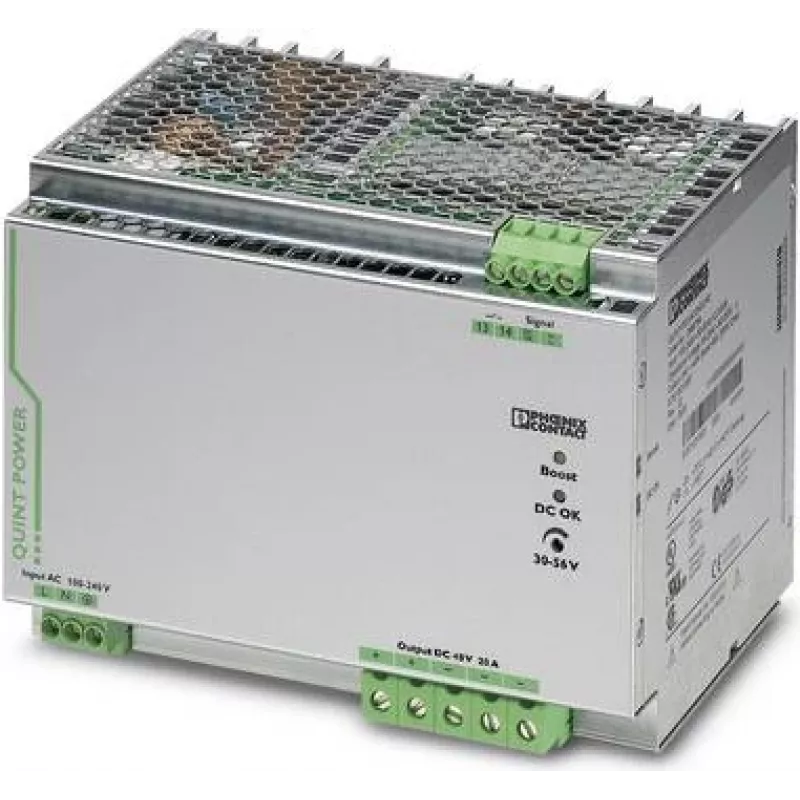

PHOENIX CONTACT 2866695 is an industrial DIN-rail power supply with a 1-phase input and a 48 V DC / 20 A output. Designed for control cabinets and automation systems, the unit measures 180 × 125 × 130 mm and provides a compact, mountable power source with Selective Fuse Breaking (SFB) technology for enhanced fault management.

Advantages

The power supply offers SFB (Selective Fuse Breaking) technology to limit fault current and improve system safety, a primary-switched design for efficient energy conversion, and a standardized DIN-rail housing for easy installation in electrical panels. Its rated output of 48 V DC at 20 A ensures stable power delivery for industrial control equipment and automation devices.

Suitable for

Key specifications

How to use

Install the unit on a standard DIN rail inside the control cabinet and connect the AC input according to the wiring diagram supplied by the manufacturer. Connect the 48 V DC output to the load, observing correct polarity and current limits. Ensure proper ventilation and mounting clearances as specified in the manufacturer's documentation, and follow applicable electrical safety standards during installation and commissioning.

Recommendations

Use appropriate upstream fusing and protection devices, regularly inspect terminal connections for tightness, and operate the power supply within its rated ambient temperature and load limits to ensure reliable long-term performance.
