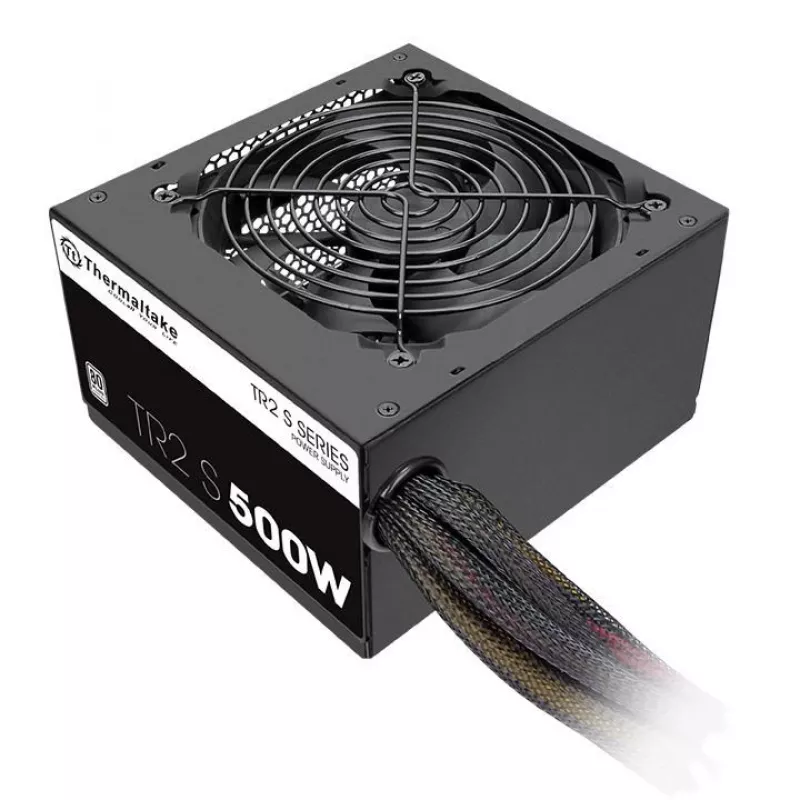

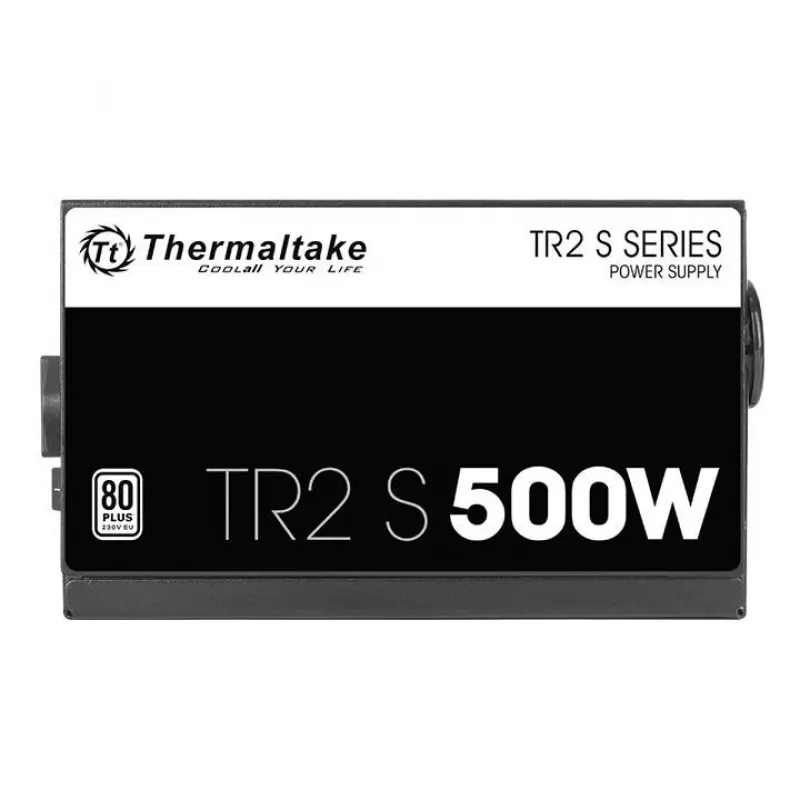

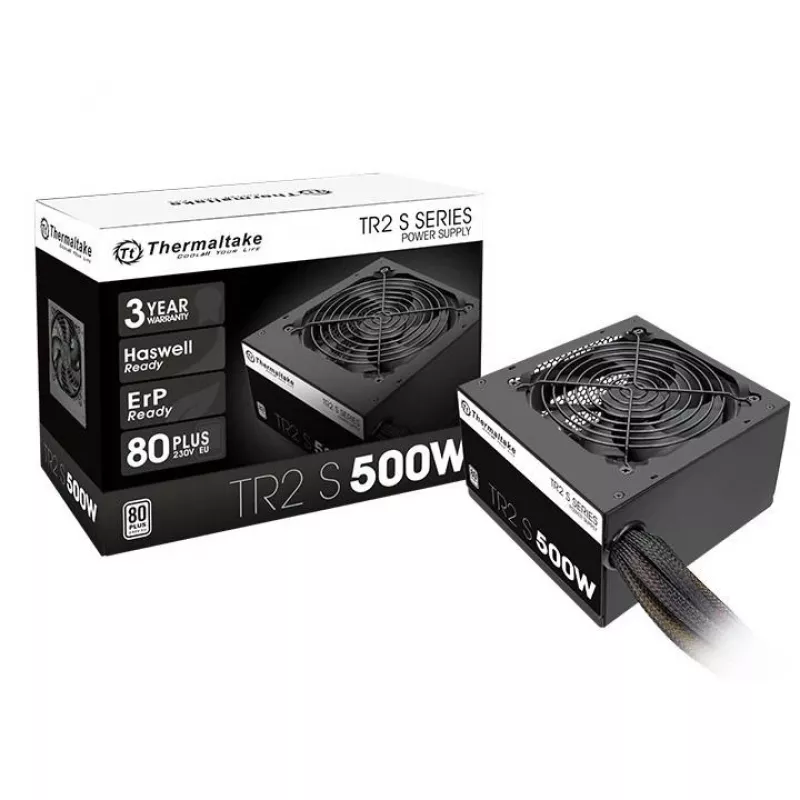

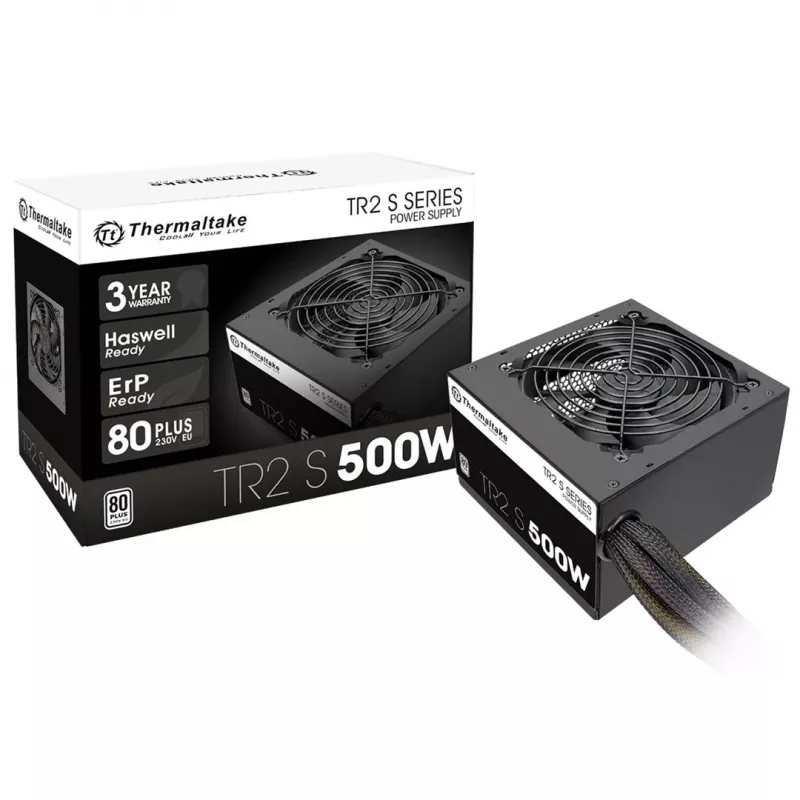

Fonte de alimentação Thermaltake TR2 S 500 W

Thermaltake TR2 S 500W is a non-modular power supply unit designed for mainstream PC builds, delivering 500 W total power with a 20+4 pin ATX connector. It supports 230 V AC input at 50–60 Hz and features active cooling via a 120 mm fan. The unit is 80 PLUS 230V Standard certified with up to 86% efficiency and includes safety certifications (CE, CB, TUV).

Advantages

The TR2 S 500W combines high-quality components and a single +12V rail design to provide stable and reliable power delivery under varied system loads. An ultra-quiet 120 mm fan ensures effective airflow with low acoustic output, while sleeved cables improve durability and cable management. Energy efficiency up to 86% reduces wasted power and heat.

Suitable for

• Mainstream desktop PC builds
• Office and home computers requiring stable 500 W supply
• Systems needing a single strong +12V rail for consistent performance

Key specifications

• Total power: 500 W
• Efficiency: up to 86% (80 PLUS 230V Standard certified)
• Motherboard connector: 20+4 pin ATX
• AC input: 230 V, 50–60 Hz

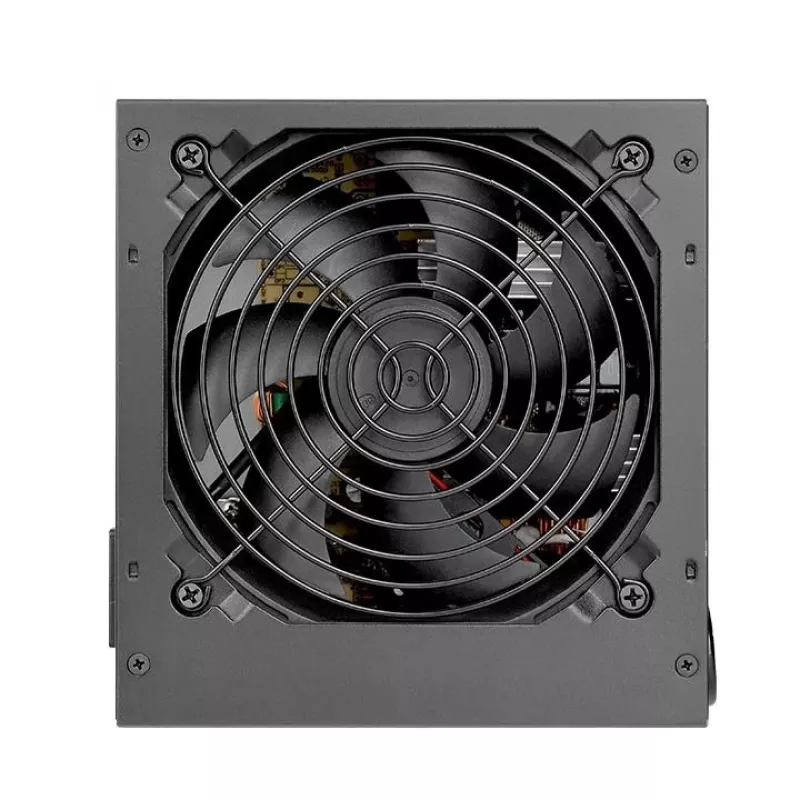

• Fan: 120 mm ultra-quiet cooling fan
• Modularity: non-modular
• Certifications: CE, CB, TUV

How to use

Install the PSU into your PC case following standard ATX mounting points and secure it with screws. Connect the 20+4 pin ATX cable to the motherboard and attach required peripheral connectors to drives and components. Ensure the AC power cable is connected to a properly rated 230 V outlet. Allow adequate airflow around the 120 mm fan and route sleeved cables to avoid obstructing intake or exhaust paths.

Recommendations

For reliable operation, use the TR2 S 500W in systems whose total component power draw stays comfortably below 500 W, maintain case airflow to keep the PSU fan working efficiently, and avoid prolonged operation in high-temperature environments.
