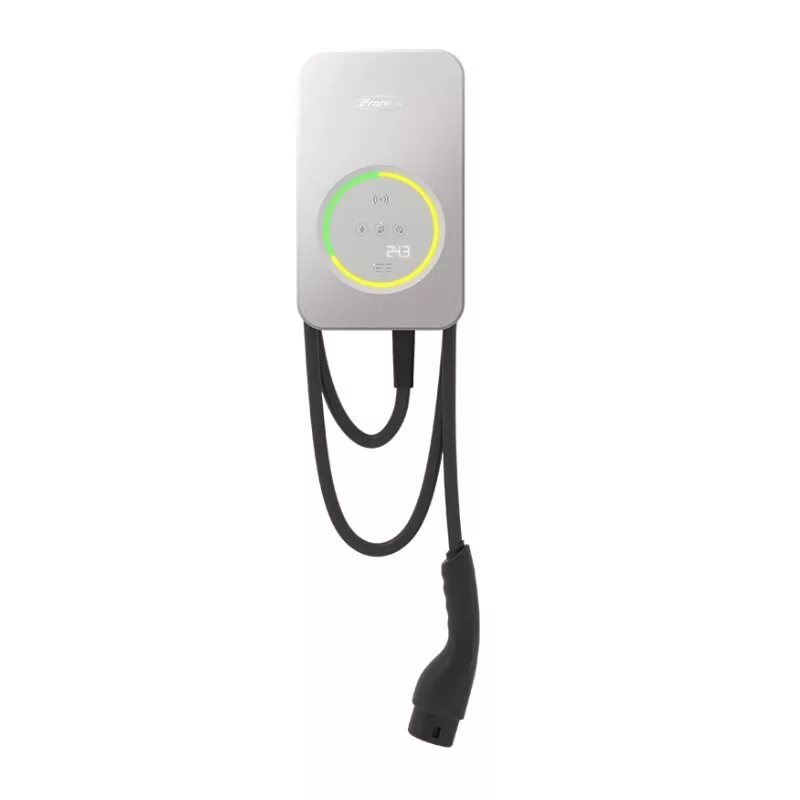

Fronius Wattpilot Flex Home 11 C6 - estação de carregamento portátil para VE 11 kW Type 2 com otimização fotovoltaica

The Fronius Wattpilot Flex Home 11 C6 is a portable electric vehicle charging station that delivers up to 11 kW of three-phase charging power, automatically adapting to single-phase or three-phase grids for maximum flexibility. Its standout capability is PV-optimized charging when paired with a Fronius inverter, allowing you to charge your EV with surplus solar energy.

Advantages

With an integrated energy meter and smart app control, the Wattpilot Flex Home 11 C6 ensures efficient and cost-effective charging. The robust IP55 and IK10 rated housing withstands harsh outdoor conditions, while the 5-meter Type 2 cable provides convenient reach. Built-in DC and AC fault current protection enhances safety, and the portable design with optional wall mount suits both home and on-the-go use.

Suitable for

• Homeowners with Fronius solar installations seeking to maximize self-consumption
• EV drivers needing a portable, weatherproof charging solution
• Users requiring flexible single-phase or three-phase charging without manual switching

Key specifications

• Max charging power: 11 kW (3-phase, 16 A)
• Auto-detection of 1-phase / 3-phase grids
• Vehicle connector: Type 2 (IEC 62196-2) with 5 m cable
• Grid connector: CEE 16A red (3-phase)
• Integrated RCD: 6 mA DC and 30 mA AC fault protection
• Connectivity: Wi-Fi, Bluetooth, Fronius Solar.web App
• Protection: IP55, IK10, UV-resistant plastic housing
• Operating temperature: -30°C to +50°C

Recommendations

For optimal solar charging, pair the Wattpilot Flex Home 11 C6 with a compatible Fronius inverter and configure the charging mode in the Solar.web app. When using outdoors, ensure the CEE socket is protected from direct rain and consider the optional wall bracket for permanent installation.
