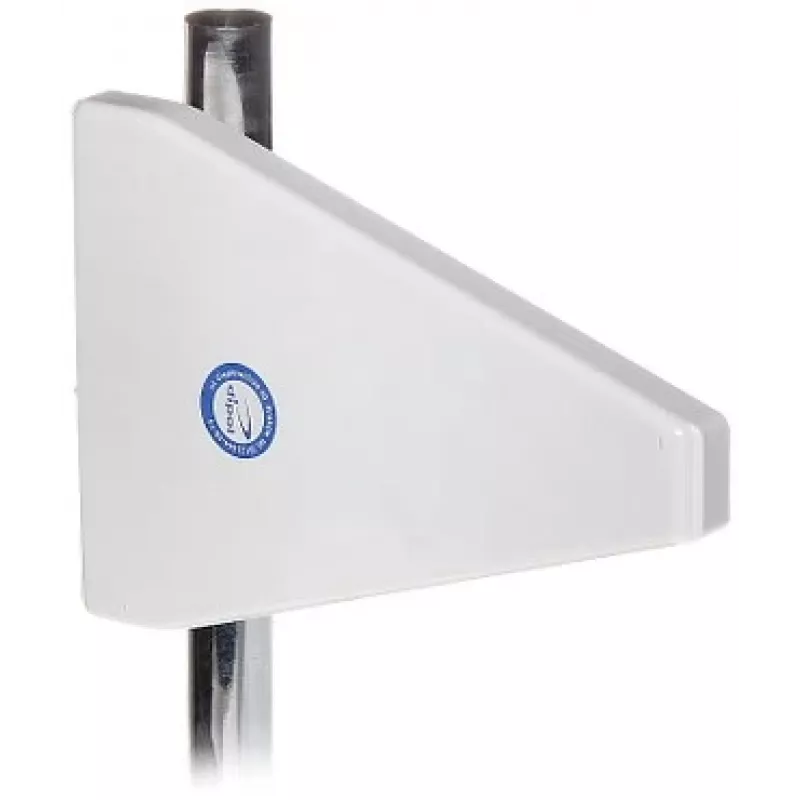

Antena log-periódica ATK-ALP/LTE+SMA/5 GSM/DCS 9/10 dBi 698-960/1710-2700 MHz ficha SMA cabo 5m

Log-periodic antenna delivering high gain of 9 dBi in 698-960 MHz and 10 dBi in 1710-2700 MHz, ideal for boosting 2G, 3G, and 4G signals in areas with weak reception. Its directional pattern and 5-meter SMA cable allow flexible placement for optimal coverage.

Advantages

Wide frequency coverage supports GSM, DCS, UMTS, and LTE networks. High gain and front-to-back ratio reduce interference, improving signal quality. Durable aluminum and ABS construction withstands harsh outdoor conditions from -40°C to +70°C. Includes pole mount for easy installation on masts or walls.

Suitable for

• Rural homes and offices with weak mobile signal
• Industrial sites requiring reliable cellular connectivity
• Outdoor installations for 4G LTE routers and modems
• Signal boosting for voice and data in remote areas

Key specifications

• Frequency: 698-960 MHz and 1710-2700 MHz
• Gain: 9 dBi / 10 dBi
• Connector: SMA Male
• Cable length: 5 m
• Impedance: 50 Ohm
• VSWR: < 2.0
• Polarization: Linear (Vertical or Horizontal)
• Max input power: 50 W
• Beamwidth: 70°/60° (low band), 60°/50° (high band)
• Front-to-back ratio: > 15 dB
• Material: Aluminum, ABS
• Operating temperature: -40°C to +70°C
• Mounting: Pole mount included

Recommendations

For best performance, mount the antenna outdoors as high as possible, pointed toward the nearest cell tower. Use low-loss coaxial cable if extending beyond the included 5 meters. Pair with a compatible LTE router or signal booster for enhanced coverage.
